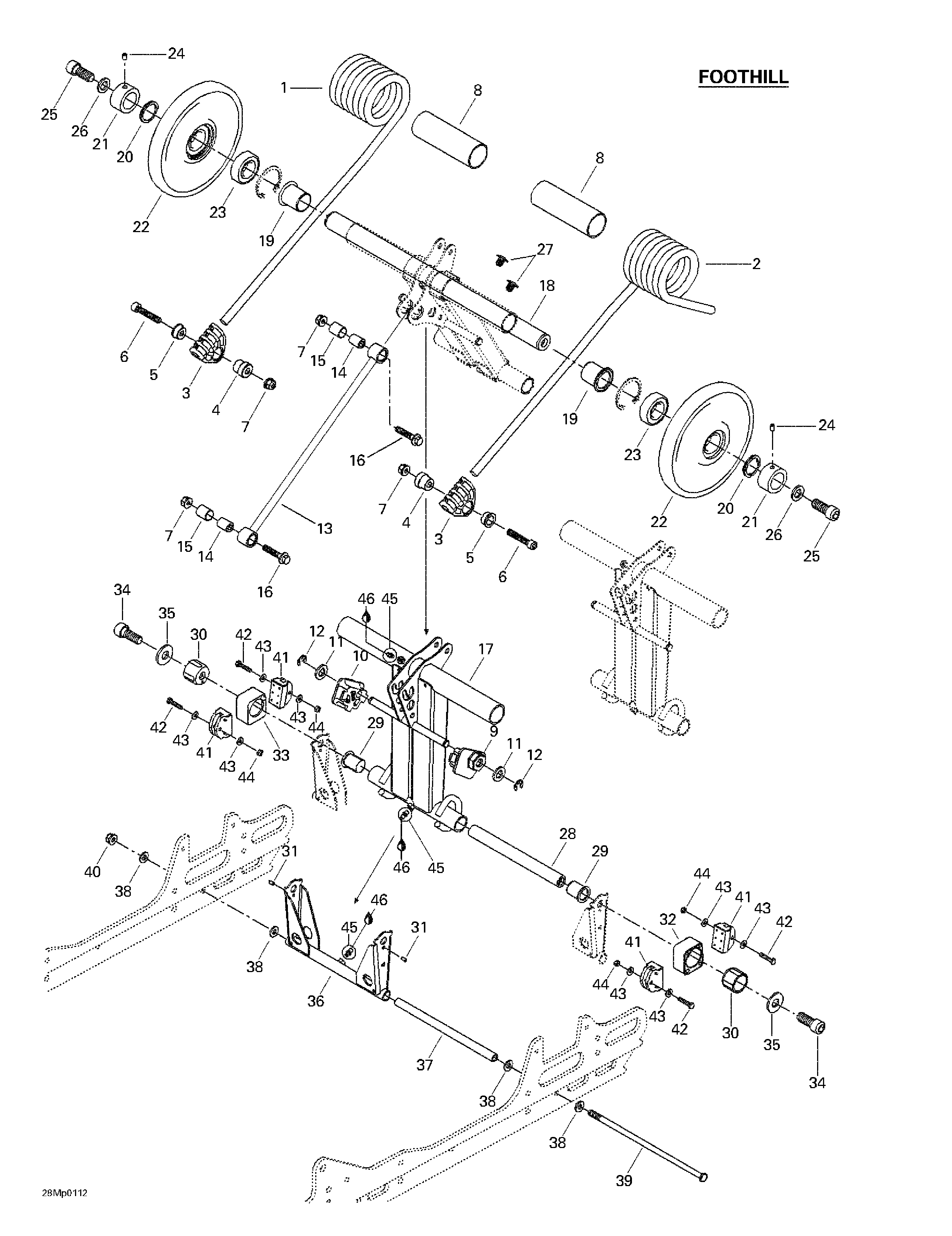

08- Rear Arm, Foothill для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189627 R.H. Spring. Summit 800.R.H. Spring. Summit 800.
-
2503189629 L.H. Spring. Summit 800.L.H. Spring. Summit 800.
-
3503188933 Spring Support. Summit 800.Spring Support. Summit 800.
-
4503188934 Axle-Spring Guide. Summit 800.Axle-Spring Guide. Summit 800.
-
5503188929 Cushion Retainer. Summit 800.Cushion Retainer. Summit 800.
-
6205084544 Socket Head Screw M8 x 45. Summit 800.Socket Head Screw M8 x 45. Summit 800.
-
7233281414 Elastic Flanged Stop Nut M8. Summit 800.Elastic Flanged Stop Nut M8. Summit 800.
-
8503189105 Plastic Bushing. Summit 800.Plastic Bushing. Summit 800.
-
9503189284 L.H. Cam Adjuster. Summit 800.L.H. Cam Adjuster. Summit 800.
-
10503189283 R.H. Cam Adjuster. Summit 800.R.H. Cam Adjuster. Summit 800.
-
11234021410 Flat Washer 12 mm. Summit 800.Flat Washer 12 mm. Summit 800.
-
12293370013 Circlip. Summit 800.Circlip. Summit 800.
-
13503189425 Throttle Rod. Summit 800.Throttle Rod. Summit 800.
-
14503189133 Axle Rod. Summit 800.Axle Rod. Summit 800.
-
15503189266 Cushion. Summit 800.Cushion. Summit 800.
-
16207684044 Hex. Flanged Screw M8 x 40. Summit 800.Hex. Flanged Screw M8 x 40. Summit 800.
-
17503189501 Rear Arm. Summit 800.Rear Arm. Summit 800.
-
18503189412 Upper Axle. Summit 800.Upper Axle. Summit 800.
-
19503189288 Cushion. Summit 800.Cushion. Summit 800.
-
20503189146 Axle Spring. Summit 800.Axle Spring. Summit 800.
-
21503189147 Retainer Ring. Summit 800.Retainer Ring. Summit 800.
-
22503189187 Wheel 165 Ass'y. Includes 22 - 23. Summit 800.Wheel 165 Ass'y. Includes 22 - 23. Summit 800.
-
23405404500 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
24206260844 Socket Head Set Screw M6 x 8. Summit 800.Socket Head Set Screw M6 x 8. Summit 800.
-
25205523544 Socket Head Screw M12 x 35. Summit 800.Socket Head Screw M12 x 35. Summit 800.
-
26503189276 Washer. Summit 800.Washer. Summit 800.
-
27414644300 Dart. Summit 800.Dart. Summit 800.
-
28503189413 Rear Lower Axle. Summit 800.Rear Lower Axle. Summit 800.
-
29503189286 Cushion. Summit 800.Cushion. Summit 800.
-
30503189488 Block Guide. Summit 800.Block Guide. Summit 800.
-
31250400005 Dowel Pin 4 x 8 mm. Summit 800.Dowel Pin 4 x 8 mm. Summit 800.
-
32503189152 L.H. Block. Summit 800.L.H. Block. Summit 800.
-
33503189170 R.H. Block. Summit 800.R.H. Block. Summit 800.
-
34205523544 Socket Head Screw M12 x 35 (Scotch Grip). Summit 800.Socket Head Screw M12 x 35 (Scotch Grip). Summit 800.
-
35503189276 Flat Washer 12 mm. Summit 800.Flat Washer 12 mm. Summit 800.
-
36503189430 Pivot Arm. Summit 800.Pivot Arm. Summit 800.
-
37503189156 Pivot Arm Axle. Summit 800.Pivot Arm Axle. Summit 800.
-
38503189157 Washer. Summit 800.Washer. Summit 800.
-
39732601198 Long Bolt M8. Summit 800.Long Bolt M8. Summit 800.
-
40233281414 Elastic Flanged Stop Nut M8. Summit 800.Elastic Flanged Stop Nut M8. Summit 800.
-
41503189608 Block Stopper. Summit 800.Block Stopper. Summit 800.
-
42207053044 Hex. Screw M5 x 30. Summit 800.Hex. Screw M5 x 30. Summit 800.
-
43250200016 Flat Washer 5 mm. Summit 800.Flat Washer 5 mm. Summit 800.
-
44232551414 Elastic Stop Nut M5. Summit 800.Elastic Stop Nut M5. Summit 800.
-
45408200700 Grease Fitting. Summit 800.Grease Fitting. Summit 800.
-
46219700417 Synthetic Grease, 400g. Summit 800.Synthetic Grease, 400g. Summit 800.
