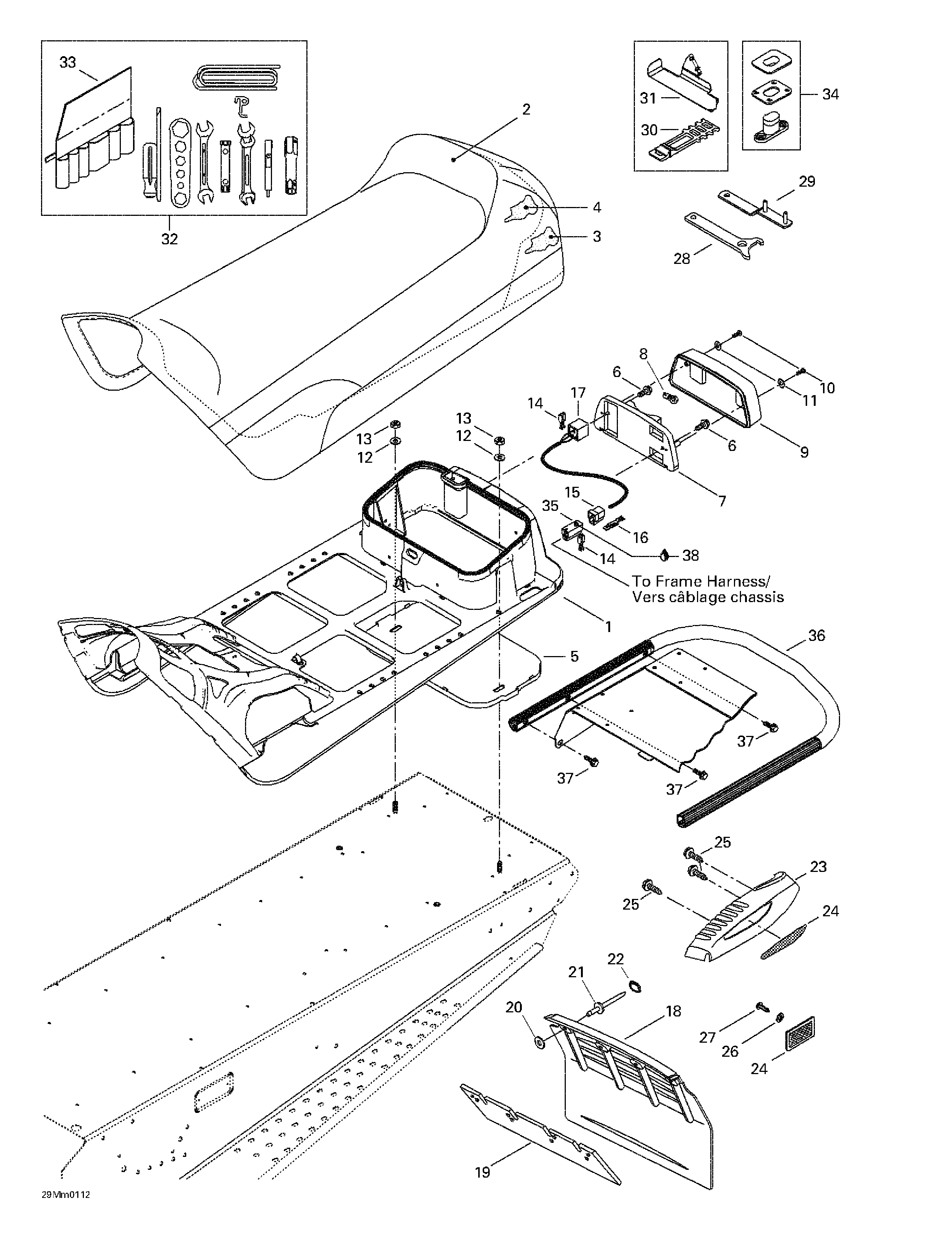

09- Seat And Accessories для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1572107600 Seat BaseSeat Base
-
2510003892 Seat Cover (STD, H.M., F.H.)Seat Cover (STD, H.M., F.H.)
-
510003901 Seat Cover (X, H.M.X). Summit 700. Summit 800.Seat Cover (X, H.M.X). Summit 700. Summit 800.
-
3510003840 Seat FoamSeat Foam
-
4510003841 Seat FoamSeat Foam
-
5572107601 Under ChestUnder Chest
-
6732603006 Hex. ScrewHex. Screw
-
7414513600 Light HousingLight Housing
-
8410504000 Tail Lamp BulbTail Lamp Bulb
-
9414513700 LensLens
-
10209632540 Tapping ScrewTapping Screw
-
11414516400 WasherWasher
-
12234082410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14561503100 Female TerminalFemale Terminal
-
15409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
16409206100 Male TerminalMale Terminal
-
17515175250 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
18572092100 Snow GuardSnow Guard
-
19572108200 ReinforcementReinforcement
-
20517225900 Flat WasherFlat Washer
-
21390908000 Pop Rivet 3/16 (Black)Pop Rivet 3/16 (Black)
-
22415073300 CapCap
-
23572097300 R.H. Moulding (STD, X, F.H.)R.H. Moulding (STD, X, F.H.)
-
572097400 L.H. Moulding (STD, X, F.H.)L.H. Moulding (STD, X, F.H.)
-
24414510100 Red Reflector (Can/US H.M., H.M.X). Summit 700. Summit 800.Red Reflector (Can/US H.M., H.M.X). Summit 700. Summit 800.
-
516000237 R.H. Reflector (STD, X, F.H.)R.H. Reflector (STD, X, F.H.)
-
516000238 LH Reflector (STD, X, F.H.)LH Reflector (STD, X, F.H.)
-
414510200 Amber Reflector (H.M.X, H.M.X Europe). Summit 800.Amber Reflector (H.M.X, H.M.X Europe). Summit 800.
-
25365901100 Self Tapping Screw #12 x 3/4''Self Tapping Screw #12 x 3/4''
-
26234451418 Serrated Lock Washer 5 mm. Summit 700. Summit 800.Serrated Lock Washer 5 mm. Summit 700. Summit 800.
-
27208651041 Screw M5 x 10. Summit 700. Summit 800.Screw M5 x 10. Summit 700. Summit 800.
-
28529032900 Wrench AdjusterWrench Adjuster
-
29520000126 Wrench AdjusterWrench Adjuster
-
30570069700 LatchLatch
-
31518321999 Tool Kit BracketTool Kit Bracket
-
32529035596 Tool Kit. Includes 32 - 33.Tool Kit. Includes 32 - 33.
-
33520000047 Tool BagTool Bag
-
34414728000 Seat BuckleSeat Buckle
-
35409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
36518322430 Rear Bumper (STD, X)Rear Bumper (STD, X)
-
518322438 Rear Bumper (Foothill). Summit 800.Rear Bumper (Foothill). Summit 800.
-
518322431 Rear Bumper (H.M., H.M.X). Summit 700. Summit 800.Rear Bumper (H.M., H.M.X). Summit 700. Summit 800.
-
37207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
207682044 Hex. Flanged Screw M8 x 20 (Foothill). Summit 800.Hex. Flanged Screw M8 x 20 (Foothill). Summit 800.
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
