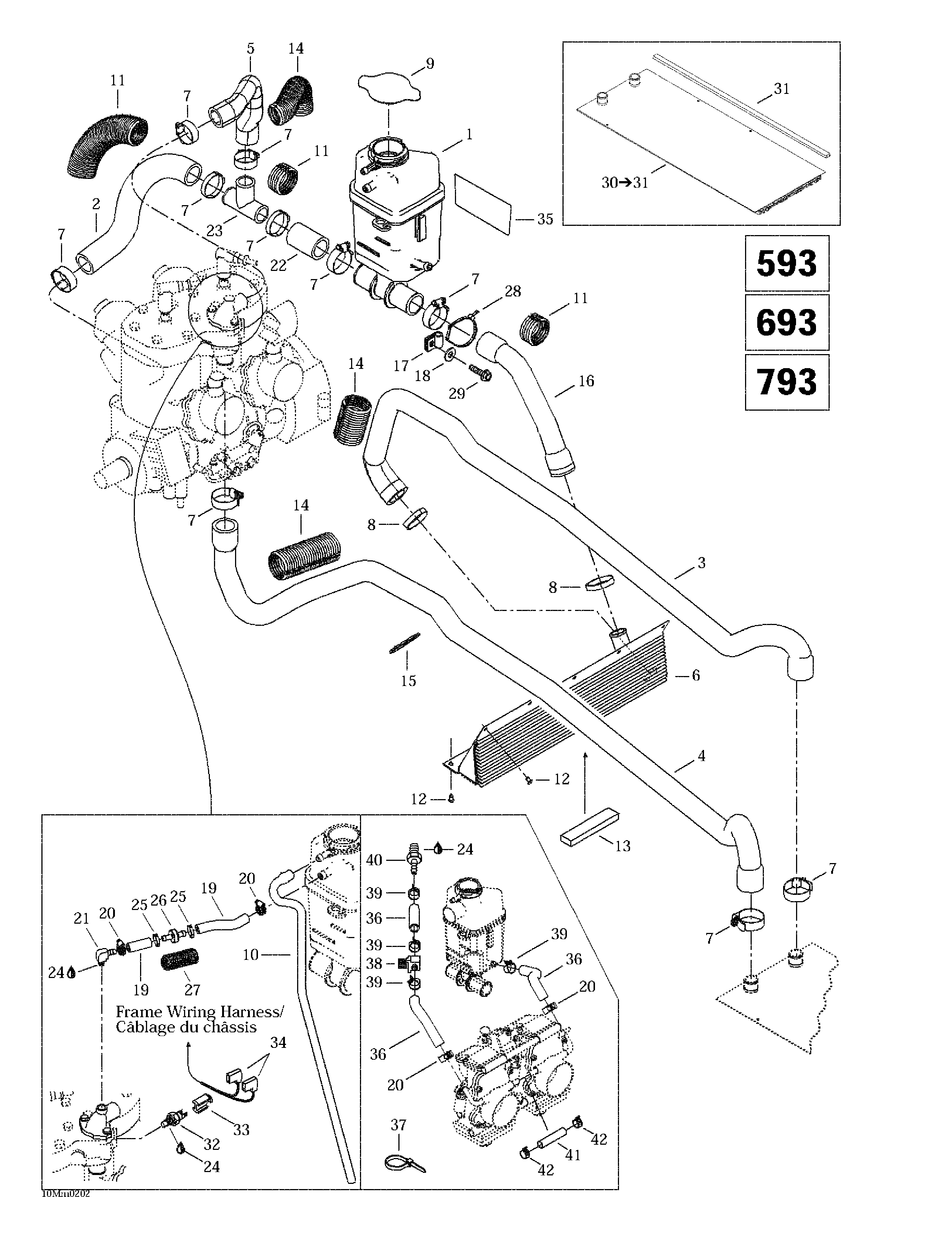

01- Cooling System (593) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1509000167 Tank Coolant. MX Z 600. MX Z 700. MX Z 800.Tank Coolant. MX Z 600. MX Z 700. MX Z 800.
-
2509000141 Engine Inlet Hose. MX Z 600. MX Z 700. MX Z 800.Engine Inlet Hose. MX Z 600. MX Z 700. MX Z 800.
-
3509000003 Radiator Inlet Hose. MX Z 600. MX Z 700. MX Z 800.Radiator Inlet Hose. MX Z 600. MX Z 700. MX Z 800.
-
4509000145 Radiator Outlet Hose. MX Z 600. MX Z 700. MX Z 800.Radiator Outlet Hose. MX Z 600. MX Z 700. MX Z 800.
-
5509000142 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
6509000146 Front Radiator. MX Z 600. MX Z 700. MX Z 800.Front Radiator. MX Z 600. MX Z 700. MX Z 800.
-
509000150 Front Radiator. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.Front Radiator. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
-
7408800400 Tridon Clamp. MX Z 600. MX Z 700. MX Z 800.Tridon Clamp. MX Z 600. MX Z 700. MX Z 800.
-
8509000045 Oetiker Clamp. MX Z 600. MX Z 700. MX Z 800.Oetiker Clamp. MX Z 600. MX Z 700. MX Z 800.
-
9414684700 Pressure Cap. MX Z 600. MX Z 700. MX Z 800.Pressure Cap. MX Z 600. MX Z 700. MX Z 800.
-
10415110000 Polyurethane Hose 5.2 mm. MX Z 600. MX Z 700. MX Z 800.Polyurethane Hose 5.2 mm. MX Z 600. MX Z 700. MX Z 800.
-
11415084700 Protective Shield. MX Z 600. MX Z 700. MX Z 800.Protective Shield. MX Z 600. MX Z 700. MX Z 800.
-
12390402200 Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.
-
13293200003 Seal. MX Z 600. MX Z 700. MX Z 800.Seal. MX Z 600. MX Z 700. MX Z 800.
-
14409902200 Tubing. MX Z 600. MX Z 700. MX Z 800.Tubing. MX Z 600. MX Z 700. MX Z 800.
-
15293750008 Tie Rap 350 mm. MX Z 600. MX Z 700. MX Z 800.Tie Rap 350 mm. MX Z 600. MX Z 700. MX Z 800.
-
16509000144 Radiator Outlet Hose. MX Z 600. MX Z 700. MX Z 800.Radiator Outlet Hose. MX Z 600. MX Z 700. MX Z 800.
-
17415052400 Attache. MX Z 600. MX Z 700. MX Z 800.Attache. MX Z 600. MX Z 700. MX Z 800.
-
18391301600 Washer. MX Z 600. MX Z 700. MX Z 800.Washer. MX Z 600. MX Z 700. MX Z 800.
-
19509000093 Hose 8 mm. MX Z 600. MX Z 700. MX Z 800.Hose 8 mm. MX Z 600. MX Z 700. MX Z 800.
-
20293650128 Tridon Clamp. MX Z 600. MX Z 700. MX Z 800.Tridon Clamp. MX Z 600. MX Z 700. MX Z 800.
-
21293700020 Elbow Fitting 90 Deg. MX Z 600. MX Z 700. MX Z 800.Elbow Fitting 90 Deg. MX Z 600. MX Z 700. MX Z 800.
-
22509000143 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
23414619900 T Fitting. MX Z 600. MX Z 700. MX Z 800.T Fitting. MX Z 600. MX Z 700. MX Z 800.
-
24293800018 Loctite 592, Pipe Sealant, 50 ml. MX Z 600. MX Z 700. MX Z 800.Loctite 592, Pipe Sealant, 50 ml. MX Z 600. MX Z 700. MX Z 800.
-
25293650053 Crimp Clamp. MX Z 600. MX Z 700. MX Z 800.Crimp Clamp. MX Z 600. MX Z 700. MX Z 800.
-
26509000153 Check Valve. MX Z 600. MX Z 700. MX Z 800.Check Valve. MX Z 600. MX Z 700. MX Z 800.
-
27415080000 Tubing 16 mm. MX Z 600. MX Z 700. MX Z 800.Tubing 16 mm. MX Z 600. MX Z 700. MX Z 800.
-
28509000165 Tie Rap. MX Z 600. MX Z 700. MX Z 800.Tie Rap. MX Z 600. MX Z 700. MX Z 800.
-
29210252040 Hex. Flanged Screw M5. MX Z 600. MX Z 700. MX Z 800.Hex. Flanged Screw M5. MX Z 600. MX Z 700. MX Z 800.
-
30518322901 Rear Radiator. Includes 30 - 31. MX Z 600. MX Z 700. MX Z 800.Rear Radiator. Includes 30 - 31. MX Z 600. MX Z 700. MX Z 800.
-
31518321655 Radiator Protector. MX Z 600. MX Z 700. MX Z 800.Radiator Protector. MX Z 600. MX Z 700. MX Z 800.
-
32512047000 Temperature Sensor. MX Z 600. MX Z 700. MX Z 800.Temperature Sensor. MX Z 600. MX Z 700. MX Z 800.
-
33515175297 Connector Plug. MX Z 600. MX Z 700. MX Z 800.Connector Plug. MX Z 600. MX Z 700. MX Z 800.
-
34409010300 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
35514053399 Reflective Sheet. MX Z 600. MX Z 700. MX Z 800.Reflective Sheet. MX Z 600. MX Z 700. MX Z 800.
-
36509000093 Hose 8 mm. MX Z 600. MX Z 700. MX Z 800.Hose 8 mm. MX Z 600. MX Z 700. MX Z 800.
-
37414115200 Tie Rap (With >). MX Z 600. MX Z 700. MX Z 800.Tie Rap (With >). MX Z 600. MX Z 700. MX Z 800.
-
38512059324 Valve 5/16''. MX Z 600. MX Z 700. MX Z 800.Valve 5/16''. MX Z 600. MX Z 700. MX Z 800.
-
39414655700 Spring Clamp. MX Z 600. MX Z 700. MX Z 800.Spring Clamp. MX Z 600. MX Z 700. MX Z 800.
-
40293710082 Straight Fitting. MX Z 600. MX Z 700. MX Z 800.Straight Fitting. MX Z 600. MX Z 700. MX Z 800.
-
41404161956 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
42404161957 Clip. MX Z 600. MX Z 700. MX Z 800.Clip. MX Z 600. MX Z 700. MX Z 800.
