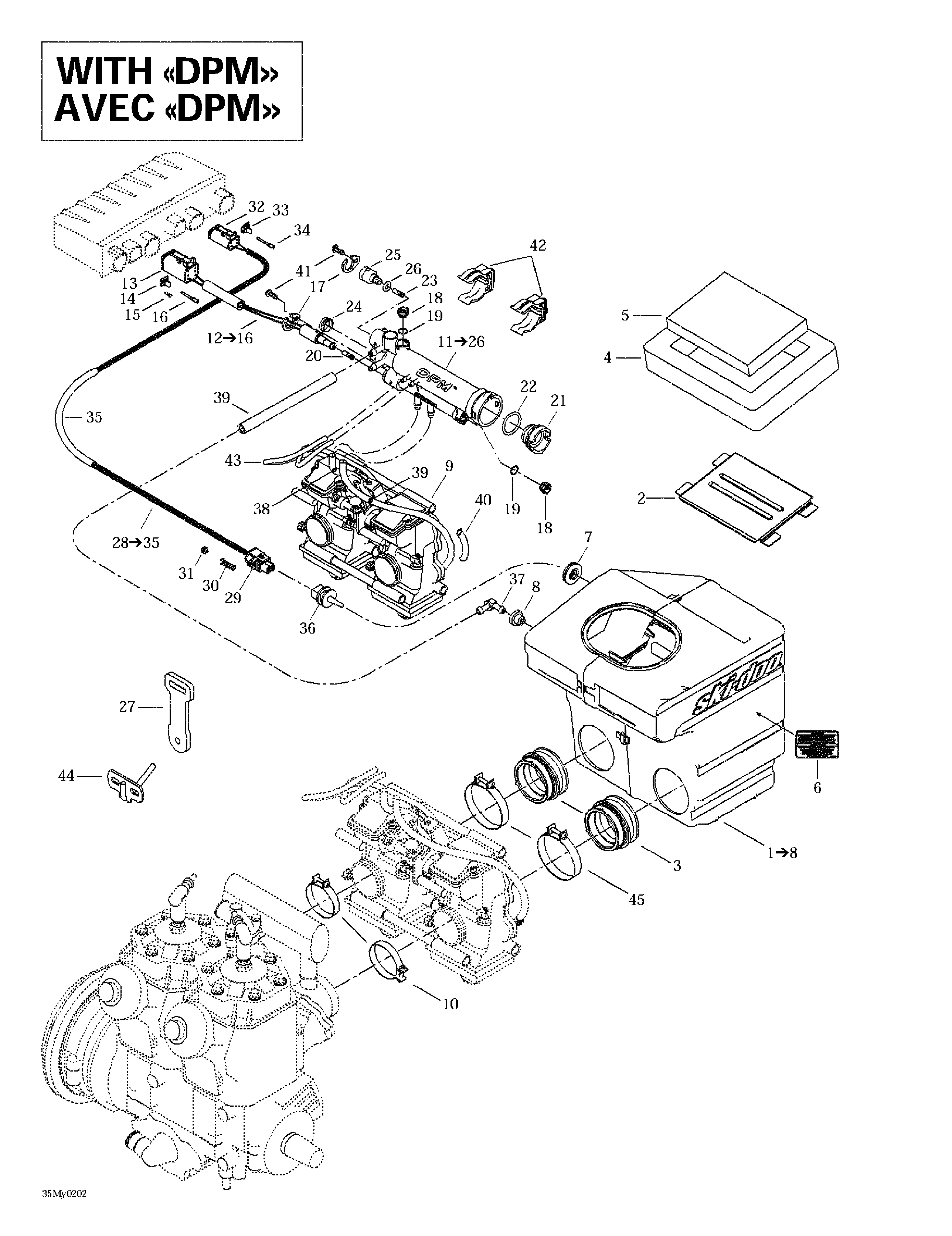

02- Air Intake System (with DPM) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1508000226 Air Intake Ass'y. Includes 1 - 8. MX Z 600.Air Intake Ass'y. Includes 1 - 8. MX Z 600.
-
508000227 Air Intake Ass'y. MX Z 700.Air Intake Ass'y. MX Z 700.
-
508000223 Air Intake Ass'y. MX Z 800.Air Intake Ass'y. MX Z 800.
-
2508000004 Intake Grill. MX Z 600. MX Z 700. MX Z 800.Intake Grill. MX Z 600. MX Z 700. MX Z 800.
-
3508000092 Air Intake Adaptor (40 mm). MX Z 600. MX Z 700. MX Z 800.Air Intake Adaptor (40 mm). MX Z 600. MX Z 700. MX Z 800.
-
4508000099 Lower Foam. MX Z 600. MX Z 700. MX Z 800.Lower Foam. MX Z 600. MX Z 700. MX Z 800.
-
5508000154 Air Filter. MX Z 600. MX Z 700. MX Z 800.Air Filter. MX Z 600. MX Z 700. MX Z 800.
-
6516001191 Instruction Label. MX Z 600. MX Z 700. MX Z 800.Instruction Label. MX Z 600. MX Z 700. MX Z 800.
-
7570065500 Grommet. MX Z 600. MX Z 700. MX Z 800.Grommet. MX Z 600. MX Z 700. MX Z 800.
-
8513032908 Grommet. MX Z 600. MX Z 700. MX Z 800.Grommet. MX Z 600. MX Z 700. MX Z 800.
-
9403138700 Carburetor Kit TM 40 B-154. MX Z 600.Carburetor Kit TM 40 B-154. MX Z 600.
-
403138699 Carburetor Kit TM 40 B-160. MX Z 700.Carburetor Kit TM 40 B-160. MX Z 700.
-
403138698 Carburetor Kit TM 40 B-166. MX Z 800.Carburetor Kit TM 40 B-166. MX Z 800.
-
10512059305 Clamp. MX Z 600. MX Z 700. MX Z 800.Clamp. MX Z 600. MX Z 700. MX Z 800.
-
11512059496 Pressure Manifold Ass'y. Includes 11 - 26. MX Z 600.Pressure Manifold Ass'y. Includes 11 - 26. MX Z 600.
-
512059497 Pressure Manifold Ass'y. MX Z 700. MX Z 800.Pressure Manifold Ass'y. MX Z 700. MX Z 800.
-
12515175693 Pressure Manifold Harness. Includes 12 - 16. MX Z 600. MX Z 700. MX Z 800.Pressure Manifold Harness. Includes 12 - 16. MX Z 600. MX Z 700. MX Z 800.
-
13409015400 Female Terminal Housing (6 circuits). MX Z 600. MX Z 700. MX Z 800.Female Terminal Housing (6 circuits). MX Z 600. MX Z 700. MX Z 800.
-
14409014900 (Female) Secondary Lock (6 Circuits) (Deutsch). MX Z 600. MX Z 700. MX Z 800.(Female) Secondary Lock (6 Circuits) (Deutsch). MX Z 600. MX Z 700. MX Z 800.
-
15515175303 Plug. MX Z 600. MX Z 700. MX Z 800.Plug. MX Z 600. MX Z 700. MX Z 800.
-
16278001665 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
17415061600 Solenoid Lock. MX Z 600. MX Z 700. MX Z 800.Solenoid Lock. MX Z 600. MX Z 700. MX Z 800.
-
18512058921 Cap. MX Z 600. MX Z 700. MX Z 800.Cap. MX Z 600. MX Z 700. MX Z 800.
-
19512058925 O-Ring. MX Z 600. MX Z 700. MX Z 800.O-Ring. MX Z 600. MX Z 700. MX Z 800.
-
20404161825 Starter Jet. MX Z 600. MX Z 700. MX Z 800.Starter Jet. MX Z 600. MX Z 700. MX Z 800.
-
21512058949 Cap. MX Z 600. MX Z 700. MX Z 800.Cap. MX Z 600. MX Z 700. MX Z 800.
-
22512058950 O-Ring. MX Z 600. MX Z 700. MX Z 800.O-Ring. MX Z 600. MX Z 700. MX Z 800.
-
24512058982 Cap. MX Z 600. MX Z 700. MX Z 800.Cap. MX Z 600. MX Z 700. MX Z 800.
-
25512059557 Cap. MX Z 600. MX Z 700. MX Z 800.Cap. MX Z 600. MX Z 700. MX Z 800.
-
26512059558 O-Ring. MX Z 600. MX Z 700. MX Z 800.O-Ring. MX Z 600. MX Z 700. MX Z 800.
-
27512059372 Carburetor Latch. MX Z 600. MX Z 700. MX Z 800.Carburetor Latch. MX Z 600. MX Z 700. MX Z 800.
-
28515175703 Temperature Harness. Includes 28 - 35. MX Z 600. MX Z 700. MX Z 800.Temperature Harness. Includes 28 - 35. MX Z 600. MX Z 700. MX Z 800.
-
29515175588 Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.
-
30278000998 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
31278000999 Seal. MX Z 600. MX Z 700. MX Z 800.Seal. MX Z 600. MX Z 700. MX Z 800.
-
32515175670 Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.
-
33515175706 Female Lock (2 circuits). MX Z 600. MX Z 700. MX Z 800.Female Lock (2 circuits). MX Z 600. MX Z 700. MX Z 800.
-
34278000632 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
35515175332 Tubing. MX Z 600. MX Z 700. MX Z 800.Tubing. MX Z 600. MX Z 700. MX Z 800.
-
36270600000 Air Sensor. MX Z 600. MX Z 700. MX Z 800.Air Sensor. MX Z 600. MX Z 700. MX Z 800.
-
37414580600 Elbow Male Connector. MX Z 600. MX Z 700. MX Z 800.Elbow Male Connector. MX Z 600. MX Z 700. MX Z 800.
-
38512059524 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
39512059523 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
40409901700 Tubing. MX Z 600. MX Z 700. MX Z 800.Tubing. MX Z 600. MX Z 700. MX Z 800.
-
41241140060 Screw K40 x 10. MX Z 600. MX Z 700. MX Z 800.Screw K40 x 10. MX Z 600. MX Z 700. MX Z 800.
-
42512058919 Support. MX Z 600. MX Z 700. MX Z 800.Support. MX Z 600. MX Z 700. MX Z 800.
-
43404161904 Hose. MX Z 600. MX Z 700. MX Z 800.Hose. MX Z 600. MX Z 700. MX Z 800.
-
44512059504 Carburetor Bracket. MX Z 600. MX Z 700. MX Z 800.Carburetor Bracket. MX Z 600. MX Z 700. MX Z 800.
-
45508000162 Clamp. MX Z 600. MX Z 700. MX Z 800.Clamp. MX Z 600. MX Z 700. MX Z 800.
