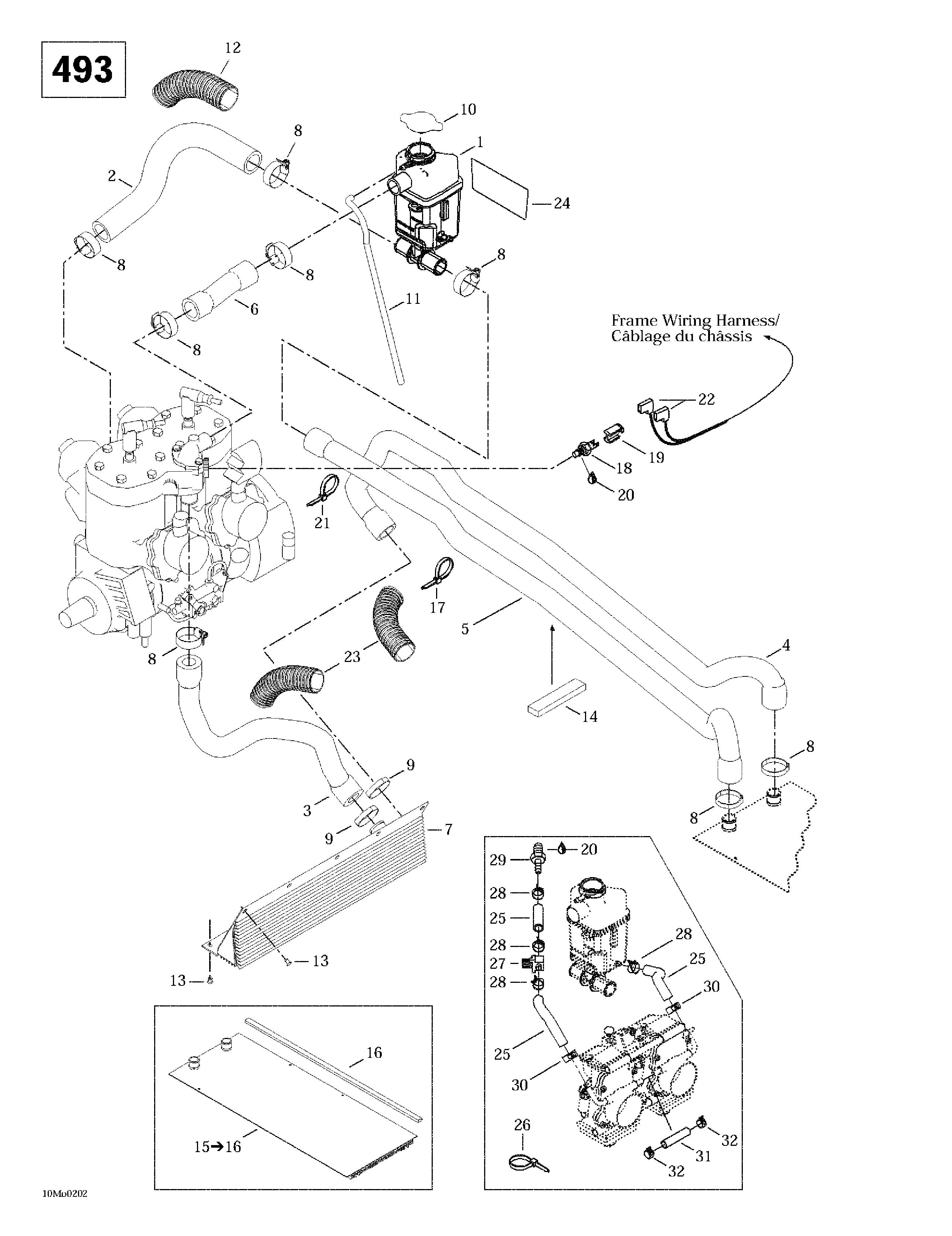

01- Cooling System для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1509000133 Tank Coolant. MX Z 500.Tank Coolant. MX Z 500.
-
2509000135 Engine Inlet Hose. MX Z 500.Engine Inlet Hose. MX Z 500.
-
3509000046 Engine Outlet Hose. MX Z 500.Engine Outlet Hose. MX Z 500.
-
4509000003 Radiator Inlet Hose. MX Z 500.Radiator Inlet Hose. MX Z 500.
-
5509000004 Radiator Outlet Hose. MX Z 500.Radiator Outlet Hose. MX Z 500.
-
6509000112 Deviation Hose. MX Z 500.Deviation Hose. MX Z 500.
-
7517297100 Front Radiator. MX Z 500.Front Radiator. MX Z 500.
-
8408800400 Tridon Gear Clamp. MX Z 500.Tridon Gear Clamp. MX Z 500.
-
9509000045 Oetiker Gear Clamp. MX Z 500.Oetiker Gear Clamp. MX Z 500.
-
10414684700 Pressure Cap. MX Z 500.Pressure Cap. MX Z 500.
-
11415110000 Polyurethane Hose 5.2 mm. MX Z 500.Polyurethane Hose 5.2 mm. MX Z 500.
-
12415084700 Protective Shield. MX Z 500.Protective Shield. MX Z 500.
-
13390402200 Pop Rivet 3/16. MX Z 500.Pop Rivet 3/16. MX Z 500.
-
14293200003 Seal. MX Z 500.Seal. MX Z 500.
-
15518322901 Rear Radiator. Includes 15 - 16. MX Z 500.Rear Radiator. Includes 15 - 16. MX Z 500.
-
16518321655 Radiator Protector. MX Z 500.Radiator Protector. MX Z 500.
-
17293750008 Tie Rap 350 mm. MX Z 500.Tie Rap 350 mm. MX Z 500.
-
18512047000 Temperature Sensor. MX Z 500.Temperature Sensor. MX Z 500.
-
19515175297 Connector Plug. MX Z 500.Connector Plug. MX Z 500.
-
20293800018 Loctite 592, Pipe Sealant, 50 ml. MX Z 500.Loctite 592, Pipe Sealant, 50 ml. MX Z 500.
-
21293750002 Tie Rap 130 mm. MX Z 500.Tie Rap 130 mm. MX Z 500.
-
22409010300 Female Terminal. MX Z 500.Female Terminal. MX Z 500.
-
23409902200 Tubing. MX Z 500.Tubing. MX Z 500.
-
24514053399 Reflective Sheet. MX Z 500.Reflective Sheet. MX Z 500.
-
25509000093 Hose 8 mm. MX Z 500.Hose 8 mm. MX Z 500.
-
26414115200 Tie Rap (With >). MX Z 500.Tie Rap (With >). MX Z 500.
-
27512059324 Valve 5/16''. MX Z 500.Valve 5/16''. MX Z 500.
-
28414655700 Spring Clamp. MX Z 500.Spring Clamp. MX Z 500.
-
29293710082 Straight Fitting. MX Z 500.Straight Fitting. MX Z 500.
-
30293650038 Tridon Clamp. MX Z 500.Tridon Clamp. MX Z 500.
-
31404161956 Hose. MX Z 500.Hose. MX Z 500.
-
32404161957 Clip. MX Z 500.Clip. MX Z 500.
