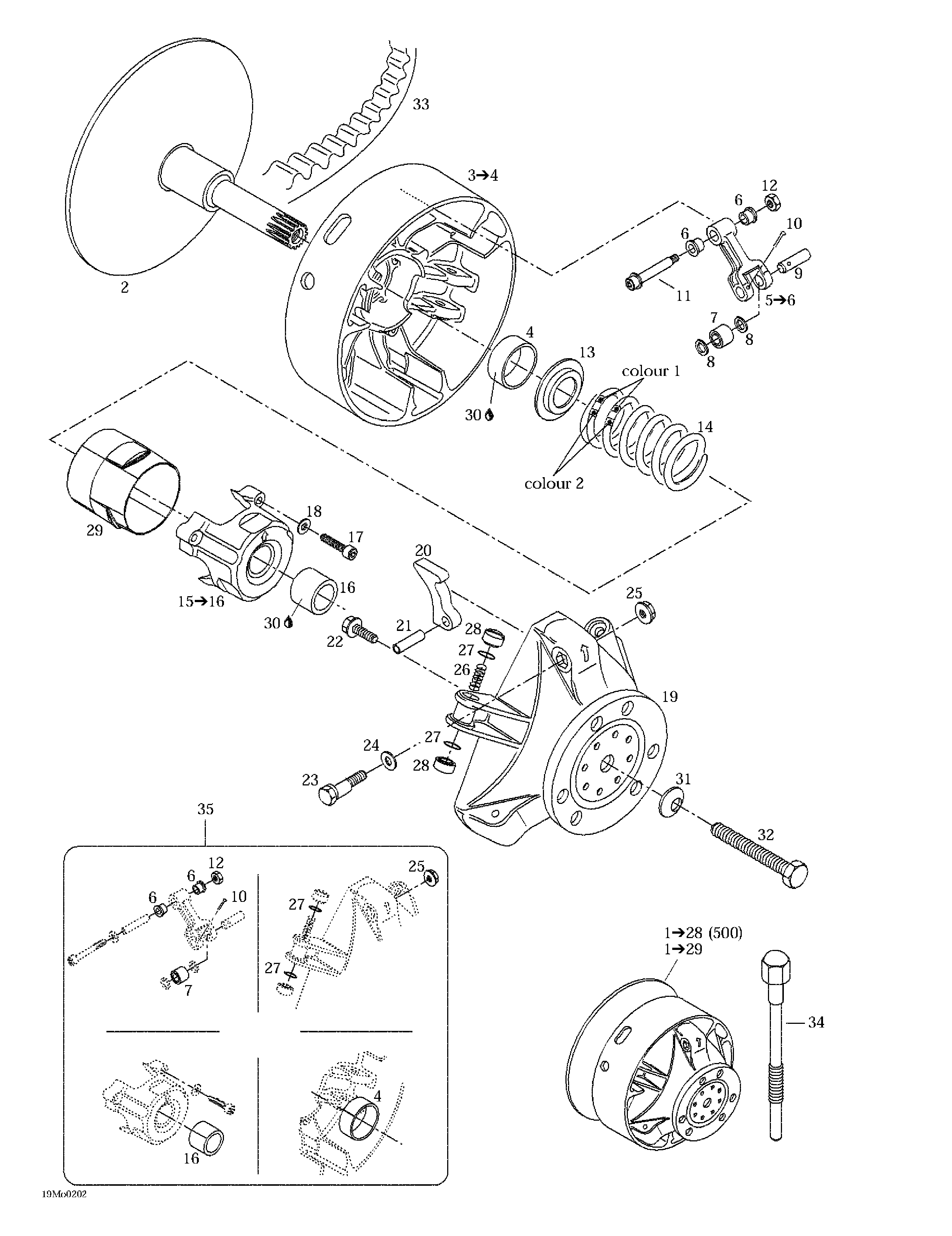

05- Drive Pulley для BRP Ski-Doo MX Z 500/600/700/800 - 2002

№

Артикул

Название
2

417222247 Fixed Flange. MX Z 500.

Fixed Flange. MX Z 500.

0 ₽
417222411 Fixed Flange. MX Z 600. MX Z 700.

Fixed Flange. MX Z 600. MX Z 700.

44 510 ₽
417222272 Fixed Flange. MX Z 800.

Fixed Flange. MX Z 800.

0 ₽
3

417222241 Sliding Flange Ass'y. Includes 3 - 4. MX Z 500. MX Z 600. MX Z 700.

Sliding Flange Ass'y. Includes 3 - 4. MX Z 500. MX Z 600. MX Z 700.

31 280 ₽
417222027 Sliding Flange Ass'y. MX Z 800.

Sliding Flange Ass'y. MX Z 800.

0 ₽
4

417004201 Bushing

Bushing

2 340 ₽
5

417222383 Lever Ass'y. Includes 5 - 6.

Lever Ass'y. Includes 5 - 6.

6 630 ₽
6

417004305 Bushing

Bushing

3 180 ₽
7

417003900 Roller Ass'y

Roller Ass'y

0 ₽
8

417004302 Stopper Washer

Stopper Washer

3 010 ₽
9

417004308 Pin

Pin

5 010 ₽
10

732958001 Cotter Pin

Cotter Pin

80 ₽
11

417004800 Screw Ass'y. MX Z 500. MX Z 600. MX Z 700.

Screw Ass'y. MX Z 500. MX Z 600. MX Z 700.

2 660 ₽
417222028 Screw Ass'y. MX Z 800.

Screw Ass'y. MX Z 800.

1 550 ₽
12

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
13

417222044 Spring Seat

Spring Seat

0 ₽
14

414756900 Spring (Green/Pink). (500 RER) MX Z 500.

Spring (Green/Pink). (500 RER) MX Z 500.

3 680 ₽
417222371 Spring (Green/White). MX Z 500. MX Z 600.

Spring (Green/White). MX Z 500. MX Z 600.

3 680 ₽
414817900 Spring (Violet/Violet). (600 RENEGADE) MX Z 600.

Spring (Violet/Violet). (600 RENEGADE) MX Z 600.

3 500 ₽
414762800 Spring (Green/Violet). (600 RER / 700 / 700 RER) MX Z 600. MX Z 700.

Spring (Green/Violet). (600 RER / 700 / 700 RER) MX Z 600. MX Z 700.

3 680 ₽
415015300 Spring (Violet/Yellow). (700-800 RENEGADE). (800 / 800 RER) MX Z 700. MX Z 800.

Spring (Violet/Yellow). (700-800 RENEGADE). (800 / 800 RER) MX Z 700. MX Z 800.

3 680 ₽
15

417222304 Spring Cover Ass'y. Includes 15 - 16.

Spring Cover Ass'y. Includes 15 - 16.

7 690 ₽
16

417004501 Bushing

Bushing

2 260 ₽
17

250000038 Socket Head Screw M6 x 40

Socket Head Screw M6 x 40

680 ₽
18

420245370 Washer

Washer

90 ₽
19

417222081 Governor Cup

Governor Cup

48 190 ₽
20

417222376 Ramp 283. MX Z 500.

Ramp 283. MX Z 500.

0 ₽
417222372 Ramp 299. (600 / 600 RER). (600 RENEGADE / 700 RENEGADE) MX Z 600. MX Z 700.

Ramp 299. (600 / 600 RER). (600 RENEGADE / 700 RENEGADE) MX Z 600. MX Z 700.

3 190 ₽
417222381 Ramp 300. MX Z 700.

Ramp 300. MX Z 700.

0 ₽
417222474 Ramp 301. MX Z 800.

Ramp 301. MX Z 800.

3 180 ₽
21

732804009 Rolled Pin M8 x 24

Rolled Pin M8 x 24

280 ₽
22

210361890 Hex. Screw M6 x 18

Hex. Screw M6 x 18

990 ₽
23

417005500 Calibration Screw

Calibration Screw

0 ₽
24

417005600 Washer

Washer

1 540 ₽
25

233061414 Hex. Flanged Nut M6

Hex. Flanged Nut M6

600 ₽
26

417005700 Spring

Spring

1 560 ₽
27

732401030 O-Ring

O-Ring

330 ₽
28

417005800 Slider Shoe. MX Z 500. MX Z 600. MX Z 700.

Slider Shoe. MX Z 500. MX Z 600. MX Z 700.

0 ₽
417222362 Slider Shoe. MX Z 800.

Slider Shoe. MX Z 800.

0 ₽
29

417222176 Guard. MX Z 600. MX Z 700. MX Z 800.

Guard. MX Z 600. MX Z 700. MX Z 800.

1 010 ₽
30

413703100 Loctite 609, 10 c.c

Loctite 609, 10 c.c

2 760 ₽
31

250200006 Conical Spring Washer

Conical Spring Washer

2 570 ₽
32

417120000 Drive Pulley Bolt

Drive Pulley Bolt

21 980 ₽
33

414860700 Drive Belt. MX Z 500. MX Z 600.

Drive Belt. MX Z 500. MX Z 600.

37 170 ₽
417300127 Drive Belt. (700 / 800). (600-700-800 RENEGADE) MX Z 600. MX Z 700. MX Z 800.

Drive Belt. (700 / 800). (600-700-800 RENEGADE) MX Z 600. MX Z 700. MX Z 800.

11 620 ₽
34

529022400 Puller Inner Half

Puller Inner Half

8 070 ₽
35

417006100 Clutch Repair Kit

Clutch Repair Kit

16 970 ₽
