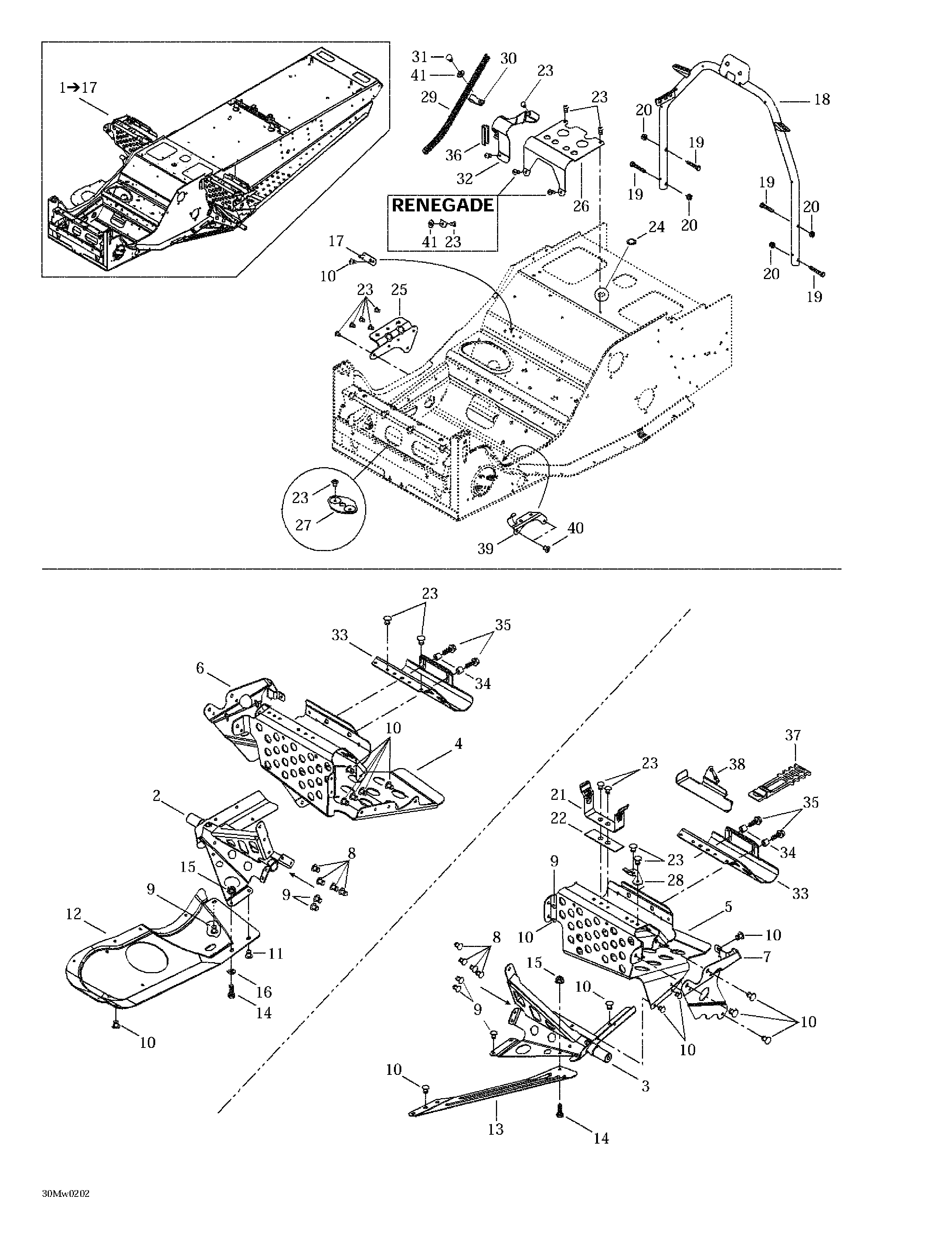

09- Frame - Front для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1518323011 Frame. Includes 1 - 17. MX Z 500. MX Z 600.Frame. Includes 1 - 17. MX Z 500. MX Z 600.
-
518323010 Frame. MX Z 700. MX Z 800.Frame. MX Z 700. MX Z 800.
-
518323016 Frame (RENEGADE). MX Z 600.Frame (RENEGADE). MX Z 600.
-
518323015 Frame (RENEGADE). MX Z 700. MX Z 800.Frame (RENEGADE). MX Z 700. MX Z 800.
-
2518320506 R.H. Footrest SupportR.H. Footrest Support
-
3518320507 L.H. Footrest SupportL.H. Footrest Support
-
4518322393 R.H. FootrestR.H. Footrest
-
5518322394 L.H. FootrestL.H. Footrest
-
6518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
7518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
8390909200 Avex RivetAvex Rivet
-
9390909100 Avex RivetAvex Rivet
-
10390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
11390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12518319760 R.H. Bottom Pan Plate. MX Z 500. MX Z 600.R.H. Bottom Pan Plate. MX Z 500. MX Z 600.
-
518322636 R.H. Bottom Pan Plate. MX Z 700. MX Z 800.R.H. Bottom Pan Plate. MX Z 700. MX Z 800.
-
13518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
14207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
15233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
16391301700 WasherWasher
-
17518322391 Double BracketDouble Bracket
-
18518322755 Handle SupportHandle Support
-
19207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
20233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21518202100 Pulley Guard BracketPulley Guard Bracket
-
22518207500 ReinforcementReinforcement
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24414859400 CapCap
-
25518322635 Muffler SupportMuffler Support
-
26518310400 Air Intake SupportAir Intake Support
-
27518201307 Plate BracketPlate Bracket
-
28518322031 Tool Kit BracketTool Kit Bracket
-
29518321569 Rope GuideRope Guide
-
30518321570 ClipClip
-
31390406500 Pop Rivet 3/16Pop Rivet 3/16
-
32518322699 Hose SupportHose Support
-
33518321571 Toe Hold (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.Toe Hold (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.
-
34415107300 Insert (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.Insert (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.
-
35207661644 Hex. Flanged Screw M6 x16. (ADRENALINE) MX Z 600. MX Z 700. MX Z 800.Hex. Flanged Screw M6 x16. (ADRENALINE) MX Z 600. MX Z 700. MX Z 800.
-
36271000110 TrimTrim
-
37570069700 LatchLatch
-
38518321999 Tool Kit SupportTool Kit Support
-
39515175254 Cable SupportCable Support
-
40390402300 Pop Rivet 3/16Pop Rivet 3/16
-
41517225900 Flat Washer (RENEGADE). MX Z 600. MX Z 700. MX Z 800.Flat Washer (RENEGADE). MX Z 600. MX Z 700. MX Z 800.
