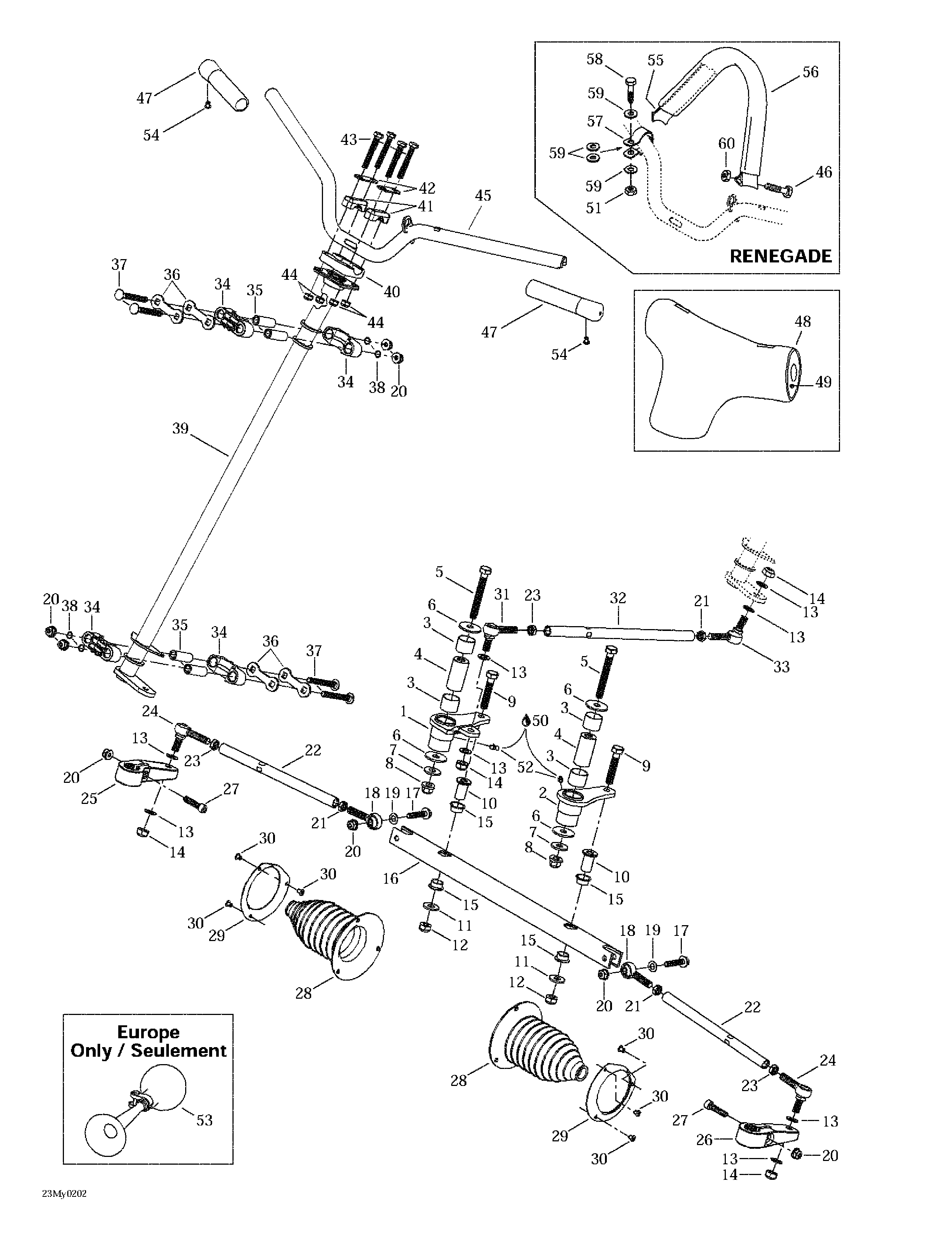

07- Steering System для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1506151506 R.H. Swivel ArmR.H. Swivel Arm
-
2506151507 L.H. Swivel ArmL.H. Swivel Arm
-
3506149900 Swivel BushingSwivel Bushing
-
4506150100 Swivel PivotSwivel Pivot
-
5207008086 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
10506147300 Pivot-BarPivot-Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506150200 Swivel BushingSwivel Bushing
-
16506147000 Swivel BarSwivel Bar
-
17207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
18506151496 L.H. Ball JointL.H. Ball Joint
-
19506151252 WasherWasher
-
20233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
21250100016 L.H. Jam Nut M10L.H. Jam Nut M10
-
22506151190 Tie-RodTie-Rod
-
506151450 Tie-Rod. (Renegade) MX Z 600. MX Z 700. MX Z 800.Tie-Rod. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
23732610010 R.H. Jam Nut M10R.H. Jam Nut M10
-
24506151491 Ball JointBall Joint
-
25506145800 R.H. Steering ArmR.H. Steering Arm
-
506151451 R.H. Steering Arm. (Renegade) MX Z 600. MX Z 700. MX Z 800.R.H. Steering Arm. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
26506145900 L.H. Steering ArmL.H. Steering Arm
-
506151452 L.H. Steering Arm. (Renegade) MX Z 600. MX Z 700. MX Z 800.L.H. Steering Arm. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
27205083544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
28570070500 Tie-Rod CapTie-Rod Cap
-
29506151100 Retainer RingRetainer Ring
-
30390402300 Pop RivetPop Rivet
-
31506151492 R.H. Ball JointR.H. Ball Joint
-
32506150300 Inside Tie-RodInside Tie-Rod
-
33506151495 L.H. Ball JointL.H. Ball Joint
-
34506150400 Half HousingHalf Housing
-
35506150500 Housing BushingHousing Bushing
-
36506150600 Stopper PlateStopper Plate
-
37207787044 Carriage Bolt M8 x 70Carriage Bolt M8 x 70
-
38506151140 O-RingO-Ring
-
39506147100 Main TubeMain Tube
-
506151222 Main Tube. (Renegade) MX Z 600. MX Z 700. MX Z 800.Main Tube. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
40277000142 Steering ClampSteering Clamp
-
41414491600 Steering SupportSteering Support
-
42506151196 ReinforcementReinforcement
-
43207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
44232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
45506151478 Handle BarHandle Bar
-
506151391 Handle Bar. (Renegade) MX Z 600. MX Z 700. MX Z 800.Handle Bar. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
46207063544 Hex. Flanged Screw M6 X 35. (Renegade) MX Z 600. MX Z 700. MX Z 800.Hex. Flanged Screw M6 X 35. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
47M5340464 Handle GripHandle Grip
-
48506151263 CoverCover
-
506151265 Cover. (Renegade) MX Z 600. MX Z 700. MX Z 800.Cover. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
49506151262 FoamFoam
-
506151264 Foam. (Renegade) MX Z 600. MX Z 700. MX Z 800.Foam. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
50219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
51232561414 Elastic Stop Nut M6. (Renegade) MX Z 600. MX Z 700. MX Z 800.Elastic Stop Nut M6. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
52408200700 Grease FittingGrease Fitting
-
53415040700 Horn (Europe-ADR)Horn (Europe-ADR)
-
54390403600 Pop RivetPop Rivet
-
55415095500 Tie-Down. (Renegade) MX Z 600. MX Z 700. MX Z 800.Tie-Down. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
56415090200 Grip. (Renegade) MX Z 600. MX Z 700. MX Z 800.Grip. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
57506148200 Support Plate. (Renegade) MX Z 600. MX Z 700. MX Z 800.Support Plate. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
58207162544 Hex. Screw M6 x 25. (Renegade) MX Z 600. MX Z 700. MX Z 800.Hex. Screw M6 x 25. (Renegade) MX Z 600. MX Z 700. MX Z 800.
-
59234061410 Flat Washer 6 mm. (Renegade) MX Z 600. MX Z 700. MX Z 800.Flat Washer 6 mm. (Renegade) MX Z 600. MX Z 700. MX Z 800.
