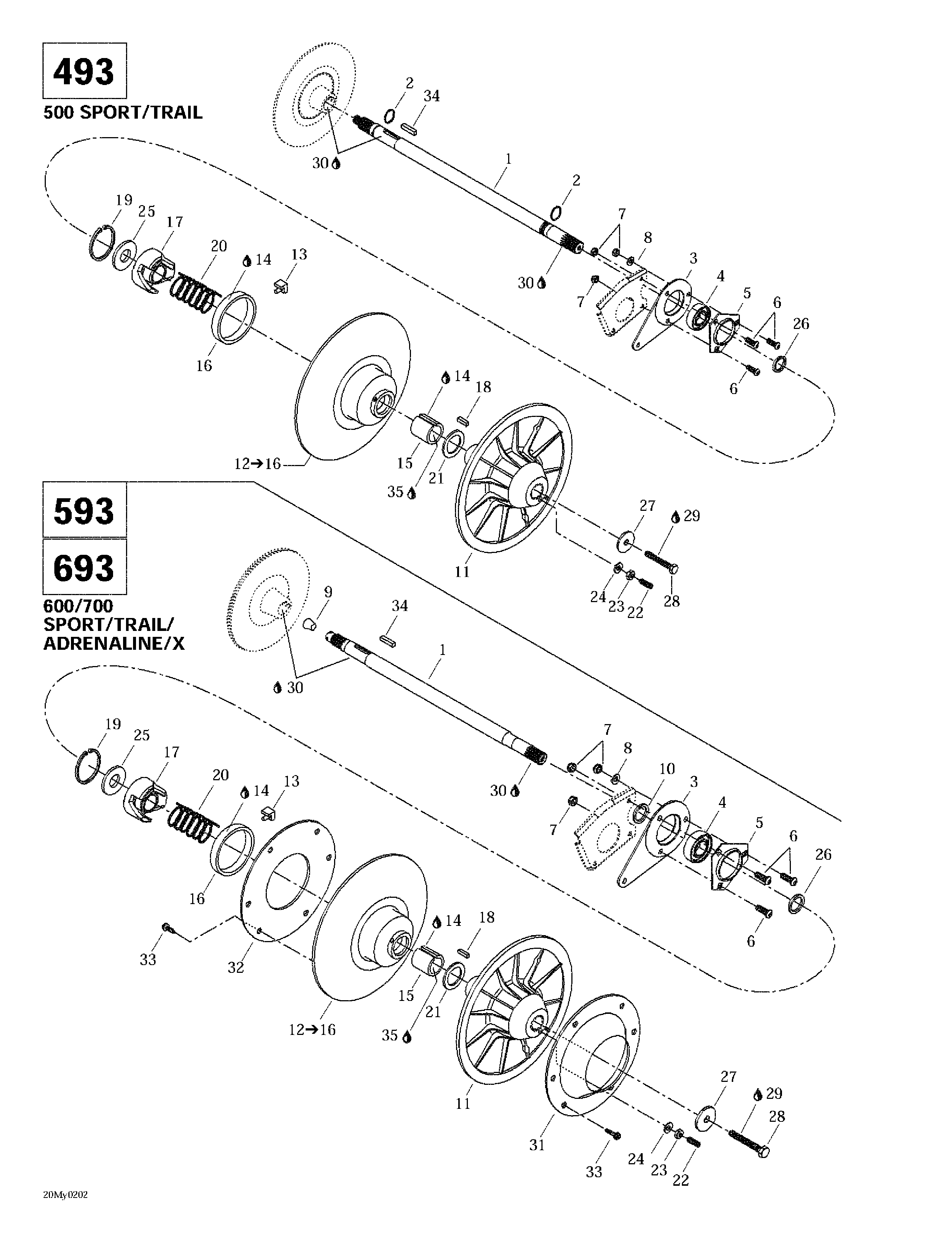

05- Driven Pulley (493) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1504151858 Countershaft. MX Z 500.Countershaft. MX Z 500.
-
501026300 Countershaft. MX Z 600. MX Z 700.Countershaft. MX Z 600. MX Z 700.
-
2371910000 Circlip. MX Z 500.Circlip. MX Z 500.
-
3080044200 Casting Spacer. MX Z 500. MX Z 600. MX Z 700.Casting Spacer. MX Z 500. MX Z 600. MX Z 700.
-
4504152008 Ball Bearing. MX Z 500.Ball Bearing. MX Z 500.
-
504152026 Ball Bearing. MX Z 600. MX Z 700.Ball Bearing. MX Z 600. MX Z 700.
-
5501025000 Flange. MX Z 500. MX Z 600. MX Z 700.Flange. MX Z 500. MX Z 600. MX Z 700.
-
6205482546 Socket Head Screw M8 x 25. MX Z 500. MX Z 600. MX Z 700.Socket Head Screw M8 x 25. MX Z 500. MX Z 600. MX Z 700.
-
7232581414 Elastic Stop Nut M8. MX Z 500. MX Z 600. MX Z 700.Elastic Stop Nut M8. MX Z 500. MX Z 600. MX Z 700.
-
8234081410 Flat Washer 8 mm. MX Z 500. MX Z 600. MX Z 700.Flat Washer 8 mm. MX Z 500. MX Z 600. MX Z 700.
-
9414784800 Cork. MX Z 600. MX Z 700.Cork. MX Z 600. MX Z 700.
-
10504149100 Spacer. MX Z 600. MX Z 700.Spacer. MX Z 600. MX Z 700.
-
11417126477 Fixed Flange. MX Z 500. MX Z 600. MX Z 700.Fixed Flange. MX Z 500. MX Z 600. MX Z 700.
-
12417126486 Sliding Flange Ass'y. Includes 12 - 16. MX Z 500. MX Z 600. MX Z 700.Sliding Flange Ass'y. Includes 12 - 16. MX Z 500. MX Z 600. MX Z 700.
-
13414918000 Cam Slider Shoe. MX Z 500. MX Z 600. MX Z 700.Cam Slider Shoe. MX Z 500. MX Z 600. MX Z 700.
-
14413703100 Loctite 609, 10 ml. MX Z 500. MX Z 600. MX Z 700.Loctite 609, 10 ml. MX Z 500. MX Z 600. MX Z 700.
-
15415011200 Bushing. MX Z 500. MX Z 600. MX Z 700.Bushing. MX Z 500. MX Z 600. MX Z 700.
-
16414876600 Garlock Bushing. MX Z 500. MX Z 600. MX Z 700.Garlock Bushing. MX Z 500. MX Z 600. MX Z 700.
-
17417126590 Cam 42 Deg. MX Z 500.Cam 42 Deg. MX Z 500.
-
417126337 Cam 47 Deg. MX Z 600.Cam 47 Deg. MX Z 600.
-
417126585 Cam 48 Deg./44 Deg. MX Z 700.Cam 48 Deg./44 Deg. MX Z 700.
-
18414820800 Key. MX Z 500. MX Z 600. MX Z 700.Key. MX Z 500. MX Z 600. MX Z 700.
-
19371903100 Circlip. MX Z 500. MX Z 600. MX Z 700.Circlip. MX Z 500. MX Z 600. MX Z 700.
-
20414558900 Release Spring (Beige). MX Z 500. MX Z 600. MX Z 700.Release Spring (Beige). MX Z 500. MX Z 600. MX Z 700.
-
21504141900 Thrust Washer. MX Z 500. MX Z 600. MX Z 700.Thrust Washer. MX Z 500. MX Z 600. MX Z 700.
-
22206263044 Socket Set Screw M6 x 30. MX Z 500. MX Z 600. MX Z 700.Socket Set Screw M6 x 30. MX Z 500. MX Z 600. MX Z 700.
-
23232061414 Hex. Nut M6. MX Z 500. MX Z 600. MX Z 700.Hex. Nut M6. MX Z 500. MX Z 600. MX Z 700.
-
24420245370 Washer. MX Z 500. MX Z 600. MX Z 700.Washer. MX Z 500. MX Z 600. MX Z 700.
-
25504141800 Washer. MX Z 500. MX Z 600. MX Z 700.Washer. MX Z 500. MX Z 600. MX Z 700.
-
26504149100 Spacer. MX Z 500. MX Z 600. MX Z 700.Spacer. MX Z 500. MX Z 600. MX Z 700.
-
27517302322 Washer. MX Z 500. MX Z 600. MX Z 700.Washer. MX Z 500. MX Z 600. MX Z 700.
-
28207087544 Hex. Screw M8 x 75. MX Z 500. MX Z 600. MX Z 700.Hex. Screw M8 x 75. MX Z 500. MX Z 600. MX Z 700.
-
29293800060 Loctite 243, 10mL. MX Z 500. MX Z 600. MX Z 700.Loctite 243, 10mL. MX Z 500. MX Z 600. MX Z 700.
-
30293800070 Loctite 767, Antiseize Lubricant, 8 oz. MX Z 500. MX Z 600. MX Z 700.Loctite 767, Antiseize Lubricant, 8 oz. MX Z 500. MX Z 600. MX Z 700.
-
31504142000 Cup. MX Z 600. MX Z 700.Cup. MX Z 600. MX Z 700.
-
32504142100 Ring. MX Z 600. MX Z 700.Ring. MX Z 600. MX Z 700.
-
33210251180 Hex. Forming Screw M5 x 11. MX Z 600. MX Z 700.Hex. Forming Screw M5 x 11. MX Z 600. MX Z 700.
-
34507021300 Key. MX Z 500. MX Z 600. MX Z 700.Key. MX Z 500. MX Z 600. MX Z 700.
-
35413701000 Loctite 767, Antiseize Lubricant, 12 oz. MX Z 500. MX Z 600. MX Z 700.Loctite 767, Antiseize Lubricant, 12 oz. MX Z 500. MX Z 600. MX Z 700.
