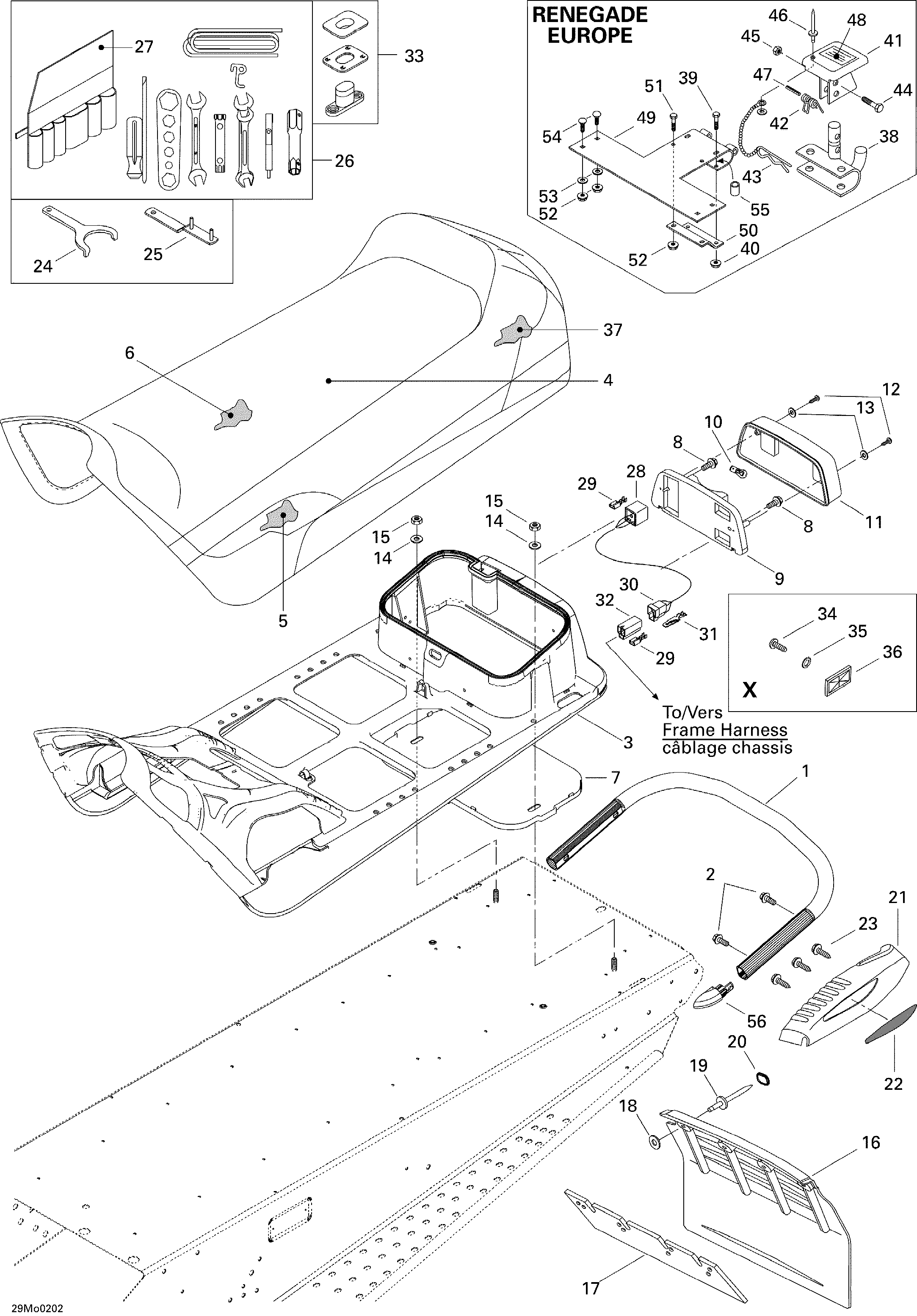

09- Seat And Accessories для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1518322708 Rear BumperRear Bumper
-
518322888 Rear Bumper (X). MX Z 600. MX Z 700. MX Z 800.Rear Bumper (X). MX Z 600. MX Z 700. MX Z 800.
-
518322708 Rear Bumper. (RENEGADE EUROPE) MX Z 600. MX Z 700. MX Z 800.Rear Bumper. (RENEGADE EUROPE) MX Z 600. MX Z 700. MX Z 800.
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3510003983 Seat BaseSeat Base
-
510003949 Seat Base (X). MX Z 600. MX Z 700. MX Z 800.Seat Base (X). MX Z 600. MX Z 700. MX Z 800.
-
4510003959 Seat CoverSeat Cover
-
510003961 Seat Cover (X). MX Z 600. MX Z 700. MX Z 800.Seat Cover (X). MX Z 600. MX Z 700. MX Z 800.
-
510004051 Seat Cover (Heritage). MX Z 700.Seat Cover (Heritage). MX Z 700.
-
510004029 Seat Cover (Olympic). MX Z 700.Seat Cover (Olympic). MX Z 700.
-
5510003944 Seat Foam. (SPORT/TRAIL/ADRENALINE/RENEGADE)Seat Foam. (SPORT/TRAIL/ADRENALINE/RENEGADE)
-
6510003841 Seat FoamSeat Foam
-
510003948 Seat Foam (X). MX Z 600. MX Z 700. MX Z 800.Seat Foam (X). MX Z 600. MX Z 700. MX Z 800.
-
7572107601 Under ChestUnder Chest
-
8732603006 Hex. ScrewHex. Screw
-
9414513600 Light HousingLight Housing
-
10410504100 Tail Lamp BulbTail Lamp Bulb
-
11414513700 LensLens
-
12209632540 Tapping ScrewTapping Screw
-
13414516400 WasherWasher
-
14234082410 Flat Washer 8 mmFlat Washer 8 mm
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16572092100 Snow GuardSnow Guard
-
17572108200 ReinforcementReinforcement
-
18517225900 Flat WasherFlat Washer
-
19293150087 Rivet 3/16Rivet 3/16
-
20415073300 CapCap
-
21861777700 R.H. Moulding. Includes 21 - 22.R.H. Moulding. Includes 21 - 22.
-
861779300 R.H. MouldingR.H. Moulding
-
861777800 L.H. MouldingL.H. Moulding
-
861779400 L.H. MouldingL.H. Moulding
-
22516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Rear Reflector (Europe)R.H. Rear Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Rear Reflector (Europe)L.H. Rear Reflector (Europe)
-
23243141640 Hex. Tapping ScrewHex. Tapping Screw
-
24529032900 Wrench AdjusterWrench Adjuster
-
529035582 Wrench Adjuster (X). MX Z 600. MX Z 700. MX Z 800.Wrench Adjuster (X). MX Z 600. MX Z 700. MX Z 800.
-
25520000126 Wrench AdjusterWrench Adjuster
-
26529035596 Tool Kit. Includes 26 - 27.Tool Kit. Includes 26 - 27.
-
27520000047 Tool BagTool Bag
-
28515175250 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
29561503100 Female TerminalFemale Terminal
-
30409204200 Male Connector Housing (3 Circuits)Male Connector Housing (3 Circuits)
-
31409206100 Male Terminal (20/18 Ga.)Male Terminal (20/18 Ga.)
-
32409204300 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
33414728000 Seat BuckleSeat Buckle
-
34208651041 Screw M5 x 10 (X). MX Z 600. MX Z 700. MX Z 800.Screw M5 x 10 (X). MX Z 600. MX Z 700. MX Z 800.
-
35234451418 Lock Washer 5 mm (X). MX Z 600. MX Z 700. MX Z 800.Lock Washer 5 mm (X). MX Z 600. MX Z 700. MX Z 800.
-
36414510100 Red Reflector (X). MX Z 600. MX Z 700. MX Z 800.Red Reflector (X). MX Z 600. MX Z 700. MX Z 800.
-
414510200 Amber Reflector (X EUROPE). MX Z 600. MX Z 800.Amber Reflector (X EUROPE). MX Z 600. MX Z 800.
-
37510003945 Seat FoamSeat Foam
-
38861778700 Hitch Ass'y. Includes 38 - 48. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hitch Ass'y. Includes 38 - 48. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
38517199300 Hitch. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hitch. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
39207065044 Hex. Screw M6 x 50. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hex. Screw M6 x 50. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
40233261414 Elastic Flanged Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.Elastic Flanged Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
41517152700 Hitch Protector. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hitch Protector. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
42517152800 Spring. (RENEGADE EUROPE) MX Z 700. MX Z 800.Spring. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
43114045200 Hair Pin. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hair Pin. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
44207063044 Hex. Screw M6 x 30. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hex. Screw M6 x 30. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
45232561414 Elastic Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.Elastic Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
46390409400 Pop Rivet. (RENEGADE EUROPE) MX Z 700. MX Z 800.Pop Rivet. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
47732804000 Pin Spring. (RENEGADE EUROPE) MX Z 700. MX Z 800.Pin Spring. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
48516001243 Security Label. (RENEGADE EUROPE) MX Z 700. MX Z 800.Security Label. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
49511000030 Fixation. (RENEGADE EUROPE) MX Z 700. MX Z 800.Fixation. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
50511000022 Reinforcement. (RENEGADE EUROPE) MX Z 700. MX Z 800.Reinforcement. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
51207161844 Hex. Screw M6 x 18. (RENEGADE EUROPE) MX Z 700. MX Z 800.Hex. Screw M6 x 18. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
52233261414 Elastic Flanged Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.Elastic Flanged Stop Nut M6. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
53224061201 Flat Washer. (RENEGADE EUROPE) MX Z 700. MX Z 800.Flat Washer. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
54207762044 Carriage Bolt M6 x 20. (RENEGADE EUROPE) MX Z 700. MX Z 800.Carriage Bolt M6 x 20. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
55517191700 Spacer. (RENEGADE EUROPE) MX Z 700. MX Z 800.Spacer. (RENEGADE EUROPE) MX Z 700. MX Z 800.
-
56520000272 CapCap
