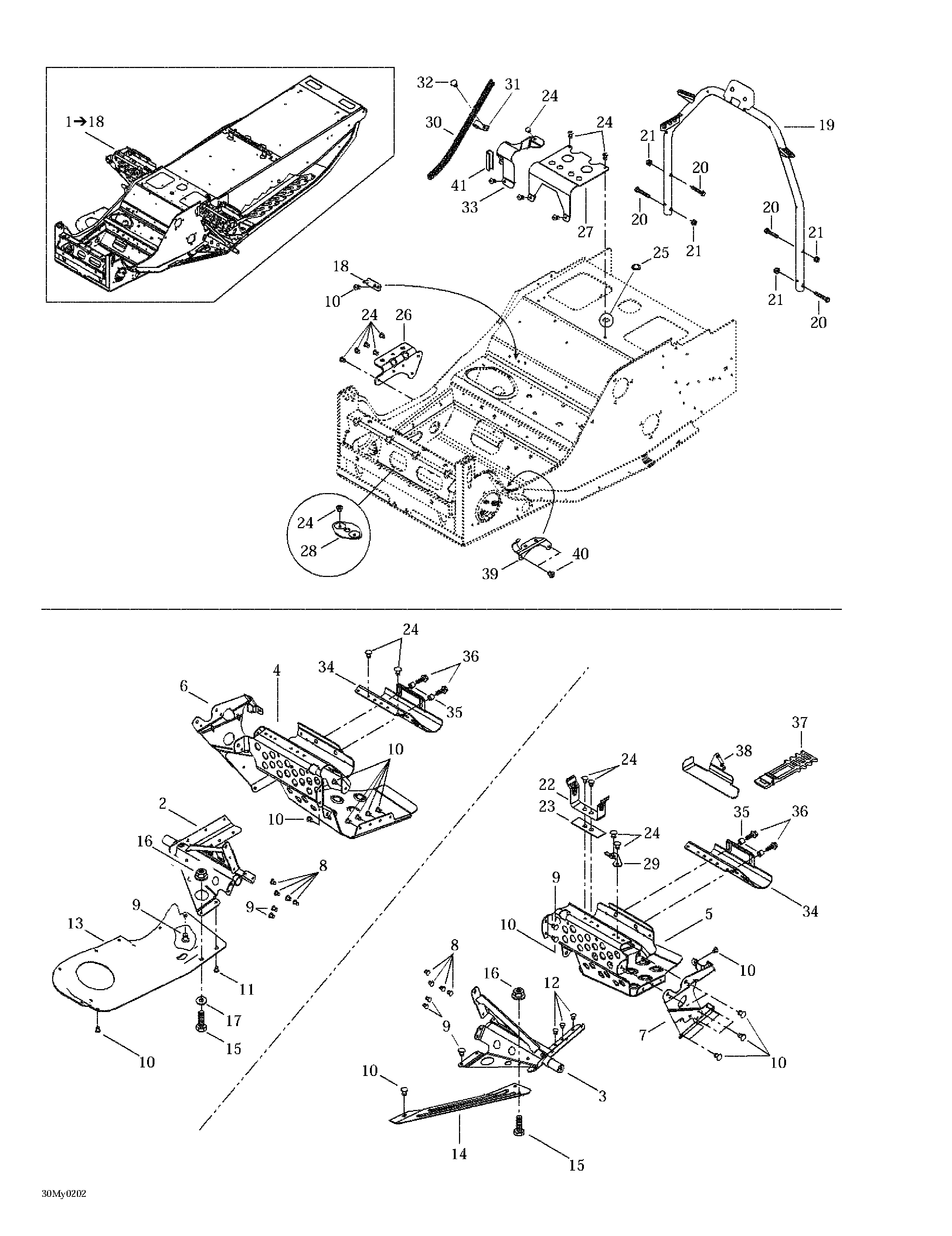

09- Frame - Front (X) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1518323009 Frame (X). Includes 1 - 18. MX Z 600.Frame (X). Includes 1 - 18. MX Z 600.
-
518323008 Frame (X). MX Z 700. MX Z 800.Frame (X). MX Z 700. MX Z 800.
-
2518322845 R.H. Footrest Support. MX Z 600. MX Z 700. MX Z 800.R.H. Footrest Support. MX Z 600. MX Z 700. MX Z 800.
-
3518322848 L.H. Footrest Support. MX Z 600. MX Z 700. MX Z 800.L.H. Footrest Support. MX Z 600. MX Z 700. MX Z 800.
-
4518322393 R.H. Footrest. MX Z 600. MX Z 700. MX Z 800.R.H. Footrest. MX Z 600. MX Z 700. MX Z 800.
-
5518322394 L.H. Footrest. MX Z 600. MX Z 700. MX Z 800.L.H. Footrest. MX Z 600. MX Z 700. MX Z 800.
-
6518321305 R.H. Footrest Reinforcement. MX Z 600. MX Z 700. MX Z 800.R.H. Footrest Reinforcement. MX Z 600. MX Z 700. MX Z 800.
-
7518321307 L.H. Footrest Reinforcement. MX Z 600. MX Z 700. MX Z 800.L.H. Footrest Reinforcement. MX Z 600. MX Z 700. MX Z 800.
-
8390909200 Avex Rivet. MX Z 600. MX Z 700. MX Z 800.Avex Rivet. MX Z 600. MX Z 700. MX Z 800.
-
9390909100 Avex Rivet. MX Z 600. MX Z 700. MX Z 800.Avex Rivet. MX Z 600. MX Z 700. MX Z 800.
-
10390402200 Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.
-
11390402300 Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.
-
12390402400 Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.
-
13518319760 R.H. Bottom Pan Plate. MX Z 600.R.H. Bottom Pan Plate. MX Z 600.
-
518322636 R.H. Bottom Pan Plate. MX Z 700. MX Z 800.R.H. Bottom Pan Plate. MX Z 700. MX Z 800.
-
14518322119 L.H. Reinforcement Plate. MX Z 600. MX Z 700. MX Z 800.L.H. Reinforcement Plate. MX Z 600. MX Z 700. MX Z 800.
-
15207152044 Hex. Screw M5 x 20. MX Z 600. MX Z 700. MX Z 800.Hex. Screw M5 x 20. MX Z 600. MX Z 700. MX Z 800.
-
16233251414 Elastic Flanged Stop Nut M5. MX Z 600. MX Z 700. MX Z 800.Elastic Flanged Stop Nut M5. MX Z 600. MX Z 700. MX Z 800.
-
17391301700 Washer. MX Z 600. MX Z 700. MX Z 800.Washer. MX Z 600. MX Z 700. MX Z 800.
-
18518322391 Double Bracket. MX Z 600. MX Z 700. MX Z 800.Double Bracket. MX Z 600. MX Z 700. MX Z 800.
-
19518322755 Handle Support. MX Z 600. MX Z 700. MX Z 800.Handle Support. MX Z 600. MX Z 700. MX Z 800.
-
20207664044 Hex. Flanged Screw M6 x 40. MX Z 600. MX Z 700. MX Z 800.Hex. Flanged Screw M6 x 40. MX Z 600. MX Z 700. MX Z 800.
-
21233261414 Elastic Flanged Stop Nut M6. MX Z 600. MX Z 700. MX Z 800.Elastic Flanged Stop Nut M6. MX Z 600. MX Z 700. MX Z 800.
-
22518202100 Pulley Guard Bracket. MX Z 600. MX Z 700. MX Z 800.Pulley Guard Bracket. MX Z 600. MX Z 700. MX Z 800.
-
23518207500 Reinforcement. MX Z 600. MX Z 700. MX Z 800.Reinforcement. MX Z 600. MX Z 700. MX Z 800.
-
24390402200 Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.Rivet 3/16''. MX Z 600. MX Z 700. MX Z 800.
-
25414859400 Cap. MX Z 600. MX Z 700. MX Z 800.Cap. MX Z 600. MX Z 700. MX Z 800.
-
26518322635 Muffler Support. MX Z 600. MX Z 700. MX Z 800.Muffler Support. MX Z 600. MX Z 700. MX Z 800.
-
27518310400 Air Intake Support. MX Z 600. MX Z 700. MX Z 800.Air Intake Support. MX Z 600. MX Z 700. MX Z 800.
-
28518201307 Plate Bracket. MX Z 600. MX Z 700. MX Z 800.Plate Bracket. MX Z 600. MX Z 700. MX Z 800.
-
29518322031 Tool Kit Bracket. MX Z 600. MX Z 700. MX Z 800.Tool Kit Bracket. MX Z 600. MX Z 700. MX Z 800.
-
30518321569 Rope Guide. MX Z 600. MX Z 700. MX Z 800.Rope Guide. MX Z 600. MX Z 700. MX Z 800.
-
31518321570 Clip. MX Z 600. MX Z 700. MX Z 800.Clip. MX Z 600. MX Z 700. MX Z 800.
-
32390406500 Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.
-
33518322699 Hose Support. MX Z 600. MX Z 700. MX Z 800.Hose Support. MX Z 600. MX Z 700. MX Z 800.
-
34518321571 Toe Hold. MX Z 600. MX Z 700. MX Z 800.Toe Hold. MX Z 600. MX Z 700. MX Z 800.
-
35415107300 Insert. MX Z 600. MX Z 700. MX Z 800.Insert. MX Z 600. MX Z 700. MX Z 800.
-
36207661644 Hex. Flanged Screw M6 x16. MX Z 600. MX Z 700. MX Z 800.Hex. Flanged Screw M6 x16. MX Z 600. MX Z 700. MX Z 800.
-
37570069700 Latch. MX Z 600. MX Z 700. MX Z 800.Latch. MX Z 600. MX Z 700. MX Z 800.
-
38518321999 Tool Kit Support. MX Z 600. MX Z 700. MX Z 800.Tool Kit Support. MX Z 600. MX Z 700. MX Z 800.
-
39515175254 Cable Support. MX Z 600. MX Z 700. MX Z 800.Cable Support. MX Z 600. MX Z 700. MX Z 800.
-
40390402300 Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.Pop Rivet 3/16. MX Z 600. MX Z 700. MX Z 800.
-
41271000110 Trim. MX Z 600. MX Z 700. MX Z 800.Trim. MX Z 600. MX Z 700. MX Z 800.
