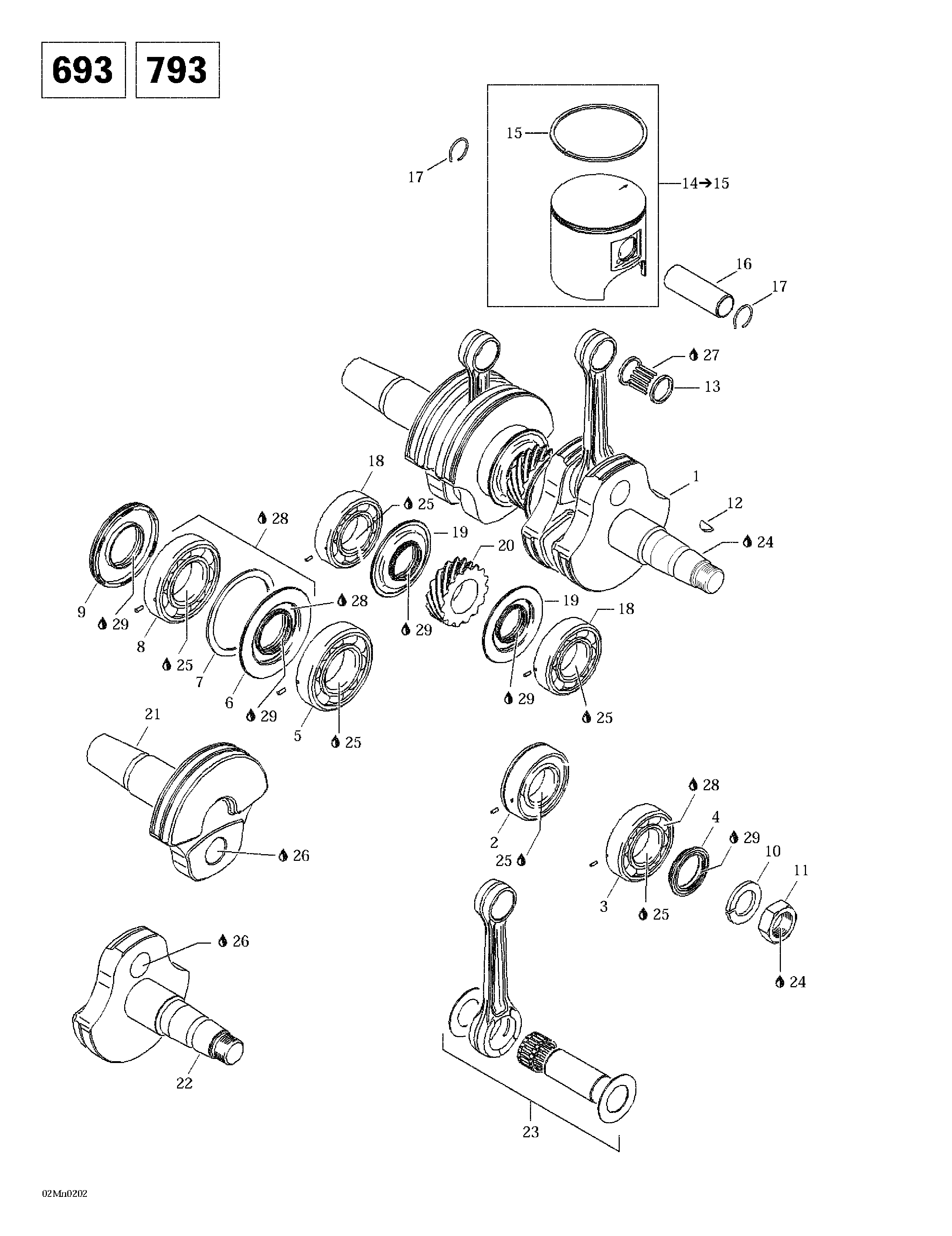

01- Crankshaft And Pistons (693, 793) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1420888286 Crankshaft Ass'y. Includes 1 - 9. MX Z 700.Crankshaft Ass'y. Includes 1 - 9. MX Z 700.
-
1420888402 Crankshaft Ass'y. Includes 1 - 8. MX Z 800.Crankshaft Ass'y. Includes 1 - 8. MX Z 800.
-
2420832635 Ball Bearing 6207. MX Z 700. MX Z 800.Ball Bearing 6207. MX Z 700. MX Z 800.
-
3420832575 Ball Bearing 6207. MX Z 700. MX Z 800.Ball Bearing 6207. MX Z 700. MX Z 800.
-
4420931792 Oil Seal. MX Z 700. MX Z 800.Oil Seal. MX Z 700. MX Z 800.
-
5420832600 Ball Bearing 6208. MX Z 700. MX Z 800.Ball Bearing 6208. MX Z 700. MX Z 800.
-
6420931910 Oil Seal. MX Z 700. MX Z 800.Oil Seal. MX Z 700. MX Z 800.
-
7420926190 Washer. MX Z 700. MX Z 800.Washer. MX Z 700. MX Z 800.
-
8420832600 Ball Bearing 6208. MX Z 700.Ball Bearing 6208. MX Z 700.
-
420832601 Ball Bearing. MX Z 800.Ball Bearing. MX Z 800.
-
9420931280 Oil Seal. MX Z 700.Oil Seal. MX Z 700.
-
420931285 Oil Seal. MX Z 800.Oil Seal. MX Z 800.
-
10420945759 Lock Washer 22 mm. MX Z 700. MX Z 800.Lock Washer 22 mm. MX Z 700. MX Z 800.
-
11420842230 Nut M22. MX Z 700. MX Z 800.Nut M22. MX Z 700. MX Z 800.
-
12420246015 Woodruff Key. MX Z 700. MX Z 800.Woodruff Key. MX Z 700. MX Z 800.
-
13420832425 Needle Bearing. MX Z 700. MX Z 800.Needle Bearing. MX Z 700. MX Z 800.
-
14420888298 Piston Ass'y (77.88 mm). Includes 14 - 15. MX Z 700.Piston Ass'y (77.88 mm). Includes 14 - 15. MX Z 700.
-
420888439 Piston Ass'y (81.87 mm). MX Z 800.Piston Ass'y (81.87 mm). MX Z 800.
-
15420815226 Semi-Trapez Ring. MX Z 700.Semi-Trapez Ring. MX Z 700.
-
420815218 Semi-Trapez Ring. MX Z 800.Semi-Trapez Ring. MX Z 800.
-
16420916370 Gudgeon Pin. MX Z 700. MX Z 800.Gudgeon Pin. MX Z 700. MX Z 800.
-
17420845106 Piston Circlip. MX Z 700. MX Z 800.Piston Circlip. MX Z 700. MX Z 800.
-
18420832575 Ball Bearing 6207. MX Z 700. MX Z 800.Ball Bearing 6207. MX Z 700. MX Z 800.
-
19420931455 Oil Seal. MX Z 700. MX Z 800.Oil Seal. MX Z 700. MX Z 800.
-
20420834355 Central Gear (15 Teeth). MX Z 700. MX Z 800.Central Gear (15 Teeth). MX Z 700. MX Z 800.
-
21420818708 Crankshaft (PTO). MX Z 700.Crankshaft (PTO). MX Z 700.
-
420819030 Crankshaft (PTO). MX Z 800.Crankshaft (PTO). MX Z 800.
-
22420818739 Crankshaft (MAG). MX Z 700.Crankshaft (MAG). MX Z 700.
-
420819061 Crankshaft (MAG). MX Z 800.Crankshaft (MAG). MX Z 800.
-
23420888288 Rod Repair Kit (MAG). MX Z 700.Rod Repair Kit (MAG). MX Z 700.
-
420889103 Rod Repair Kit (MAG). MX Z 800.Rod Repair Kit (MAG). MX Z 800.
-
420888289 Rod Repair Kit (PTO). MX Z 700.Rod Repair Kit (PTO). MX Z 700.
-
420889104 Rod Repair Kit (PTO). MX Z 800.Rod Repair Kit (PTO). MX Z 800.
-
24293800060 Loctite 243, 10 ml. MX Z 700. MX Z 800.Loctite 243, 10 ml. MX Z 700. MX Z 800.
-
25293800070 Loctite 767, Antiseize Lubricant, 8 oz. MX Z 700. MX Z 800.Loctite 767, Antiseize Lubricant, 8 oz. MX Z 700. MX Z 800.
-
26413711400 Loctite 648, 10 ml. MX Z 700. MX Z 800.Loctite 648, 10 ml. MX Z 700. MX Z 800.
-
27413802900 Injection Oil (12 x 1 Liter). MX Z 700. MX Z 800.Injection Oil (12 x 1 Liter). MX Z 700. MX Z 800.
-
28293550021 Isoflex Grease, 50 g. MX Z 700. MX Z 800.Isoflex Grease, 50 g. MX Z 700. MX Z 800.
-
29420899271 Petamo Grease GHY 133N, 400 g. MX Z 700. MX Z 800.Petamo Grease GHY 133N, 400 g. MX Z 700. MX Z 800.
