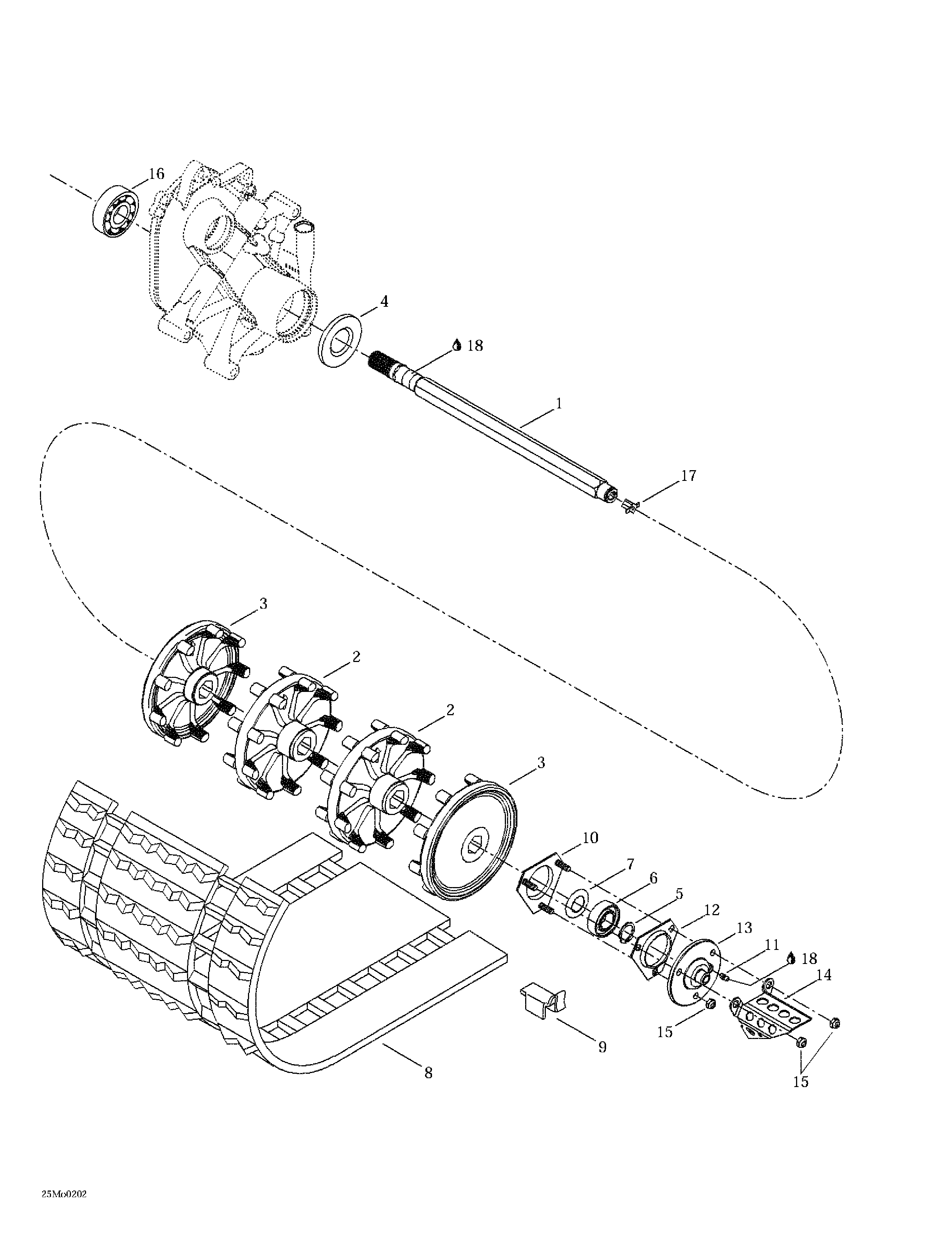

05- Drive Axle And Track для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket (9 Teeth)Sprocket (9 Teeth)
-
3504151782 Half Sprocket (9 Teeth)Half Sprocket (9 Teeth)
-
4504151918 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8570212600 Track Ass'y (15'' x 121'' x 0.875''). Includes 8 - 9. (SPORT / TRAIL) MX Z 500. MX Z 600. MX Z 700.Track Ass'y (15'' x 121'' x 0.875''). Includes 8 - 9. (SPORT / TRAIL) MX Z 500. MX Z 600. MX Z 700.
-
504151917 Track Ass'y(15'' x 121'' x 1''). (ADRENALINE / X / SPORT EUROPE) MX Z 500. MX Z 600. MX Z 700.Track Ass'y(15'' x 121'' x 1''). (ADRENALINE / X / SPORT EUROPE) MX Z 500. MX Z 600. MX Z 700.
-
504151815 Track Ass'y (15'' x 121'' x 1.25''). (EUROPE) MX Z 600. MX Z 800.Track Ass'y (15'' x 121'' x 1.25''). (EUROPE) MX Z 600. MX Z 800.
-
504152028 Track Ass'y (15'' x 136'' x 1.25''). (RENEGADE) MX Z 600. MX Z 700. MX Z 800.Track Ass'y (15'' x 136'' x 1.25''). (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
-
504152080 Track Ass'y (15'' x 121'' x 1.01''). (SPORT / TRAIL / X /ADRENALINE) MX Z 800.Track Ass'y (15'' x 121'' x 1.01''). (SPORT / TRAIL / X /ADRENALINE) MX Z 800.
-
9500003400 Guide CleatGuide Cleat
-
500003400 Guide Cleat. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.Guide Cleat. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
-
10504151860 Bearing HousingBearing Housing
-
11408200700 Grease FittingGrease Fitting
-
12501025000 FlangeFlange
-
13504151836 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
14517290100 Cable ProtectorCable Protector
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16504152005 Ball BearingBall Bearing
-
17572010100 Speedometer InsertSpeedometer Insert
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
