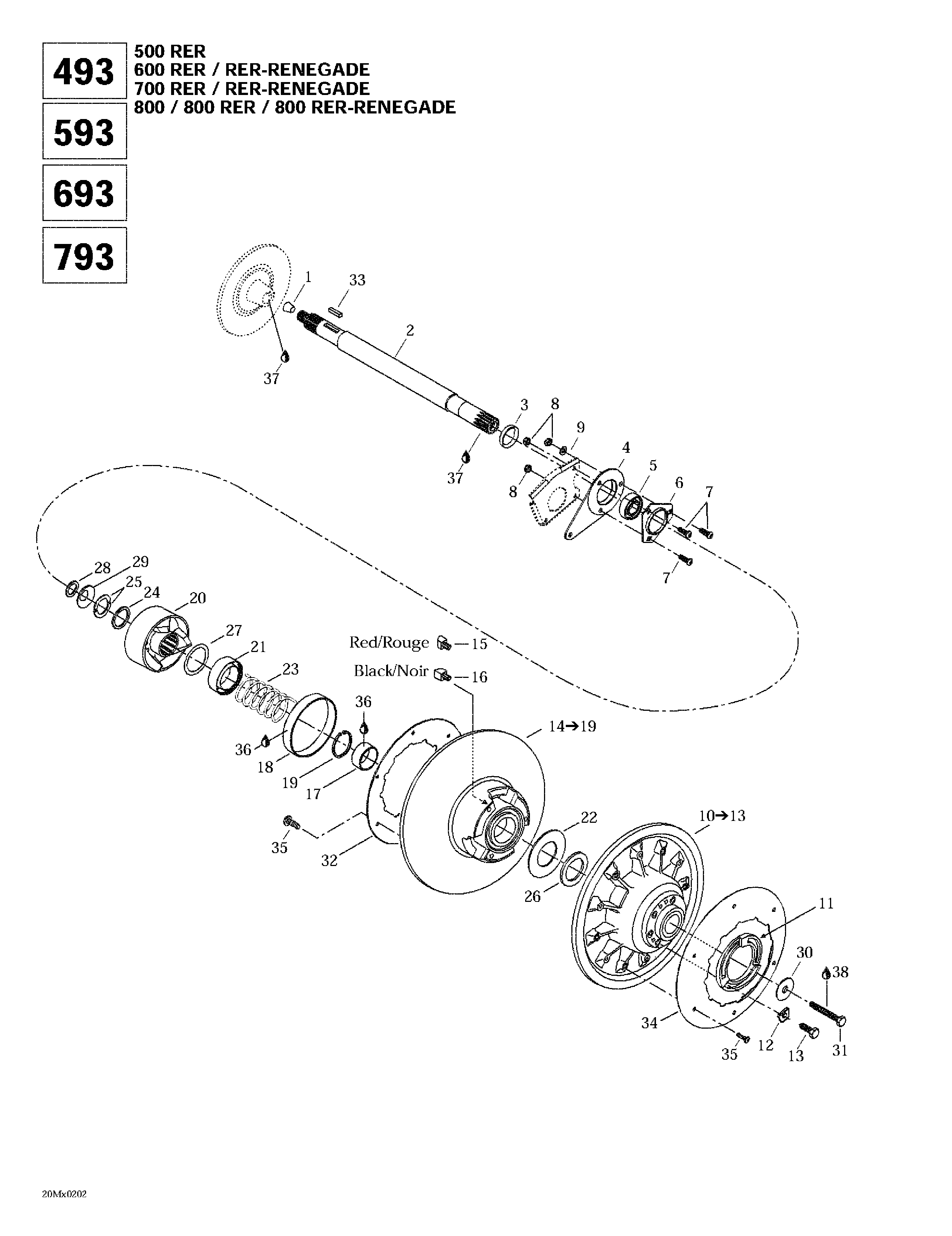

05- Driven Pulley (493 RER) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1414784800 CorkCork
-
2501026300 CountershaftCountershaft
-
3504149100 SpacerSpacer
-
4080044200 Spacer (Casting)Spacer (Casting)
-
5504152026 Ball BearingBall Bearing
-
6501025000 FlangeFlange
-
7205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
8232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
9234081410 Flat WasherFlat Washer
-
10417126527 Fixed Flange Ass'y. Includes 10 - 13.Fixed Flange Ass'y. Includes 10 - 13.
-
11415005800 Adjustment RingAdjustment Ring
-
12415005900 Adjustment ShimAdjustment Shim
-
13207162544 Screw Hex. M6 x 25 (3)Screw Hex. M6 x 25 (3)
-
207162244 Screw Hex. M6 x 22 (3)Screw Hex. M6 x 22 (3)
-
14417126318 Sliding Flange Ass'y. Includes 14 - 19.Sliding Flange Ass'y. Includes 14 - 19.
-
15417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
16417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
18414978100 BushingBushing
-
19371911200 CirclipCirclip
-
20417126445 Cam Ass'y. MX Z 500.Cam Ass'y. MX Z 500.
-
417126577 Cam Ass'y. (600 RER / RER-RENEGADE). (700 RER-RENEGADE) MX Z 600. MX Z 700.Cam Ass'y. (600 RER / RER-RENEGADE). (700 RER-RENEGADE) MX Z 600. MX Z 700.
-
417126580 Cam Ass'y. MX Z 700.Cam Ass'y. MX Z 700.
-
417126385 Cam Ass'y. MX Z 800.Cam Ass'y. MX Z 800.
-
21417126381 GuardGuard
-
22504099600 Stopper WasherStopper Washer
-
23414978300 Release SpringRelease Spring
-
24417126375 SpacerSpacer
-
25371911000 Half KeyHalf Key
-
26504112300 ShimShim
-
27417126322 Swivel AbutmentSwivel Abutment
-
28417300054 SpacerSpacer
-
29417300055 ProtectorProtector
-
30517302322 Strength WasherStrength Washer
-
31207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
32504149700 Cover. MX Z 600. MX Z 700. MX Z 800.Cover. MX Z 600. MX Z 700. MX Z 800.
-
33507021300 KeyKey
-
34504151831 Cover. MX Z 600. MX Z 700. MX Z 800.Cover. MX Z 600. MX Z 700. MX Z 800.
-
35210251180 Hex. Forming Screw M5 x 11. MX Z 600. MX Z 700. MX Z 800.Hex. Forming Screw M5 x 11. MX Z 600. MX Z 700. MX Z 800.
-
36413703100 Loctite 609, 10ccLoctite 609, 10cc
-
37293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
