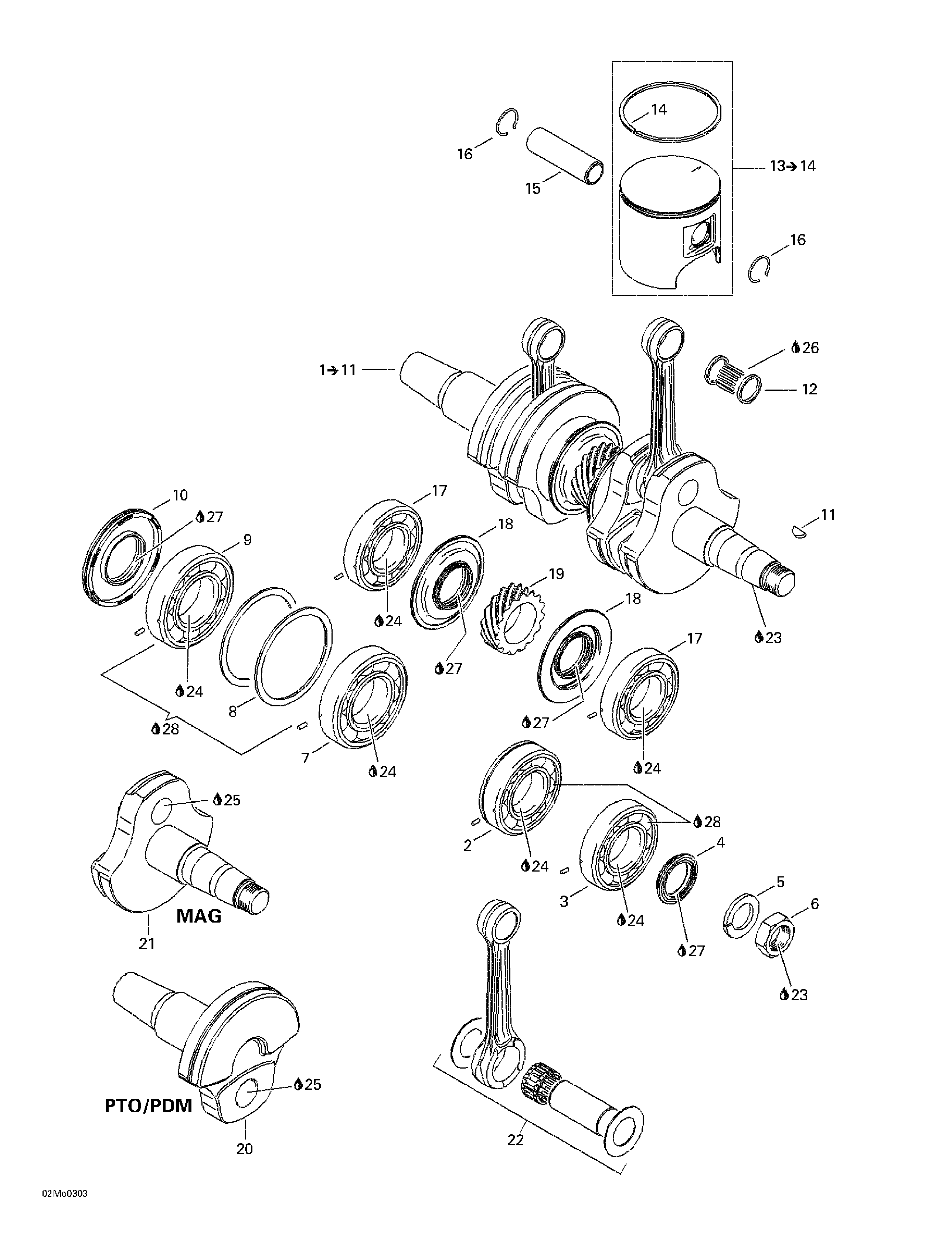

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1420888465 Crankshaft ass'y. Includes 1 - 11. MX Z 500.Crankshaft ass'y. Includes 1 - 11. MX Z 500.
-
420888757 Crankshaft ass'y. MX Z 600.Crankshaft ass'y. MX Z 600.
-
420889090 Crankshaft ass'y (HO). MX Z 600.Crankshaft ass'y (HO). MX Z 600.
-
420889090 Crankshaft ass'y. MX Z 700.Crankshaft ass'y. MX Z 700.
-
420889102 Crankshaft ass'y. MX Z 800.Crankshaft ass'y. MX Z 800.
-
2420832595 Ball bearing 6206. MX Z 500. MX Z 600.Ball bearing 6206. MX Z 500. MX Z 600.
-
420832635 Ball bearing 6206 (HO). MX Z 600.Ball bearing 6206 (HO). MX Z 600.
-
420832635 Ball bearing 6206. MX Z 700. MX Z 800.Ball bearing 6206. MX Z 700. MX Z 800.
-
3420832590 Ball bearing 6206. MX Z 500. MX Z 600.Ball bearing 6206. MX Z 500. MX Z 600.
-
420832575 Ball bearing 6206 (HO). MX Z 600.Ball bearing 6206 (HO). MX Z 600.
-
420832575 Ball bearing 6206. MX Z 700. MX Z 800.Ball bearing 6206. MX Z 700. MX Z 800.
-
4420931792 Oil sealOil seal
-
5420945759 Lock washerLock washer
-
6420842234 Hex nut M22 x 1.5Hex nut M22 x 1.5
-
7420832635 Ball bearing 6207. MX Z 500. MX Z 600.Ball bearing 6207. MX Z 500. MX Z 600.
-
420832605 Ball bearing 6207 (HO). MX Z 600.Ball bearing 6207 (HO). MX Z 600.
-
420832605 Ball bearing 6207. MX Z 700. MX Z 800.Ball bearing 6207. MX Z 700. MX Z 800.
-
8420927710 Retainning disk. MX Z 500. MX Z 600.Retainning disk. MX Z 500. MX Z 600.
-
420926190 Retainning disk (HO). MX Z 600.Retainning disk (HO). MX Z 600.
-
420926190 Retainning disk. MX Z 700. MX Z 800.Retainning disk. MX Z 700. MX Z 800.
-
9420832575 Ball bearing 6207. MX Z 500. MX Z 600.Ball bearing 6207. MX Z 500. MX Z 600.
-
420832600 Ball bearing 6208 (HO). MX Z 600.Ball bearing 6208 (HO). MX Z 600.
-
420832600 Ball bearing 6208. MX Z 700.Ball bearing 6208. MX Z 700.
-
420832601 Ball bearing 6208. MX Z 800.Ball bearing 6208. MX Z 800.
-
10290831952 Oil seal. MX Z 500. MX Z 600.Oil seal. MX Z 500. MX Z 600.
-
420931285 Oil seal (HO). MX Z 600.Oil seal (HO). MX Z 600.
-
420931285 Oil seal. MX Z 700. MX Z 800.Oil seal. MX Z 700. MX Z 800.
-
11420246015 Woodfuff keyWoodfuff key
-
12420832320 Needle bearing. MX Z 500.Needle bearing. MX Z 500.
-
420832425 Needle bearing. MX Z 600. MX Z 700. MX Z 800.Needle bearing. MX Z 600. MX Z 700. MX Z 800.
-
13420888445 Piston ass'y (69.40 mm). Includes 13 - 14. MX Z 500.Piston ass'y (69.40 mm). Includes 13 - 14. MX Z 500.
-
420888446 Oversize piston ass'y (69.65 mm). MX Z 500.Oversize piston ass'y (69.65 mm). MX Z 500.
-
420889170 Piston ass'y (75.88 mm). MX Z 600.Piston ass'y (75.88 mm). MX Z 600.
-
420889171 Oversize piston ass'y (76.13 mm). MX Z 600.Oversize piston ass'y (76.13 mm). MX Z 600.
-
420889181 Piston ass'y (71.89 mm) (HO). MX Z 600.Piston ass'y (71.89 mm) (HO). MX Z 600.
-
420888298 Piston ass'y (77.88 mm). MX Z 700.Piston ass'y (77.88 mm). MX Z 700.
-
420889481 Piston ass'y (81.87 mm). MX Z 800.Piston ass'y (81.87 mm). MX Z 800.
-
14420815043 Semi-trapez ring (69.50 mm). MX Z 500.Semi-trapez ring (69.50 mm). MX Z 500.
-
420815044 Oversize semi-trapez ring (69.75 mm). MX Z 500.Oversize semi-trapez ring (69.75 mm). MX Z 500.
-
420815155 Semi-trapez ring (76.00 mm). MX Z 600.Semi-trapez ring (76.00 mm). MX Z 600.
-
420815156 Oversize semi-trapez ring (76.25 mm). MX Z 600.Oversize semi-trapez ring (76.25 mm). MX Z 600.
-
420815290 Semi-Trapez Ring (HO). MX Z 600.Semi-Trapez Ring (HO). MX Z 600.
-
420815226 Oversize semi-trapez ring. MX Z 700.Oversize semi-trapez ring. MX Z 700.
-
420815218 Oversize semi-trapez ring. MX Z 800.Oversize semi-trapez ring. MX Z 800.
-
15420916186 Gudgeon pin. MX Z 500.Gudgeon pin. MX Z 500.
-
420916410 Gudgeon pin. MX Z 600.Gudgeon pin. MX Z 600.
-
420916370 Gudgeon pin. MX Z 700. MX Z 800.Gudgeon pin. MX Z 700. MX Z 800.
-
16420945735 Piston circlip. MX Z 500.Piston circlip. MX Z 500.
-
420845106 Piston circlip. MX Z 600. MX Z 700. MX Z 800.Piston circlip. MX Z 600. MX Z 700. MX Z 800.
-
17420832590 Ball bearing 6206. MX Z 500. MX Z 600.Ball bearing 6206. MX Z 500. MX Z 600.
-
420832575 Ball bearing 6207 (HO). MX Z 600.Ball bearing 6207 (HO). MX Z 600.
-
420832575 Ball bearing 6207. MX Z 700. MX Z 800.Ball bearing 6207. MX Z 700. MX Z 800.
-
18420931940 Oil seal. MX Z 500. MX Z 600.Oil seal. MX Z 500. MX Z 600.
-
420931455 Oil seal (HO). MX Z 600.Oil seal (HO). MX Z 600.
-
420931455 Oil seal. MX Z 700. MX Z 800.Oil seal. MX Z 700. MX Z 800.
-
19420834350 Central gear (15 teeth). MX Z 500. MX Z 600.Central gear (15 teeth). MX Z 500. MX Z 600.
-
420834355 Central gear (15 teeth) (HO). MX Z 600.Central gear (15 teeth) (HO). MX Z 600.
-
420834355 Central gear (15 teeth). MX Z 700. MX Z 800.Central gear (15 teeth). MX Z 700. MX Z 800.
-
20420818666 Crankshaft (PTO side). MX Z 500. MX Z 600.Crankshaft (PTO side). MX Z 500. MX Z 600.
-
420818709 Crankshaft (PTO side) (HO). MX Z 600.Crankshaft (PTO side) (HO). MX Z 600.
-
420818709 Crankshaft (PTO side). MX Z 700.Crankshaft (PTO side). MX Z 700.
-
420819032 Crankshaft (PTO side). MX Z 800.Crankshaft (PTO side). MX Z 800.
-
21420818693 Crankshaft (MAG side). MX Z 500. MX Z 600.Crankshaft (MAG side). MX Z 500. MX Z 600.
-
420818739 Crankshaft (MAG side) (HO). MX Z 600.Crankshaft (MAG side) (HO). MX Z 600.
-
420818739 Crankshaft (MAG side). MX Z 700.Crankshaft (MAG side). MX Z 700.
-
420819061 Crankshaft (MAG side). MX Z 800.Crankshaft (MAG side). MX Z 800.
-
22420888463 Rod repair kit (MAG side). MX Z 500.Rod repair kit (MAG side). MX Z 500.
-
420888753 Rod repair kit (MAG side). MX Z 600.Rod repair kit (MAG side). MX Z 600.
-
420889093 Rod repair kit (MAG side) (HO). MX Z 600.Rod repair kit (MAG side) (HO). MX Z 600.
-
420889093 Rod repair kit (MAG side). MX Z 700.Rod repair kit (MAG side). MX Z 700.
-
420889108 Rod repair kit (MAG side). MX Z 800.Rod repair kit (MAG side). MX Z 800.
-
420888464 Rod repair kit (PTO side). MX Z 500.Rod repair kit (PTO side). MX Z 500.
-
420888754 Rod repair kit (PTO side). MX Z 600.Rod repair kit (PTO side). MX Z 600.
-
420889094 Rod repair kit (PTO side) (HO). MX Z 600.Rod repair kit (PTO side) (HO). MX Z 600.
-
420889094 Rod repair kit (PTO side). MX Z 700.Rod repair kit (PTO side). MX Z 700.
-
420889109 Rod repair kit (PTO side). MX Z 800.Rod repair kit (PTO side). MX Z 800.
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413802900 Injection oil (12 x 1 liter)Injection oil (12 x 1 liter)
-
27420899271 Petamo grease, GHY133N, 400 gPetamo grease, GHY133N, 400 g
-
28293550021 Isoflex grease, 50 gIsoflex grease, 50 g
