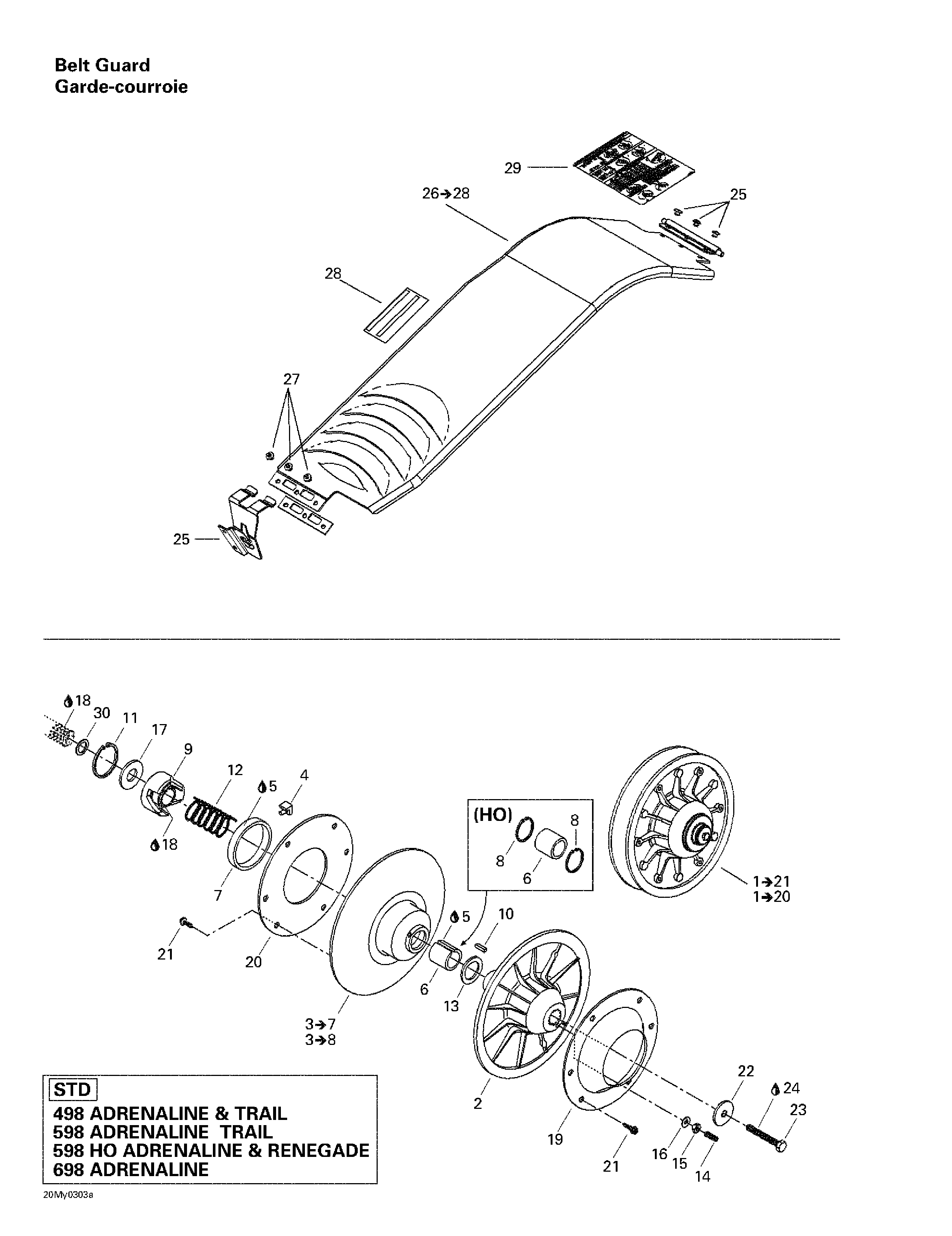

05- Driven Pulley (STD) для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
2417126477 Fixed flangeFixed flange
-
417126499 Fixed flange (HO). MX Z 600.Fixed flange (HO). MX Z 600.
-
3417126486 Sliding flange ass'y. Includes 3 - 7.Sliding flange ass'y. Includes 3 - 7.
-
3417126501 Sliding flange ass'y (HO). Includes 3 - 8. MX Z 600.Sliding flange ass'y (HO). Includes 3 - 8. MX Z 600.
-
4414918000 Cam slider shoeCam slider shoe
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6415011200 BushingBushing
-
7414876600 Garlock bushingGarlock bushing
-
417126514 Cushion (HO). MX Z 500. MX Z 700.Cushion (HO). MX Z 500. MX Z 700.
-
8371911200 Circlip (HO). MX Z 600.Circlip (HO). MX Z 600.
-
9417126590 Cam 42 Deg. STD 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.Cam 42 Deg. STD 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
-
417126337 Cam 47 Deg. STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.Cam 47 Deg. STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
-
417126704 Came (HO). MX Z 600.Came (HO). MX Z 600.
-
417126585 Cam 48/44 Deg. STD 700 ADRENALINE MX Z 500. MX Z 800.Cam 48/44 Deg. STD 700 ADRENALINE MX Z 500. MX Z 800.
-
10414820800 KeyKey
-
11371903100 CirclipCirclip
-
12414558900 Release spring (beige)Release spring (beige)
-
504152070 Release spring (white) (HO). MX Z 500. MX Z 700.Release spring (white) (HO). MX Z 500. MX Z 700.
-
13504141900 Thrust washerThrust washer
-
14206263044 Pressure screw M6 x 30Pressure screw M6 x 30
-
15232061414 Hex nut M6Hex nut M6
-
16420245370 WasherWasher
-
17504141800 WasherWasher
-
417126555 Washer (HO). MX Z 600.Washer (HO). MX Z 600.
-
18293800070 Loctite 767,antiseize lubricant, 8 ozLoctite 767,antiseize lubricant, 8 oz
-
19504142000 Cup. STD 600 ADRENALINE & TRAIL STD 700 ADRENALINE MX Z 500. MX Z 800. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 500. MX Z 700.Cup. STD 600 ADRENALINE & TRAIL STD 700 ADRENALINE MX Z 500. MX Z 800. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 500. MX Z 700.
-
20504142100 Ring. STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700. STD 700 ADRENALINE MX Z 500. MX Z 800. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.Ring. STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700. STD 700 ADRENALINE MX Z 500. MX Z 800. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.
-
21210251180 Hex. Forming Screw M5 x 11. STD 600 ADRENALINE & TRAIL STD 700 ADRENALINE MX Z 700. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.Hex. Forming Screw M5 x 11. STD 600 ADRENALINE & TRAIL STD 700 ADRENALINE MX Z 700. STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.
-
22517302322 Strength WasherStrength Washer
-
23207087544 Hex screw M8 x 75Hex screw M8 x 75
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25417300001 BracketBracket
-
26417300173 Belt guard assy. Includes 26 - 28.Belt guard assy. Includes 26 - 28.
-
27390402200 Pop rivet 3/16''Pop rivet 3/16''
-
28516001190 Security labelSecurity label
-
29516001639 Suspension ajustment decalSuspension ajustment decal
-
30504149100 Spacer. MX Z 500. MX Z 600. MX Z 700.Spacer. MX Z 500. MX Z 600. MX Z 700.
