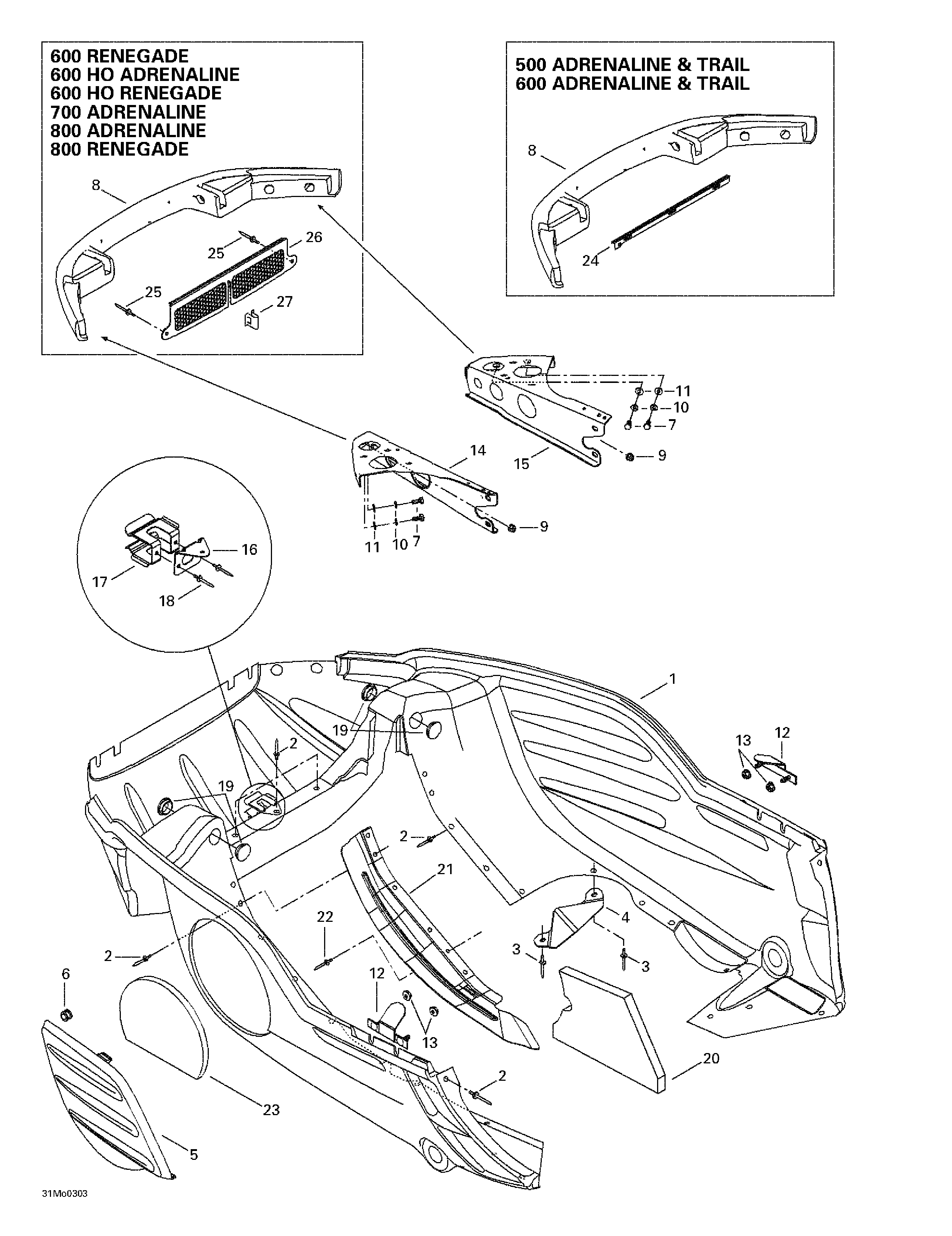

09- Bottom Pan для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1502006632 Bottom pan. B-190 YELLOWBottom pan. B-190 YELLOW
-
502006633 Bottom pan. B-160 BLACKBottom pan. B-160 BLACK
-
502006663 Bottom pan. B-176 REDBottom pan. B-176 RED
-
2293150108 Pop rivet 3/16''Pop rivet 3/16''
-
3390409600 Pop rivet 3/16''. RENEGADE MX Z 600. MX Z 800.Pop rivet 3/16''. RENEGADE MX Z 600. MX Z 800.
-
4502006637 Snow deflector. RENEGADE MX Z 600. MX Z 800.Snow deflector. RENEGADE MX Z 600. MX Z 800.
-
5502006506 Bottom pan door. B-160 BLACKBottom pan door. B-160 BLACK
-
502006511 Bottom Pan Door (Yellow) B-190. B-190 YELLOWBottom Pan Door (Yellow) B-190. B-190 YELLOW
-
502006664 Bottom pan door. B-176 REDBottom pan door. B-176 RED
-
6414036300 GrommetGrommet
-
7207161444 Hex screw M6 x 14Hex screw M6 x 14
-
8502006535 Bumper. B-190 YELLOWBumper. B-190 YELLOW
-
502006536 Bumper. B-160 BLACKBumper. B-160 BLACK
-
502006665 Bumper. B-176 REDBumper. B-176 RED
-
9233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
10234161471 Lock washer M6Lock washer M6
-
11224061121 Flat washerFlat washer
-
12502006645 BracketBracket
-
13233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
14502006597 L.h. supportL.h. support
-
15502006602 R.h. supportR.h. support
-
16502006599 Belt supportBelt support
-
17517281905 BracketBracket
-
18390402400 Pop rivet 3/16''Pop rivet 3/16''
-
19414916600 Nylon plugNylon plug
-
20502006558 Bottom pan door foamBottom pan door foam
-
21502006593 Bottom pan. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. RENEGADE MX Z 600. MX Z 800.Bottom pan. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. RENEGADE MX Z 600. MX Z 800.
-
22390402200 Pop rivet 3/16''. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. RENEGADE MX Z 600. MX Z 800.Pop rivet 3/16''. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. RENEGADE MX Z 600. MX Z 800.
-
23502006559 Door foamDoor foam
-
24502006647 Bottom pan door reinforcement. 500, 600 ADRENALINE & TRAIL MX Z 500. MX Z 600.Bottom pan door reinforcement. 500, 600 ADRENALINE & TRAIL MX Z 500. MX Z 600.
-
25293150103 Pop rivet 3/16''. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.Pop rivet 3/16''. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.
-
26502006697 Center grille. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.Center grille. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.
-
27517302785 Clip. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.Clip. 600 HO, 700, 800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 600, 600 HO, 800 RENEGADE MX Z 600. MX Z 800.
