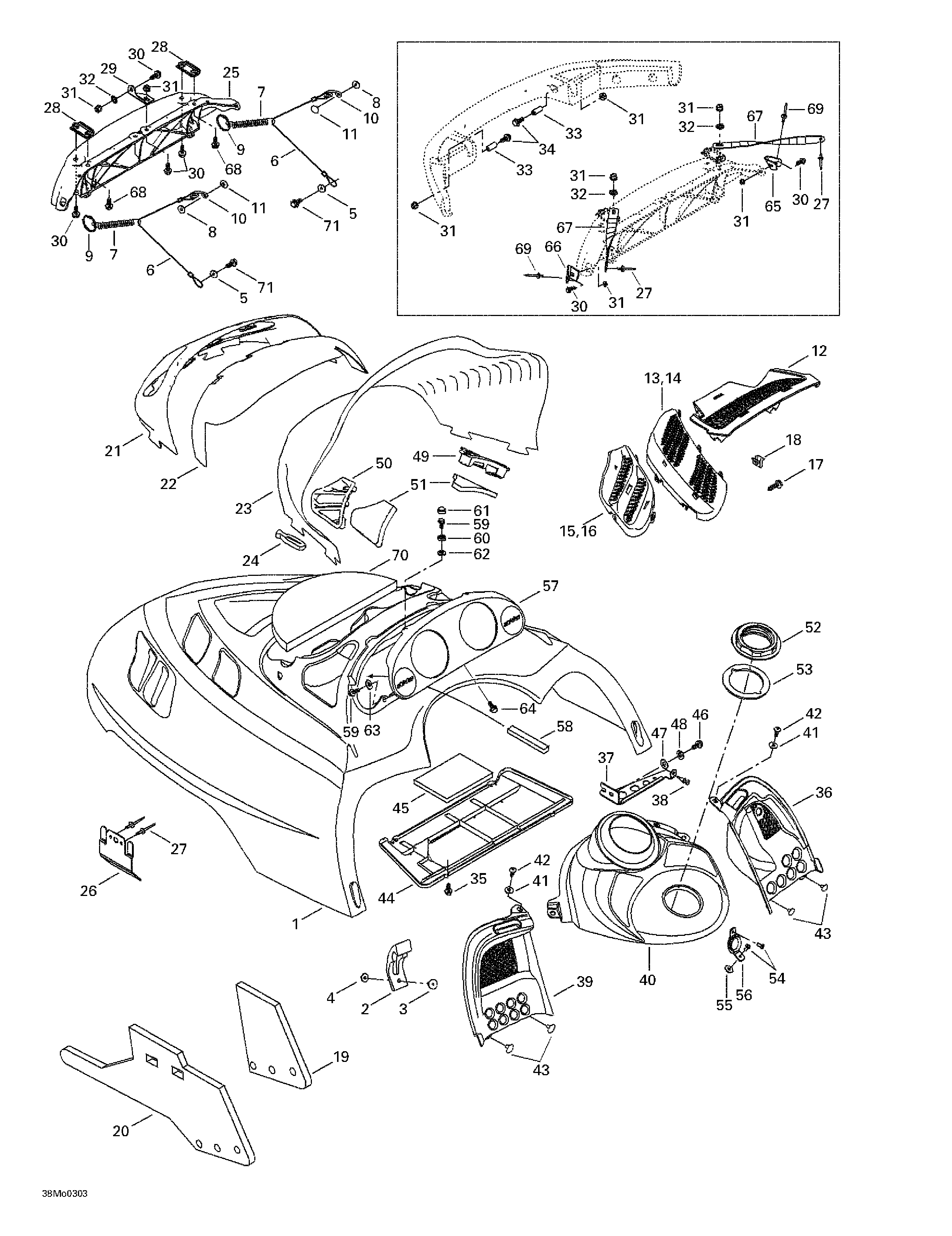

09- Cab, Console для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1517302726 Hood. RED (B-176)Hood. RED (B-176)
-
517302740 Hood. BLACK (B-160)Hood. BLACK (B-160)
-
517302830 Hood. BLACK AND YELLOW (B-2T/160)Hood. BLACK AND YELLOW (B-2T/160)
-
2570027100 Hood latchHood latch
-
3293150108 Pop rivet 3/16''Pop rivet 3/16''
-
4517124300 WasherWasher
-
5391301600 WasherWasher
-
6415093900 Retainer cableRetainer cable
-
7415043300 SpringSpring
-
8517124300 WasherWasher
-
9415058300 RingRing
-
10517262800 BracketBracket
-
11293150104 Pop rivet 3/16''Pop rivet 3/16''
-
12517302026 Center grillCenter grill
-
13517302028 R.h. intermediate grill. 500 MX Z 500.R.h. intermediate grill. 500 MX Z 500.
-
517302671 R.h. intermediate grill. 600 / 700 / 800 MX Z 600. MX Z 700. MX Z 800.R.h. intermediate grill. 600 / 700 / 800 MX Z 600. MX Z 700. MX Z 800.
-
14517302031 L.h. intermediate grill. 500 MX Z 500.L.h. intermediate grill. 500 MX Z 500.
-
517302672 L.h. intermediate grill. 600 / 700 / 800 MX Z 600. MX Z 700. MX Z 800.L.h. intermediate grill. 600 / 700 / 800 MX Z 600. MX Z 700. MX Z 800.
-
15517302034 R.h. side grillR.h. side grill
-
16517302036 L.h. side grillL.h. side grill
-
17732601210 Hex flanged screw #8 x 3/8Hex flanged screw #8 x 3/8
-
18517302785 ClipClip
-
19517302675 R.h. side foamR.h. side foam
-
20517302630 L.h. side foamL.h. side foam
-
21517302582 Headlamp moulding. BLACK (B-160)Headlamp moulding. BLACK (B-160)
-
517302648 Headlamp moulding. YELLOW (B-190)Headlamp moulding. YELLOW (B-190)
-
22517302003 Windshield SupportWindshield Support
-
23517302022 Medium WindshieldMedium Windshield
-
24570023800 Windshield LatchWindshield Latch
-
25517302631 Half hingeHalf hinge
-
26517302615 Hood guideHood guide
-
27390910000 Pop rivet 3/16''Pop rivet 3/16''
-
28517302176 Side hinge plateSide hinge plate
-
29517302045 Center hinge plateCenter hinge plate
-
30207661684 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
31233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
32250200000 Washer M6Washer M6
-
33517302179 BushingBushing
-
34207663544 Hex flanged screw M6 x 35Hex flanged screw M6 x 35
-
35243141640 Hex flanged screw M4.8 x 16Hex flanged screw M4.8 x 16
-
36517302005 R.h. consoleR.h. console
-
37517302621 R.h. console supportR.h. console support
-
38517302624 Rubber stopperRubber stopper
-
39517302006 L.h. consoleL.h. console
-
40517302728 Center console. RENEGADE (B-160) MX Z 600. MX Z 800.Center console. RENEGADE (B-160) MX Z 600. MX Z 800.
-
517302729 Center console. TRAIL & ADRENALINE (B-160)Center console. TRAIL & ADRENALINE (B-160)
-
517302783 Center console. RENEGADE (B-190) MX Z 600. MX Z 800.Center console. RENEGADE (B-190) MX Z 600. MX Z 800.
-
517302784 Center console. TRAIL & ADRENALINE (B-190)Center console. TRAIL & ADRENALINE (B-190)
-
41391301600 WasherWasher
-
42732600030 ScrewScrew
-
43293150103 Pop rivet 3/16''Pop rivet 3/16''
-
44517302836 Air intake plateAir intake plate
-
45517302425 Secondary foamSecondary foam
-
46210261280 Hex flanged screw M6 x 12Hex flanged screw M6 x 12
-
47234061410 Flat washer M6Flat washer M6
-
48234161471 Stop washer M6Stop washer M6
-
49517302024 R.h. air intake grillR.h. air intake grill
-
50517302025 L.h. air intake grillL.h. air intake grill
-
51517302151 Air intake foamAir intake foam
-
52517302043 Console nutConsole nut
-
53293250029 GasketGasket
-
54390409400 Rivet-pop 5/32''Rivet-pop 5/32''
-
55517302286 Rubber stopperRubber stopper
-
56517302129 Rope guideRope guide
-
57517302760 Indicator supportIndicator support
-
58517302420 FoamFoam
-
59241140060 Hex flanged screw K40 x 10Hex flanged screw K40 x 10
-
60414436800 Retainer capRetainer cap
-
61414436900 Snap capSnap cap
-
62234042600 Flat washer M4Flat washer M4
-
63517124300 WasherWasher
-
64732601210 Hex flanged screw #8 x 3/8Hex flanged screw #8 x 3/8
-
65517302254 R.h. SupportR.h. Support
-
66517302255 L.h. SupportL.h. Support
-
67517302837 Hood clampHood clamp
-
68207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
69390406500 Pop rivet 3/16''Pop rivet 3/16''
-
70517302317 Center foam. C/U (2 TONES)Center foam. C/U (2 TONES)
-
71241151640 Tapping screw #12 x 1/2Tapping screw #12 x 1/2
