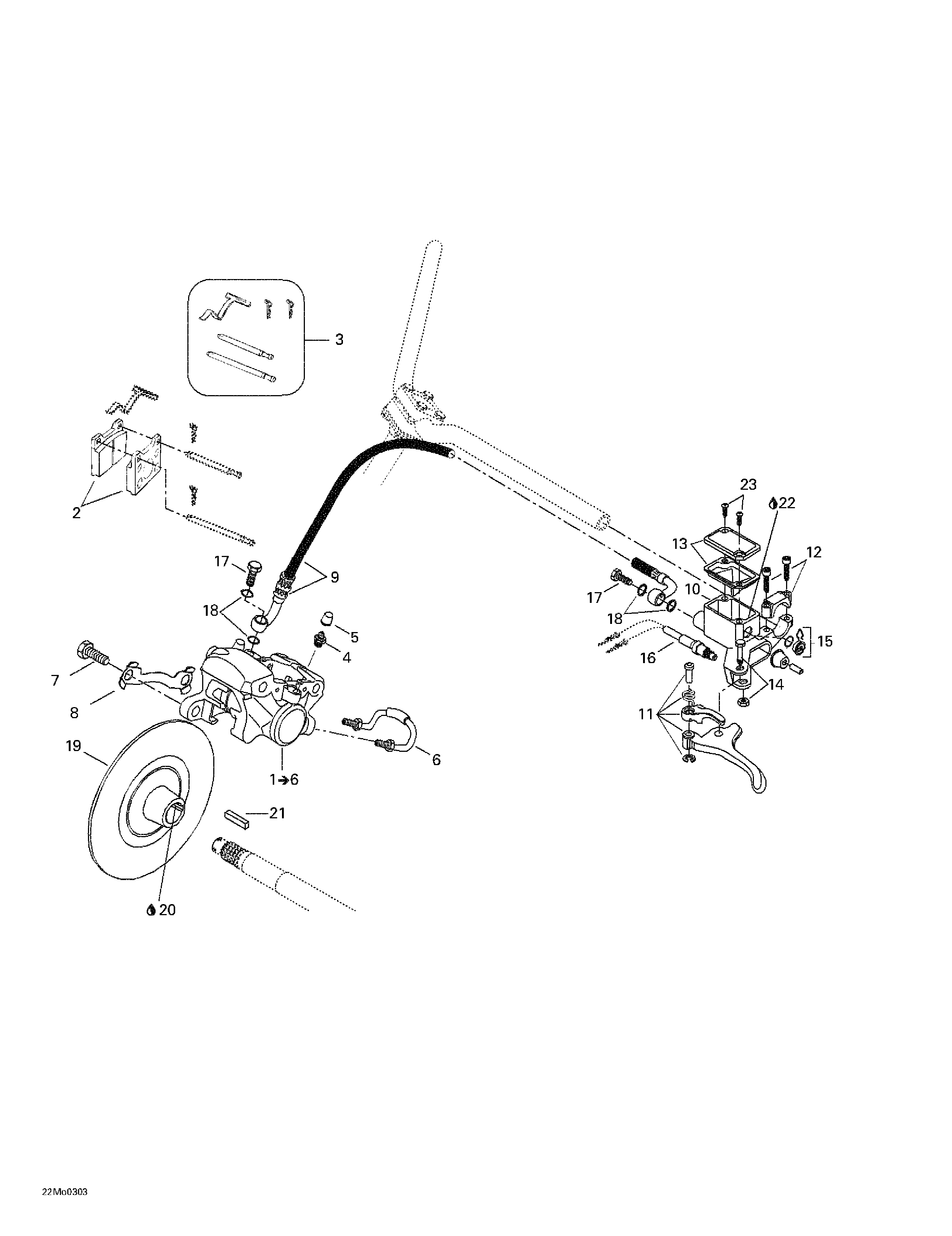

06- Hydraulic Brake для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1507032349 Caliper. Includes 1 - 6. 500 ADRENALINE MX Z 500.Caliper. Includes 1 - 6. 500 ADRENALINE MX Z 500.
-
507032351 Caliper. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE & RENEGADE MX Z 600. 700 ADRENALINE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.Caliper. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE & RENEGADE MX Z 600. 700 ADRENALINE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.
-
2415053600 Brake pad kit. ADRENALINE & TRAILBrake pad kit. ADRENALINE & TRAIL
-
415084600 Brake pad kit. RENEGADE MX Z 700. MX Z 800.Brake pad kit. RENEGADE MX Z 700. MX Z 800.
-
3414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Bleeder screwBleeder screw
-
5414989700 CapCap
-
6414989900 Rigid tubeRigid tube
-
7207103544 Hex screw M10 x 35Hex screw M10 x 35
-
8507032316 Tab lockTab lock
-
9507032237 Hose. 500 ADRENALINE MX Z 500.Hose. 500 ADRENALINE MX Z 500.
-
507032237 Hose. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE MX Z 600. 700 ADRENALINE MX Z 700. 800 ADRENALINE MX Z 800.Hose. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE MX Z 600. 700 ADRENALINE MX Z 700. 800 ADRENALINE MX Z 800.
-
507032220 Hose. 600 RENEGADE. 600 HO RENEGADE MX Z 600. 800 RENEGADE MX Z 800.Hose. 600 RENEGADE. 600 HO RENEGADE MX Z 600. 800 RENEGADE MX Z 800.
-
10507032362 Master cylinder. Includes 10 - 16. 500 ADRENALINE MX Z 500. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE 700 ADRENALINE MX Z 700. 800 ADRENALINE 600 RENEGADE. 600 HO RENEGADE MX Z 600. 800 RENEGADE MX Z 800.Master cylinder. Includes 10 - 16. 500 ADRENALINE MX Z 500. 600 ADRENALINE & TRAIL. 600 HO ADRENALINE 700 ADRENALINE MX Z 700. 800 ADRENALINE 600 RENEGADE. 600 HO RENEGADE MX Z 600. 800 RENEGADE MX Z 800.
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp ass'yClamp ass'y
-
13415029900 CapCap
-
14415030000 Lever pinLever pin
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17414920500 Banjo boltBanjo bolt
-
18414920600 Rondelle pour connectionRondelle pour connection
-
19507031300 Brake disk. 600 ADRENALINE & TRAIL X Z 700. 600 HO ADRENALINE & RENEGADE MX Z 600. 700 ADRENALINE MX Z 500. MX Z 800. 800 ADRENALINE & RENEGADE MX Z 500..Brake disk. 600 ADRENALINE & TRAIL X Z 700. 600 HO ADRENALINE & RENEGADE MX Z 600. 700 ADRENALINE MX Z 500. MX Z 800. 800 ADRENALINE & RENEGADE MX Z 500..
-
507032203 Brake disk. 500 ADRENALINE MX Z 500. MX Z 600.Brake disk. 500 ADRENALINE MX Z 500. MX Z 600.
-
20293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
21507021300 KeyKey
-
22293600063 Brake fluid, SRF (DOT 4)Brake fluid, SRF (DOT 4)
-
293600062 Brake fluid, GTLMA (DOT 4) 12 x 354 mlBrake fluid, GTLMA (DOT 4) 12 x 354 ml
-
23216141260 ScrewScrew
