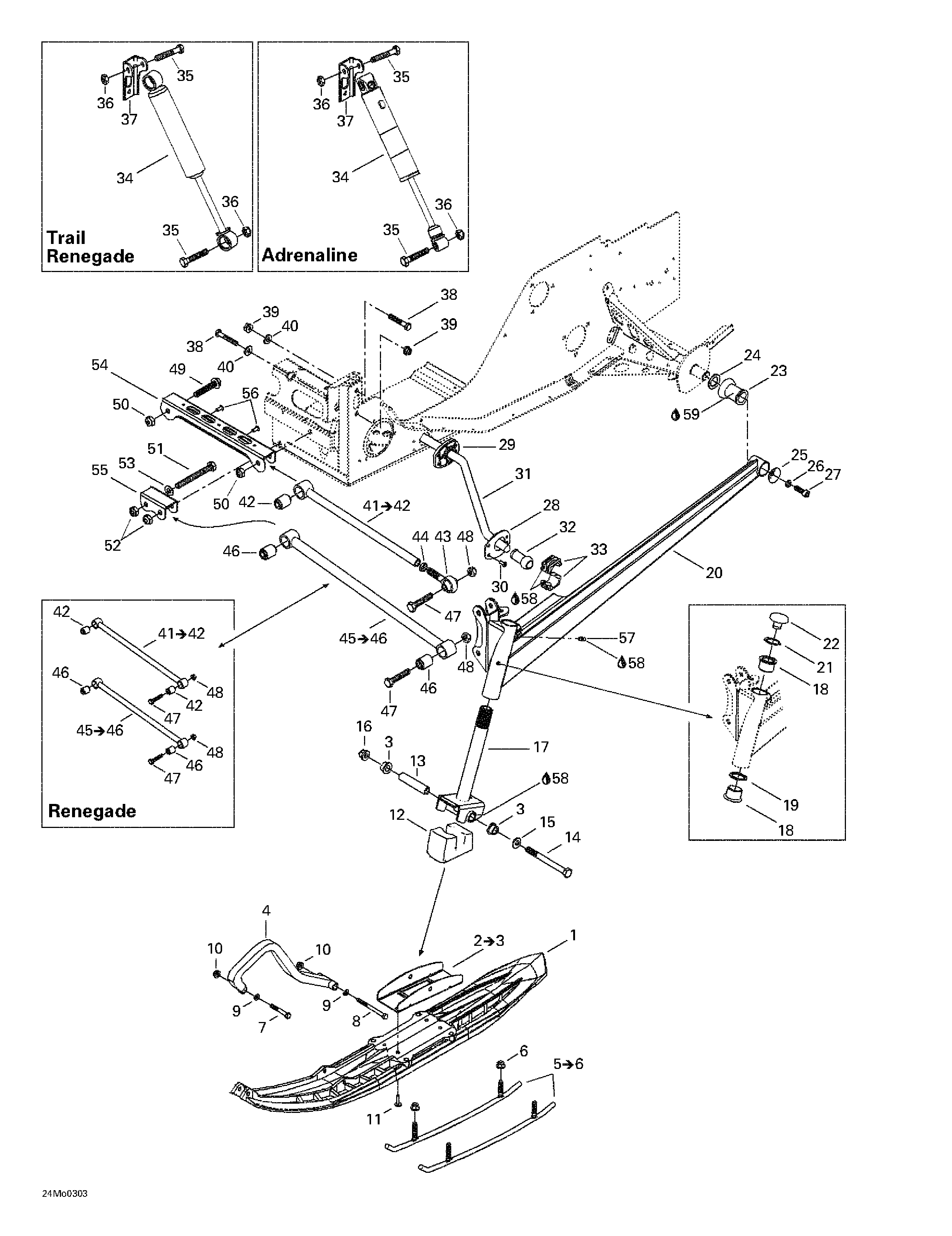

07- Front Suspension And Ski для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1505070727 Precision ski (black)Precision ski (black)
-
505070831 Precision ski (yellow)Precision ski (yellow)
-
2505070764 Bridge ass'y. Includes 2 - 3.Bridge ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4505070917 Handle (yellow)Handle (yellow)
-
505070963 Handle (black)Handle (black)
-
5860504900 Carbide runner kit. Includes 5 - 6.Carbide runner kit. Includes 5 - 6.
-
6233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
7207085044 Hex screw M8 x 50Hex screw M8 x 50
-
8207089044 Hex screw M8 x 90Hex screw M8 x 90
-
9234081410 Flat washer M8Flat washer M8
-
10233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
11293150090 Pop rivet 1/4''Pop rivet 1/4''
-
12506151233 Ski stopperSki stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex screw M10 x 110Hex screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Flanged nut M10Flanged nut M10
-
17506151234 Ski leg. ADRENALINE & TRAILSki leg. ADRENALINE & TRAIL
-
505070672 Ski leg. RENEGADE MX Z 600. MX Z 800.Ski leg. RENEGADE MX Z 600. MX Z 800.
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 R.h. armR.h. arm
-
505070646 L.h. armL.h. arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506079600 CupCup
-
26234181401 Stop washerStop washer
-
27205582544 Socket screw M8 x 25Socket screw M8 x 25
-
28505070542 PlatePlate
-
29505070139 Bushing. ADRENALINE & TRAILBushing. ADRENALINE & TRAIL
-
505070191 Bushing. RENEGADE MX Z 600. MX Z 800.Bushing. RENEGADE MX Z 600. MX Z 800.
-
30390407200 Pop rivet 3/16''Pop rivet 3/16''
-
31505070563 Stabilisator. ADRENALINE & TRAILStabilisator. ADRENALINE & TRAIL
-
505070774 Stabilisator. RENEGADE MX Z 600. MX Z 800.Stabilisator. RENEGADE MX Z 600. MX Z 800.
-
32505070819 Ball joint. ADRENALINE & TRAILBall joint. ADRENALINE & TRAIL
-
505070816 Ball joint. RENEGADE MX Z 600. MX Z 800.Ball joint. RENEGADE MX Z 600. MX Z 800.
-
33505070817 Sliding blockSliding block
-
34505071111 Front shock. ADRENALINEFront shock. ADRENALINE
-
505071127 Front shock. EUROPE-ADRENALINE MX Z 500.Front shock. EUROPE-ADRENALINE MX Z 500.
-
505071113 Front shock. TRAIL MX Z 500. MX Z 600.Front shock. TRAIL MX Z 500. MX Z 600.
-
505071112 Front shock. RENEGADE MX Z 600. MX Z 800.Front shock. RENEGADE MX Z 600. MX Z 800.
-
505071128 Front shock. EUROPE-RENEGADE MX Z 800.Front shock. EUROPE-RENEGADE MX Z 800.
-
35207005544 Hex screw M10 x 55Hex screw M10 x 55
-
36233601416 Self locking elastic nut M10Self locking elastic nut M10
-
37518317518 R.h. shock bracketR.h. shock bracket
-
518317519 L.h. shock bracketL.h. shock bracket
-
38207085044 Hex screw M8 x 50Hex screw M8 x 50
-
39233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
40506151245 WasherWasher
-
41505070214 Upper arm ass'y. Includes 41 - 42. ADRENALINE & TRAILUpper arm ass'y. Includes 41 - 42. ADRENALINE & TRAIL
-
505070746 Upper arm ass'y. RENEGADE MX Z 600. MX Z 800.Upper arm ass'y. RENEGADE MX Z 600. MX Z 800.
-
42505070025 Bushing. ADRENALINE & TRAIL. RENEGADE MX Z 600. MX Z 800.Bushing. ADRENALINE & TRAIL. RENEGADE MX Z 600. MX Z 800.
-
43505071069 Ball joint. ADRENALINE & TRAILBall joint. ADRENALINE & TRAIL
-
44732610019 Hex jam nut M12. ADRENALINE & TRAILHex jam nut M12. ADRENALINE & TRAIL
-
45505070402 Lower arm ass'y. Includes 45 - 46. ADRENALINE & TRAILLower arm ass'y. Includes 45 - 46. ADRENALINE & TRAIL
-
505070748 Lower arm ass'y. RENEGADE MX Z 600. MX Z 800.Lower arm ass'y. RENEGADE MX Z 600. MX Z 800.
-
46505070025 BushingBushing
-
47207005544 Hex screw M10 x 55Hex screw M10 x 55
-
48233601416 Self locking elastic nut M10Self locking elastic nut M10
-
49207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
50233601416 Self locking elastic nut M10Self locking elastic nut M10
-
51207009544 Hex screw M10 x 95Hex screw M10 x 95
-
52233601416 Self locking elastic nut M10Self locking elastic nut M10
-
53234001410 Flat washer M10Flat washer M10
-
54505070010 Upper arm bracketUpper arm bracket
-
55505070011 Lower arm bracketLower arm bracket
-
56390402200 Pop rivet 3/16''Pop rivet 3/16''
-
57408200700 Grease fittingGrease fitting
-
58219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
59293550014 Grease, Super lubeGrease, Super lube
