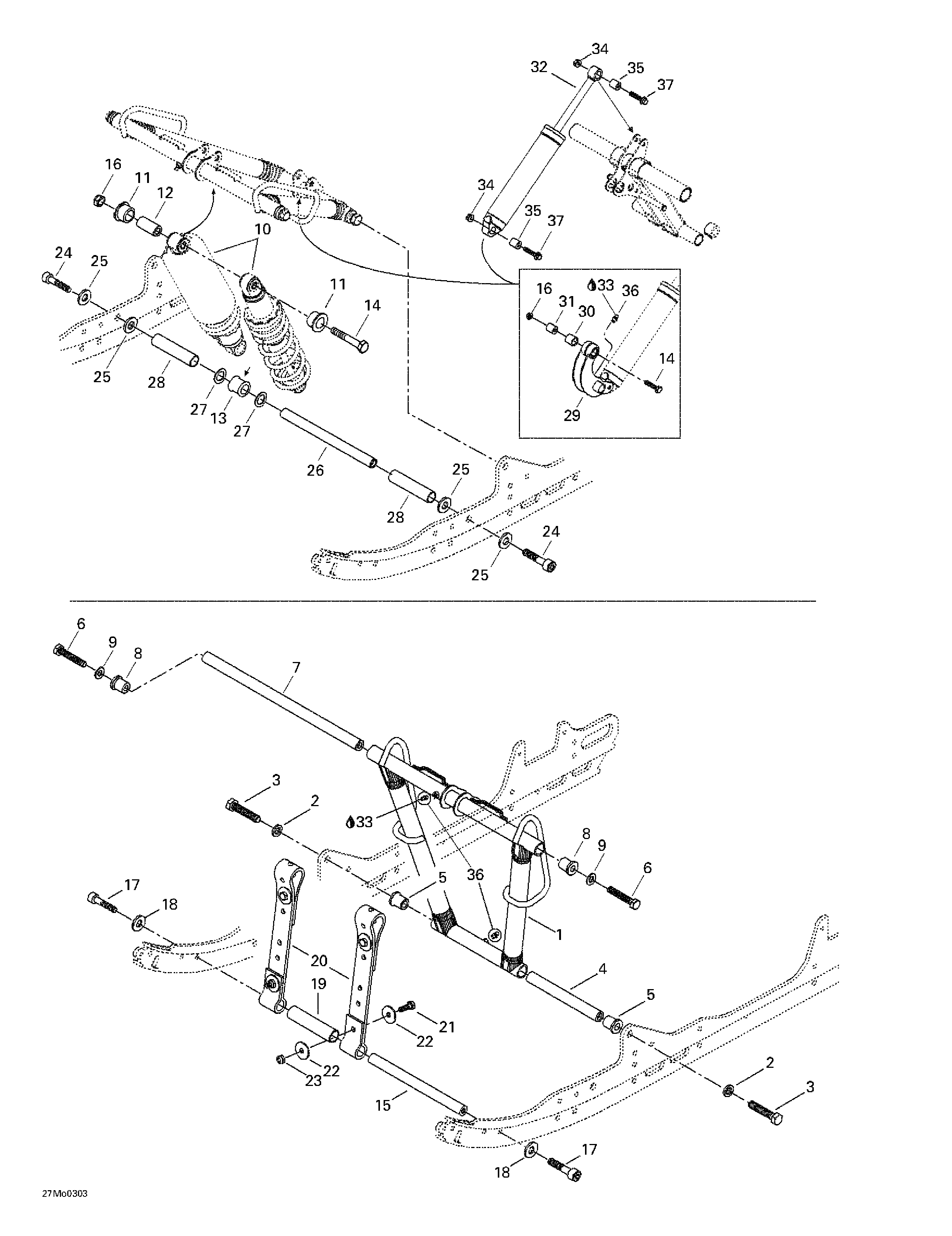

08- Front Arm для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1503189292 Front armFront arm
-
2503189276 WasherWasher
-
3207226044 Hex screw M12 x 60 (scotch grip)Hex screw M12 x 60 (scotch grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex screw M10 x 55 (scotch grip)Hex screw M10 x 55 (scotch grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503189763 Center shock (TRAIL). MX Z 500. MX Z 600.Center shock (TRAIL). MX Z 500. MX Z 600.
-
503190008 Center shock (ADRENALINE)Center shock (ADRENALINE)
-
503190018 Center shock (RENEGADE). MX Z 600. MX Z 800.Center shock (RENEGADE). MX Z 600. MX Z 800.
-
503190201 Center shock (EUROPE-ADRENALINE). MX Z 500.Center shock (EUROPE-ADRENALINE). MX Z 500.
-
503190202 Center shock (EUROPE-RENEGADE). MX Z 800.Center shock (EUROPE-RENEGADE). MX Z 800.
-
11503189117 CushionCushion
-
12503189282 BushingBushing
-
13503189271 CushionCushion
-
14207005044 Hex screw M10 x 50Hex screw M10 x 50
-
15503189562 AxleAxle
-
16233601416 Elastic stop nut M10Elastic stop nut M10
-
17205503544 Socket head screw M10 x 35 (scotch grip)Socket head screw M10 x 35 (scotch grip)
-
18503189564 Washer 10 mmWasher 10 mm
-
19503189265 SpacerSpacer
-
20503189362 Stopper strapStopper strap
-
21207182544 Hex screw M8 x 25Hex screw M8 x 25
-
22224081301 Flat washerFlat washer
-
23232581414 Elastic stop nut M8Elastic stop nut M8
-
24205523544 Socket head screw M12 x 35 (scotch grip)Socket head screw M12 x 35 (scotch grip)
-
25503189276 WasherWasher
-
26503189272 Center shock shaftCenter shock shaft
-
27503189273 WasherWasher
-
28503189274 SpacerSpacer
-
29503189845 RockerRocker
-
30503189388 Rocker axleRocker axle
-
31503189626 CushionCushion
-
32503189764 Rear shock (TRAIL). MX Z 500. MX Z 600.Rear shock (TRAIL). MX Z 500. MX Z 600.
-
503190007 Rear shock (ADRENALINE)Rear shock (ADRENALINE)
-
503190207 Rear shock (EUROPE-ADRENALINE). MX Z 500.Rear shock (EUROPE-ADRENALINE). MX Z 500.
-
503190011 Rear shock (RENEGADE). MX Z 600. MX Z 800.Rear shock (RENEGADE). MX Z 600. MX Z 800.
-
503190203 Rear shock (EUROPE-RENEGADE). MX Z 800.Rear shock (EUROPE-RENEGADE). MX Z 800.
-
33219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
34233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
35414936000 CushionCushion
-
36408200700 Grease fittingGrease fitting
-
37207684044 Hex flanged screw M8 x 40Hex flanged screw M8 x 40
