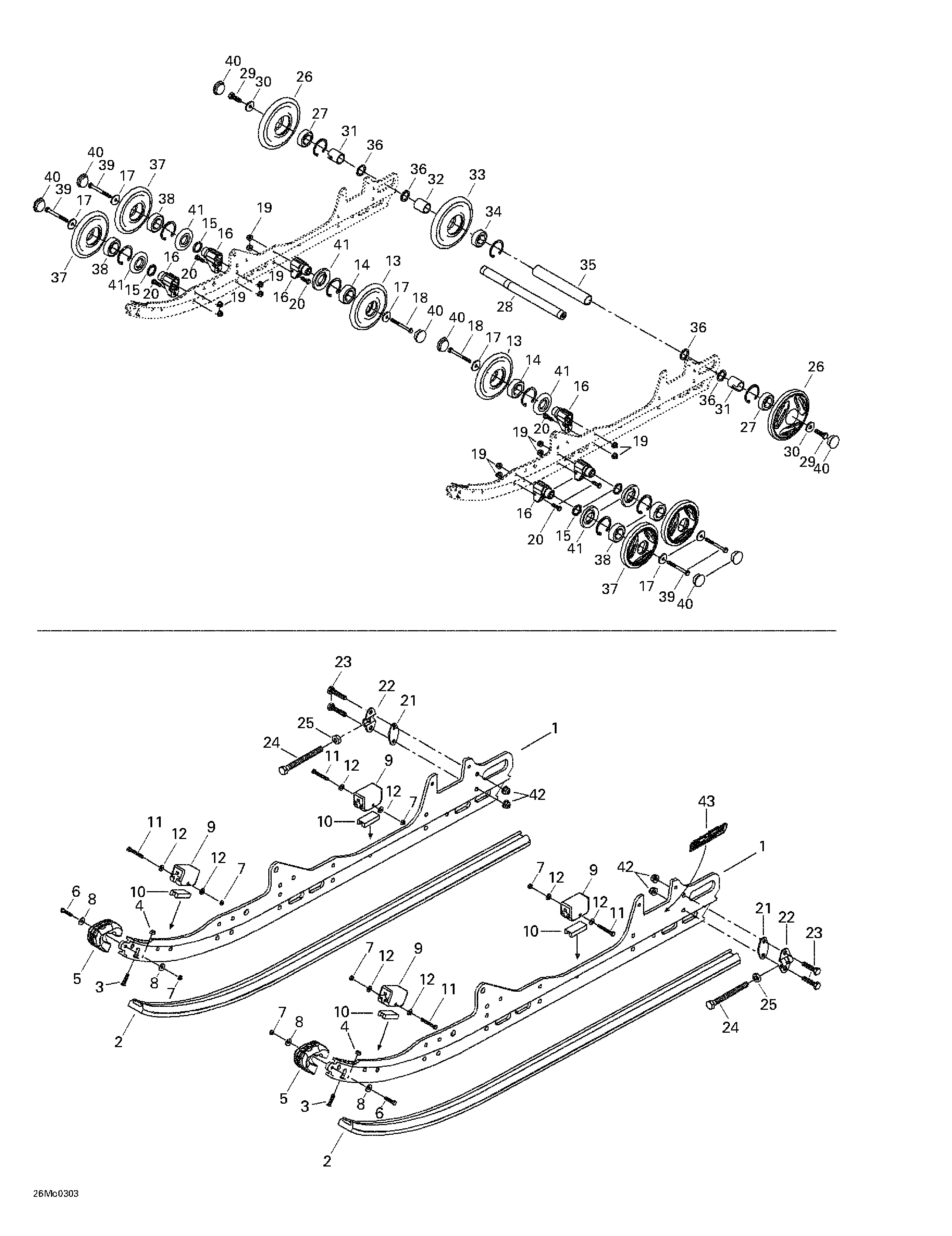

08- Rear Suspension для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1503189830 RunnerRunner
-
503190115 Runner (Renegade). MX Z 600. MX Z 800.Runner (Renegade). MX Z 600. MX Z 800.
-
2503189643 ShoeShoe
-
503189639 Shoe (black) (Renegade). MX Z 600. MX Z 800.Shoe (black) (Renegade). MX Z 600. MX Z 800.
-
503189869 Shoe (yellow) (Renegade). MX Z 600. MX Z 800.Shoe (yellow) (Renegade). MX Z 600. MX Z 800.
-
503189862 Shoe (Yellow) (Trail). MX Z 500. MX Z 600.Shoe (Yellow) (Trail). MX Z 500. MX Z 600.
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 ProtectorProtector
-
6207152544 Hex screw M5 x 25Hex screw M5 x 25
-
7232551414 Elastic stop nut M5Elastic stop nut M5
-
8391301600 Flat washerFlat washer
-
9570063000 Rubber stopperRubber stopper
-
10572084800 Stopper reinforcementStopper reinforcement
-
11207054044 Hex screw M5 x 40Hex screw M5 x 40
-
12391301700 Flat washerFlat washer
-
13503190216 Wheel 135 ass'y. Includes 13 - 14.Wheel 135 ass'y. Includes 13 - 14.
-
14405404500 Ball bearing 6205Ball bearing 6205
-
15503173700 WasherWasher
-
16503189679 SupportSupport
-
17503183100 WasherWasher
-
18207088044 Hex screw M8 x 80Hex screw M8 x 80
-
19233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
20207182544 Hex screw M8 x 25Hex screw M8 x 25
-
21503189160 Tensioner spacerTensioner spacer
-
22503155300 TensionerTensioner
-
23207063044 Hex screw M6 x 30Hex screw M6 x 30
-
24230100044 Hex screw M10 x 100Hex screw M10 x 100
-
25233601416 Elastic stop nut M10Elastic stop nut M10
-
26503189566 Wheel 165 ass'y (yellow). Includes 26 - 27.Wheel 165 ass'y (yellow). Includes 26 - 27.
-
27405404500 Ball bearing 6205Ball bearing 6205
-
28503160700 Rear axleRear axle
-
29250000019 Hex screwHex screw
-
30503183300 WasherWasher
-
31503189809 Outer spacerOuter spacer
-
32503182900 Inner spacerInner spacer
-
33503189568 Wheel 165 ass'y. Includes 33 - 34.Wheel 165 ass'y. Includes 33 - 34.
-
34405404500 Ball bearing 6205Ball bearing 6205
-
35503183000 Central spacerCentral spacer
-
36503180400 WasherWasher
-
37503190215 Wheel 135 ass'y. Includes 37 - 38.Wheel 135 ass'y. Includes 37 - 38.
-
38405404500 Ball bearing 6205Ball bearing 6205
-
39207088544 Hex screw M8 x 85Hex screw M8 x 85
-
40570063600 Wheel capWheel cap
-
41572089000 Labyrinth sealLabyrinth seal
-
42233261414 Elastic flanged stop nut M6Elastic flanged stop nut M6
-
43516001248 Suspension decalSuspension decal
