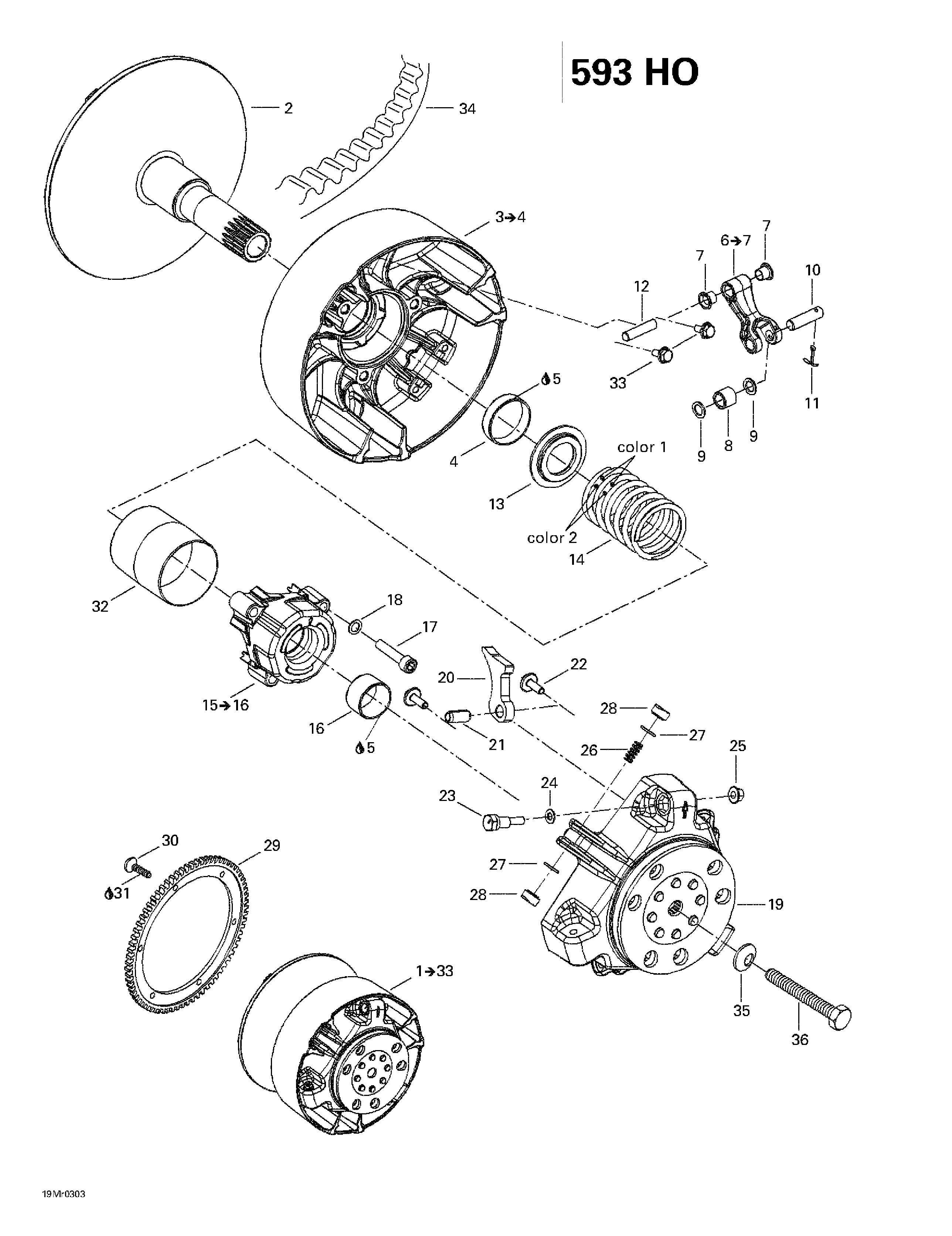

05- Drive Pulley (593 HO) для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
2417222294 Fixed flange ass'y. MX Z 600.Fixed flange ass'y. MX Z 600.
-
3417222181 Sliding flange ass'y. Includes 3 - 4. MX Z 600.Sliding flange ass'y. Includes 3 - 4. MX Z 600.
-
4417006900 Bushing. MX Z 600.Bushing. MX Z 600.
-
5413703100 Loctite 609, 10 ml. MX Z 600.Loctite 609, 10 ml. MX Z 600.
-
6417222306 Lever ass'y. Includes 6 - 7. MX Z 600.Lever ass'y. Includes 6 - 7. MX Z 600.
-
7417004305 Bushing. MX Z 600.Bushing. MX Z 600.
-
8417003900 Roller ass'y. MX Z 600.Roller ass'y. MX Z 600.
-
9417004302 Stopper washer. MX Z 600.Stopper washer. MX Z 600.
-
10417004308 Pin. MX Z 600.Pin. MX Z 600.
-
11732958001 Cotter pin. MX Z 600.Cotter pin. MX Z 600.
-
12417009202 Lever axle. MX Z 600.Lever axle. MX Z 600.
-
13417222312 Spring seat. MX Z 600.Spring seat. MX Z 600.
-
14415034900 Spring (violet/blue). MX Z 600.Spring (violet/blue). MX Z 600.
-
15417007500 Spring cover ass'y. Includes 15 - 16. MX Z 600.Spring cover ass'y. Includes 15 - 16. MX Z 600.
-
16417009204 Bushing. MX Z 600.Bushing. MX Z 600.
-
17205084044 Socket screw M8 x 40. MX Z 600.Socket screw M8 x 40. MX Z 600.
-
18250200009 Self stop spring washer M8. MX Z 600.Self stop spring washer M8. MX Z 600.
-
19417222214 Regulator cup. MX Z 600.Regulator cup. MX Z 600.
-
20417222596 Ramp 410. MX Z 600.Ramp 410. MX Z 600.
-
21250400009 Rolled pin. MX Z 600.Rolled pin. MX Z 600.
-
22250000059 Hex flanged screw M6 x 18. MX Z 600.Hex flanged screw M6 x 18. MX Z 600.
-
23417005500 Calibration screw. MX Z 600.Calibration screw. MX Z 600.
-
24417005600 Washer. MX Z 600.Washer. MX Z 600.
-
25233061414 Hex flanged nut M6. MX Z 600.Hex flanged nut M6. MX Z 600.
-
26417005700 Spring. MX Z 600.Spring. MX Z 600.
-
27732401030 O-ring. MX Z 600.O-ring. MX Z 600.
-
28417005800 Slider shoe. MX Z 600.Slider shoe. MX Z 600.
-
29417222321 Ring gear. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.Ring gear. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.
-
30250000049 Hex socket torx screw M8 x 14.5. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.Hex socket torx screw M8 x 14.5. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.
-
31293800005 Loctite 271, 10 ml. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.Loctite 271, 10 ml. RER 600 HO ADRENALINE ELECTRIC. RER 600 HO RENEGADE ELECTRIC MX Z 600.
-
32417009205 Guard. MX Z 600.Guard. MX Z 600.
-
33210361296 Hex forming screw M6 x 12. MX Z 600.Hex forming screw M6 x 12. MX Z 600.
-
34417300197 Drive Belt. MX Z 600.Drive Belt. MX Z 600.
-
35250200006 Conical spring washerConical spring washer
-
36417120000 Pulley drive boltPulley drive bolt
