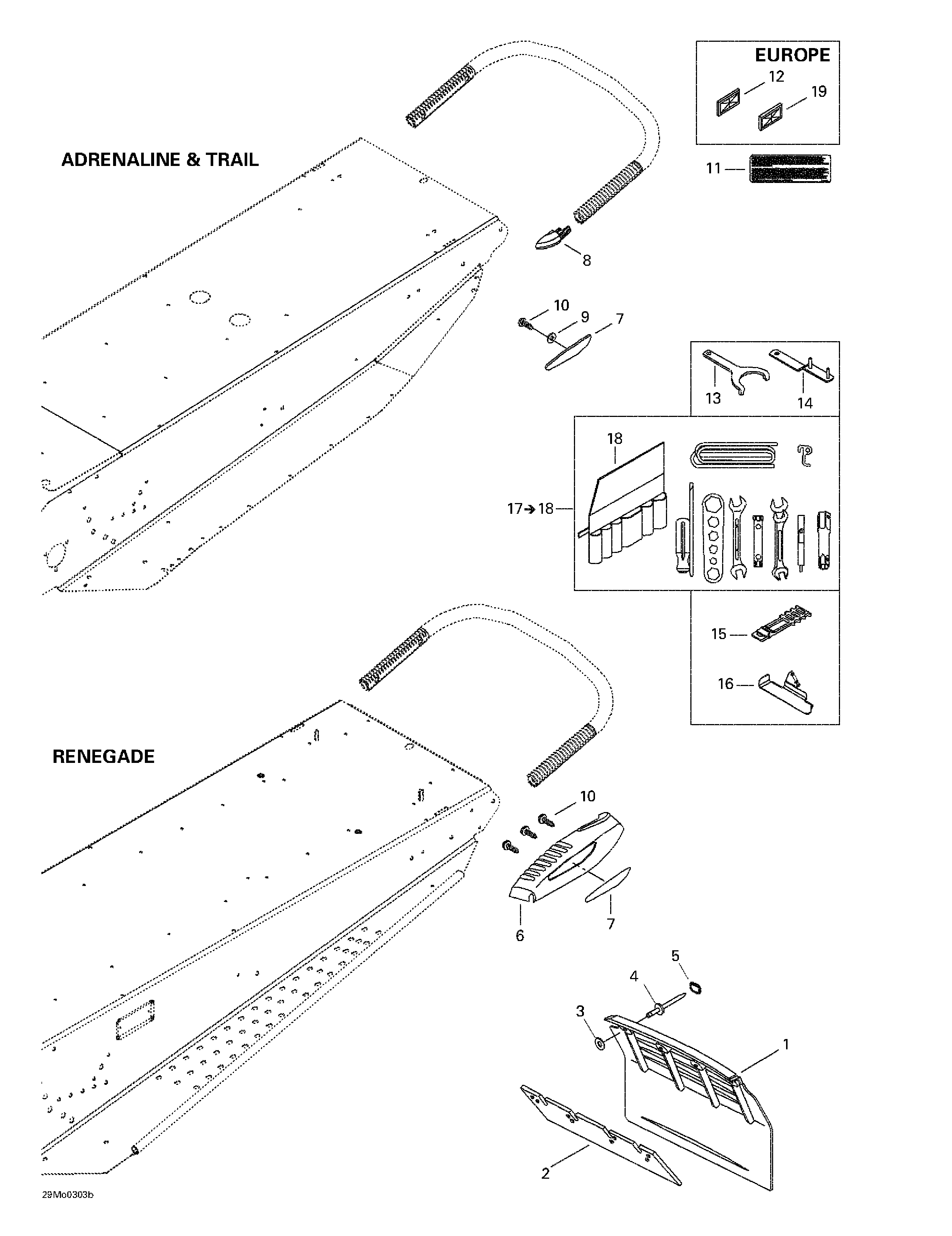

09- Accessories для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1572103803 Snow guard. ADRENALINE & TRAILSnow guard. ADRENALINE & TRAIL
-
520000000 Snow guard. RENEGADE (EUROPE)Snow guard. RENEGADE (EUROPE)
-
572092100 Snow guard. RENEGADE STD (C/U)Snow guard. RENEGADE STD (C/U)
-
572103804 Snow guard. RENEGADE RER (C/U)Snow guard. RENEGADE RER (C/U)
-
2572108200 ReinforcementReinforcement
-
3517225900 Flat washerFlat washer
-
4293150087 Pop rivet 3/16''Pop rivet 3/16''
-
5415073300 CapCap
-
6572097300 R.h. moulding. RENEGADER.h. moulding. RENEGADE
-
572097400 L.h. moulding. RENEGADEL.h. moulding. RENEGADE
-
7414510100 Reflector (red). ADRENALINE & TRAIL (C/U)Reflector (red). ADRENALINE & TRAIL (C/U)
-
516000237 R.h. reflector. RENEGADE (C/U)R.h. reflector. RENEGADE (C/U)
-
516000241 R.h. reflector. RENEGADE (EUROPE)R.h. reflector. RENEGADE (EUROPE)
-
516000238 LH reflector. RENEGADE (C/U)LH reflector. RENEGADE (C/U)
-
516000242 L.h. reflector. RENEGADE (EUROPE)L.h. reflector. RENEGADE (EUROPE)
-
8520000272 Cap. ADRENALINE & TRAILCap. ADRENALINE & TRAIL
-
9234451418 Washer M5. ADRENALINE & TRAIL (C/U)Washer M5. ADRENALINE & TRAIL (C/U)
-
10208651041 Phillips screw M5 x 10. ADRENALINE & TRAIL (C/U)Phillips screw M5 x 10. ADRENALINE & TRAIL (C/U)
-
243141640 Hex flanged plastite screw M4.8 x 16. RENEGADEHex flanged plastite screw M4.8 x 16. RENEGADE
-
11516001681 Pending labelPending label
-
12520000271 Reflector (amber). EUROPEReflector (amber). EUROPE
-
13529032900 Adjustment wrenchAdjustment wrench
-
14520000126 Adjustment wrenchAdjustment wrench
-
15570069700 LatchLatch
-
16518321999 Tool kit supportTool kit support
-
17529035596 Tool kit. Includes 17 - 18Tool kit. Includes 17 - 18
-
18520000047 Tool bagTool bag
-
19415037900 Reflector (white). EUROPEReflector (white). EUROPE
