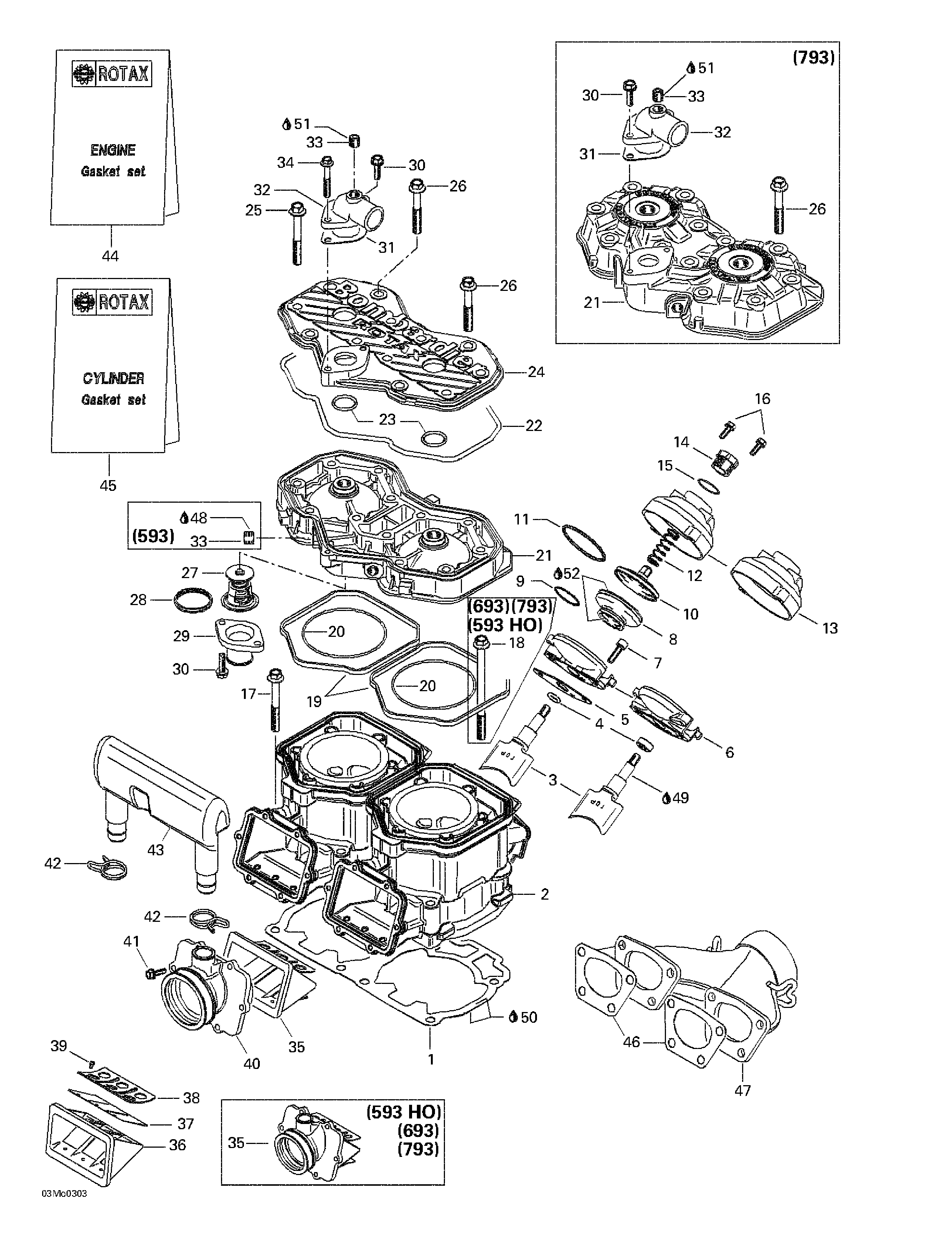

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1420931589 Gasket 0.8 mm. MX Z 500.Gasket 0.8 mm. MX Z 500.
-
420931584 Gasket 0.8 mm. MX Z 600.Gasket 0.8 mm. MX Z 600.
-
420931895 Gasket 0.8 mm (HO). MX Z 600.Gasket 0.8 mm (HO). MX Z 600.
-
420931895 Gasket 0.8 mm. MX Z 700.Gasket 0.8 mm. MX Z 700.
-
420931839 Gasket 0.8 mm. MX Z 800.Gasket 0.8 mm. MX Z 800.
-
420931960 Gasket 0.7 mm. MX Z 500.Gasket 0.7 mm. MX Z 500.
-
420931962 Gasket 0.7 mm. MX Z 600.Gasket 0.7 mm. MX Z 600.
-
420931894 Gasket 0.7 mm (HO). MX Z 600.Gasket 0.7 mm (HO). MX Z 600.
-
420931894 Gasket 0.7 mm. MX Z 700.Gasket 0.7 mm. MX Z 700.
-
420931964 Gasket 0.7 mm. MX Z 800.Gasket 0.7 mm. MX Z 800.
-
420931587 Gasket 0.6 mm. MX Z 500.Gasket 0.6 mm. MX Z 500.
-
420931582 Gasket 0.6 mm. MX Z 600.Gasket 0.6 mm. MX Z 600.
-
420931892 Gasket 0.6 mm (HO). MX Z 600.Gasket 0.6 mm (HO). MX Z 600.
-
420931892 Gasket 0.6 mm. MX Z 700.Gasket 0.6 mm. MX Z 700.
-
420931837 Gasket 0.6 mm. MX Z 800.Gasket 0.6 mm. MX Z 800.
-
420931588 Gasket 0.5 mm. MX Z 500.Gasket 0.5 mm. MX Z 500.
-
420931583 Gasket 0.5 mm. MX Z 600.Gasket 0.5 mm. MX Z 600.
-
420931893 Gasket 0.5 mm (HO). MX Z 600.Gasket 0.5 mm (HO). MX Z 600.
-
420931893 Gasket 0.5 mm. MX Z 700.Gasket 0.5 mm. MX Z 700.
-
420931838 Gasket 0.5 mm. MX Z 800.Gasket 0.5 mm. MX Z 800.
-
420931581 Gasket 0.4 mm. MX Z 600.Gasket 0.4 mm. MX Z 600.
-
2420613605 Cylinder with sleeve. MX Z 500.Cylinder with sleeve. MX Z 500.
-
420613625 Cylinder with sleeve. MX Z 600.Cylinder with sleeve. MX Z 600.
-
420613710 Cylinder-nicasil (HO). MX Z 600.Cylinder-nicasil (HO). MX Z 600.
-
420923695 Cylinder-nicasil. MX Z 700.Cylinder-nicasil. MX Z 700.
-
420923817 Cylinder-nicasil. MX Z 800.Cylinder-nicasil. MX Z 800.
-
3420854490 Exhaust valve. MX Z 500.Exhaust valve. MX Z 500.
-
420854370 Exhaust valve. MX Z 600.Exhaust valve. MX Z 600.
-
420854650 Exhaust valve (HO). MX Z 600.Exhaust valve (HO). MX Z 600.
-
420854332 Exhaust valve. MX Z 700.Exhaust valve. MX Z 700.
-
420854465 Exhaust valve. MX Z 800.Exhaust valve. MX Z 800.
-
4420430110 O-ring (HO). MX Z 600.O-ring (HO). MX Z 600.
-
420430110 O-ring. MX Z 800.O-ring. MX Z 800.
-
420950730 Oil seal. MX Z 500. MX Z 600. MX Z 700.Oil seal. MX Z 500. MX Z 600. MX Z 700.
-
5420250239 Gasket. MX Z 500. MX Z 600. MX Z 700.Gasket. MX Z 500. MX Z 600. MX Z 700.
-
420931542 Gasket (HO). MX Z 600.Gasket (HO). MX Z 600.
-
420931542 Gasket. MX Z 800.Gasket. MX Z 800.
-
6420854455 Valve housing (HO). MX Z 600.Valve housing (HO). MX Z 600.
-
420854266 Valve housing. MX Z 500. MX Z 600. MX Z 700.Valve housing. MX Z 500. MX Z 600. MX Z 700.
-
420854455 Valve housing. MX Z 800.Valve housing. MX Z 800.
-
7205062044 Socket head screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.Socket head screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.
-
205062544 Socket head screw M6 x 25 (HO). MX Z 600.Socket head screw M6 x 25 (HO). MX Z 600.
-
205062544 Socket head screw M6 x 25. MX Z 800.Socket head screw M6 x 25. MX Z 800.
-
8290260723 Bellows. MX Z 500. MX Z 600. MX Z 700.Bellows. MX Z 500. MX Z 600. MX Z 700.
-
420260729 Bellows (HO). MX Z 600.Bellows (HO). MX Z 600.
-
420260729 Bellows. MX Z 800.Bellows. MX Z 800.
-
9420838253 Spring clampSpring clamp
-
10420854449 Exhaust valveExhaust valve
-
11290239048 Hose springHose spring
-
12420239948 Spring. MX Z 500.Spring. MX Z 500.
-
420239944 Spring. MX Z 600. MX Z 700.Spring. MX Z 600. MX Z 700.
-
420239941 Spring. MX Z 800.Spring. MX Z 800.
-
13420911552 Valve cover. MX Z 500. MX Z 600. MX Z 700.Valve cover. MX Z 500. MX Z 600. MX Z 700.
-
420911558 Valve cover (HO). MX Z 600.Valve cover (HO). MX Z 600.
-
420911558 Valve cover. MX Z 800.Valve cover. MX Z 800.
-
14420241221 Adjuster screwAdjuster screw
-
15420430220 O-ring (HO). MX Z 600.O-ring (HO). MX Z 600.
-
420430220 O-ring. MX Z 800.O-ring. MX Z 800.
-
16420841555 Tapping screw M5 x 20. MX Z 500. MX Z 600. MX Z 700.Tapping screw M5 x 20. MX Z 500. MX Z 600. MX Z 700.
-
420241270 Tapping screw M5 x 25 (HO). MX Z 600.Tapping screw M5 x 25 (HO). MX Z 600.
-
420241270 Tapping screw M5 x 25. MX Z 800.Tapping screw M5 x 25. MX Z 800.
-
17420640524 Hex collar screw M10 x 80. MX Z 700. MX Z 800.Hex collar screw M10 x 80. MX Z 700. MX Z 800.
-
420640524 Hex collar screw M10 x 80 (HO). MX Z 600.Hex collar screw M10 x 80 (HO). MX Z 600.
-
420640951 Hex screw M8 x 68.5. MX Z 500. MX Z 600.Hex screw M8 x 68.5. MX Z 500. MX Z 600.
-
18420640534 Hex collar screw M10 x 120. MX Z 700. MX Z 800.Hex collar screw M10 x 120. MX Z 700. MX Z 800.
-
420640534 Hex collar screw M10 x 120 (HO). MX Z 600.Hex collar screw M10 x 120 (HO). MX Z 600.
-
19420931590 Rubber ringRubber ring
-
20420831792 O-ring. MX Z 500.O-ring. MX Z 500.
-
293300026 O-ring. MX Z 600.O-ring. MX Z 600.
-
420931840 O-ring. MX Z 700.O-ring. MX Z 700.
-
290931410 O-ring. MX Z 800.O-ring. MX Z 800.
-
21420923885 Cylinder head (silver). MX Z 500.Cylinder head (silver). MX Z 500.
-
420923454 Cylinder head (silver). MX Z 600.Cylinder head (silver). MX Z 600.
-
420613700 Cylinder head (silver) (HO). MX Z 600.Cylinder head (silver) (HO). MX Z 600.
-
420613840 Cylinder head (silver). MX Z 700.Cylinder head (silver). MX Z 700.
-
420923825 Cylinder head (silver). MX Z 800.Cylinder head (silver). MX Z 800.
-
22290950320 O-ring. MX Z 500. MX Z 600. MX Z 700.O-ring. MX Z 500. MX Z 600. MX Z 700.
-
23420430782 O-ring. MX Z 500. MX Z 600. MX Z 700.O-ring. MX Z 500. MX Z 600. MX Z 700.
-
24420923460 Cylinder head cover (silver). MX Z 500. MX Z 600. MX Z 700.Cylinder head cover (silver). MX Z 500. MX Z 600. MX Z 700.
-
25420841306 Hex collar screw M8 x 65. MX Z 500. MX Z 600. MX Z 700.Hex collar screw M8 x 65. MX Z 500. MX Z 600. MX Z 700.
-
26420941621 Hex collar screw M8 x 56.5Hex collar screw M8 x 56.5
-
27420922517 Thermostat (42 Deg.)Thermostat (42 Deg.)
-
28420931272 Sealing ringSealing ring
-
29420922025 Bent outlet socketBent outlet socket
-
30420941250 Screw M6 x 20Screw M6 x 20
-
31420850338 GasketGasket
-
32420922062 Bent outlet socketBent outlet socket
-
33420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
420240480 Plug screw 1/8-27 NPT (HO). MX Z 600.Plug screw 1/8-27 NPT (HO). MX Z 600.
-
34420941451 Hex collar screw M6 x 40. MX Z 500. MX Z 600. MX Z 700.Hex collar screw M6 x 40. MX Z 500. MX Z 600. MX Z 700.
-
35420924519 Reed valve ass'y. Includes 35 - 39. MX Z 500. MX Z 600.Reed valve ass'y. Includes 35 - 39. MX Z 500. MX Z 600.
-
35420867873 Carburetor socket. Includes 35 - 39. MX Z 700. MX Z 800.Carburetor socket. Includes 35 - 39. MX Z 700. MX Z 800.
-
420867874 Carburetor socket (HO). MX Z 600.Carburetor socket (HO). MX Z 600.
-
37420924680 Pedal reed. MX Z 700. MX Z 800.Pedal reed. MX Z 700. MX Z 800.
-
420924532 Pedal reed. MX Z 500. MX Z 600.Pedal reed. MX Z 500. MX Z 600.
-
38420924539 Reed pedal stop. MX Z 500. MX Z 600.Reed pedal stop. MX Z 500. MX Z 600.
-
420924695 Reed pedal stop. MX Z 700. MX Z 800.Reed pedal stop. MX Z 700. MX Z 800.
-
39420941215 Screw M3 x 5Screw M3 x 5
-
40420867882 Carburetor socket. MX Z 500. MX Z 600.Carburetor socket. MX Z 500. MX Z 600.
-
41420941925 Screw M5 x 16Screw M5 x 16
-
42420851440 ClampClamp
-
43420867817 Intake resonatorIntake resonator
-
44420888722 Engine gasket set. MX Z 500.Engine gasket set. MX Z 500.
-
420888584 Engine gasket set. MX Z 600.Engine gasket set. MX Z 600.
-
420889920 Engine gasket set (HO). MX Z 600.Engine gasket set (HO). MX Z 600.
-
420888604 Engine gasket set. MX Z 700.Engine gasket set. MX Z 700.
-
420888741 Engine gasket set. MX Z 800.Engine gasket set. MX Z 800.
-
45420888726 Cylinder gasket set. MX Z 500.Cylinder gasket set. MX Z 500.
-
420888588 Cylinder gasket set. MX Z 600.Cylinder gasket set. MX Z 600.
-
420889925 Cylinder gasket set (HO). MX Z 600.Cylinder gasket set (HO). MX Z 600.
-
420888608 Cylinder gasket set. MX Z 700.Cylinder gasket set. MX Z 700.
-
420888745 Cylinder gasket set. MX Z 800.Cylinder gasket set. MX Z 800.
-
46420931615 Gasket. MX Z 500.Gasket. MX Z 500.
-
420931610 Gasket. MX Z 600.Gasket. MX Z 600.
-
420850552 Gasket (HO). MX Z 600.Gasket (HO). MX Z 600.
-
420850552 Gasket. MX Z 700.Gasket. MX Z 700.
-
420931850 Gasket. MX Z 800.Gasket. MX Z 800.
-
47420973650 Exhaust manifold. MX Z 500.Exhaust manifold. MX Z 500.
-
420979543 Exhaust manifold. MX Z 600.Exhaust manifold. MX Z 600.
-
420973593 Exhaust manifold (HO). MX Z 600.Exhaust manifold (HO). MX Z 600.
-
420973593 Exhaust manifold. MX Z 700.Exhaust manifold. MX Z 700.
-
420973714 Exhaust manifold. MX Z 800.Exhaust manifold. MX Z 800.
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49711297433 Molykote G-n Paste, Dow Corning, 50gMolykote G-n Paste, Dow Corning, 50g
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
51420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
52413707000 Molykote IIIMolykote III
