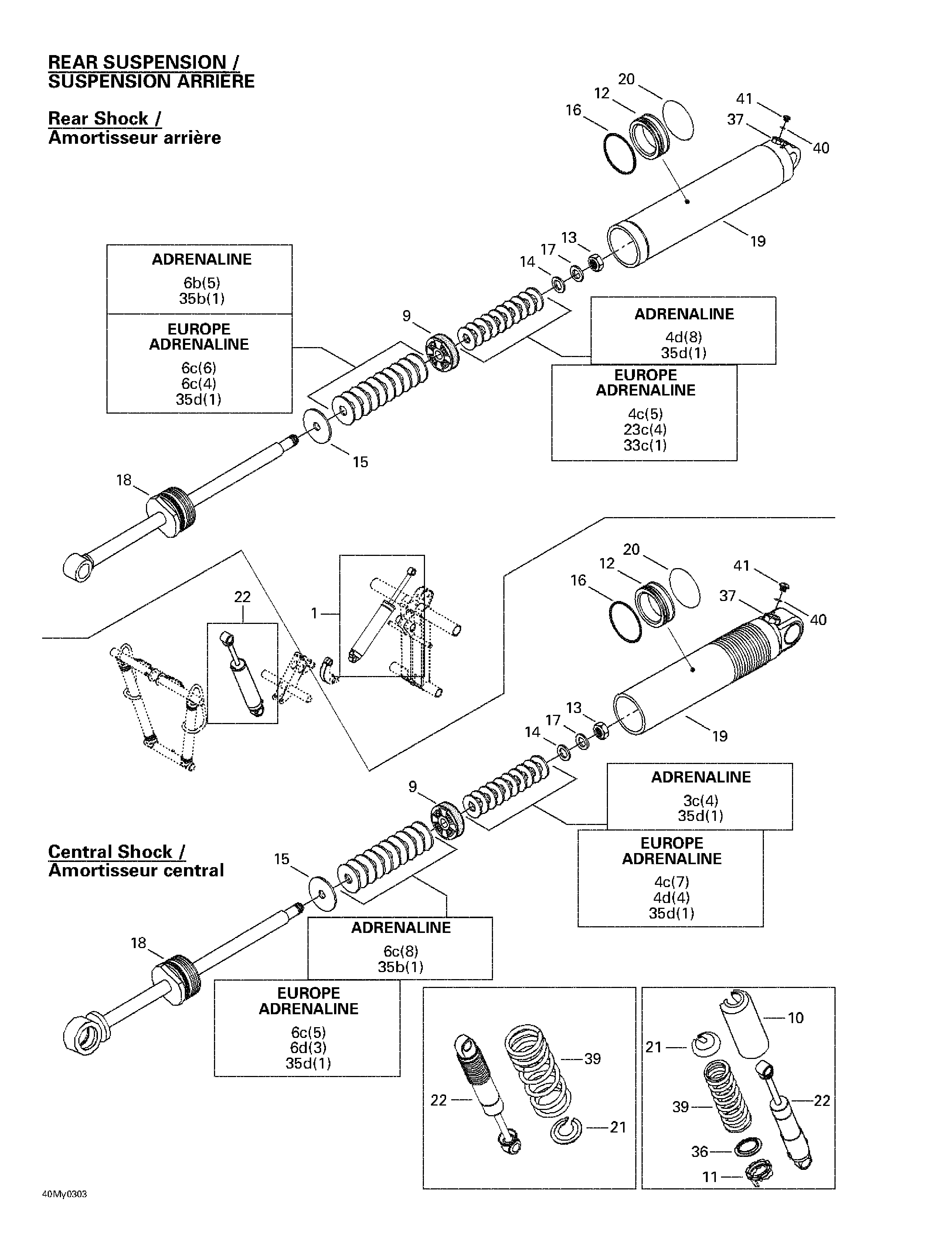

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1503189764 Rear shock. TRAIL MX Z 500. MX Z 600.Rear shock. TRAIL MX Z 500. MX Z 600.
-
503190011 Rear shock. RENEGADE MX Z 600. MX Z 800.Rear shock. RENEGADE MX Z 600. MX Z 800.
-
503190203 Rear shock. EUROPE-RENEGADE MX Z 800.Rear shock. EUROPE-RENEGADE MX Z 800.
-
503190007 Rear shock. ADRENALINERear shock. ADRENALINE
-
503190207 Rear shock. EUROPE-ADRENALINE MX Z 500.Rear shock. EUROPE-ADRENALINE MX Z 500.
-
2a503189041 Piston washer O40 x 0.254Piston washer O40 x 0.254
-
2b503189040 Piston washer O40 x 0.203Piston washer O40 x 0.203
-
2c503189039 Piston washer O40 x 0.152Piston washer O40 x 0.152
-
3a503189038 Piston washer O36 x 0.254Piston washer O36 x 0.254
-
3b503189037 Piston washer O36 x 0.203Piston washer O36 x 0.203
-
3c503189036 Piston washer O36 x 0.152Piston washer O36 x 0.152
-
4a503189035 Piston washer O30 x 0.305Piston washer O30 x 0.305
-
4b503189034 Piston washer O30 x 0.254Piston washer O30 x 0.254
-
4c503189033 Piston washer O30 x 0.203Piston washer O30 x 0.203
-
4d503189032 Piston washer O30 x 0.152Piston washer O30 x 0.152
-
4e503189031 Piston washer O30 x 0.114Piston washer O30 x 0.114
-
5a503189030 Piston washer O28 x 0.305Piston washer O28 x 0.305
-
5b503189029 Piston washer O28 x 0.254Piston washer O28 x 0.254
-
5c503189028 Piston washer O28 x 0.203Piston washer O28 x 0.203
-
5d503189027 Piston washer O28 x 0.152Piston washer O28 x 0.152
-
5e503189026 Piston washer O28 x 0.114Piston washer O28 x 0.114
-
6a503189025 Piston washer O26 x 0.305Piston washer O26 x 0.305
-
6b503189024 Piston washer O26 x 0.254Piston washer O26 x 0.254
-
6c503189023 Piston washer O26 x 0.203Piston washer O26 x 0.203
-
6D503189022 Piston washer O26 x 0.152Piston washer O26 x 0.152
-
6e503189021 Piston washer O26 x 0.114Piston washer O26 x 0.114
-
7A503189020 Piston washer O24 x 0.305Piston washer O24 x 0.305
-
7b503189019 Piston washer O24 x 0.254Piston washer O24 x 0.254
-
7c503189018 Piston washer O24 x 0.203Piston washer O24 x 0.203
-
7D503189017 Piston washer O24 x 0.152Piston washer O24 x 0.152
-
7E503189016 Piston washer O24 x 0.114Piston washer O24 x 0.114
-
8a503189015 Piston washer O22 x 0.305Piston washer O22 x 0.305
-
8b503189014 Piston washer O22 x 0.254Piston washer O22 x 0.254
-
8c503189013 Piston washer O22 x 0.203Piston washer O22 x 0.203
-
8d503189012 Piston washer O22 x 0.152Piston washer O22 x 0.152
-
8e503189011 Piston washer O22 x 0.114Piston washer O22 x 0.114
-
10503188930 Protector. TRAIL MX Z 500. MX Z 600.Protector. TRAIL MX Z 500. MX Z 600.
-
503190252 Protector. RENEGADE MX Z 600. MX Z 800.Protector. RENEGADE MX Z 600. MX Z 800.
-
11503183700 Adjuster ring. TRAIL MX Z 500. MX Z 600.Adjuster ring. TRAIL MX Z 500. MX Z 600.
-
505070150 Adjuster ring. RENEGADE / ADRENALINEAdjuster ring. RENEGADE / ADRENALINE
-
12415097900 Free piston. ADRENALINEFree piston. ADRENALINE
-
16414888312 O-ring. ADRENALINEO-ring. ADRENALINE
-
21503140600 Spring stopper. TRAIL MX Z 500. MX Z 600.Spring stopper. TRAIL MX Z 500. MX Z 600.
-
503189912 Spring stopper. RENEGADE / ADR?NALINESpring stopper. RENEGADE / ADR?NALINE
-
22503189763 Center shock. TRAIL MX Z 500. MX Z 600.Center shock. TRAIL MX Z 500. MX Z 600.
-
503190008 Center shock. ADRENALINECenter shock. ADRENALINE
-
503190018 Center shock. RENEGADE MX Z 600. MX Z 800.Center shock. RENEGADE MX Z 600. MX Z 800.
-
503190202 Center shock. EUROPE-RENEGADE MX Z 800.Center shock. EUROPE-RENEGADE MX Z 800.
-
503190201 Center shock. EUROPE-ADRENALINE MX Z 500.Center shock. EUROPE-ADRENALINE MX Z 500.
-
23a415039100 Leaf valve O30 x 0.254Leaf valve O30 x 0.254
-
23b414888318 Leaf valve O30 x 0.203Leaf valve O30 x 0.203
-
23C414888319 Leaf valve O30 x 0.152Leaf valve O30 x 0.152
-
24a414888320 Leaf valve O28 x 0.203Leaf valve O28 x 0.203
-
24b414888321 Leaf valve O28 x 0.152Leaf valve O28 x 0.152
-
25a415039000 Leaf valve O26 x 0.254Leaf valve O26 x 0.254
-
25b414888322 Leaf valve O26 x 0.203Leaf valve O26 x 0.203
-
25c414888323 Leaf valve O26 x 0.152Leaf valve O26 x 0.152
-
27a414888324 Leaf valve O22 x 0.203Leaf valve O22 x 0.203
-
27b414888325 Leaf valve O22 x 0.152Leaf valve O22 x 0.152
-
28a414888340 Leaf valve O21 x 0.114Leaf valve O21 x 0.114
-
29a414888326 Leaf valve O20 x 0.203Leaf valve O20 x 0.203
-
29b414888327 Leaf valve O20 x 0.152Leaf valve O20 x 0.152
-
29c414888328 Leaf valve O20 x 0.114Leaf valve O20 x 0.114
-
31a414888329 Leaf valve O18 x 0.203Leaf valve O18 x 0.203
-
31b414888330 Leaf valve O18 x 0.152Leaf valve O18 x 0.152
-
32a414888331 Leaf valve O16 x 0.254Leaf valve O16 x 0.254
-
32b414888332 Leaf valve O16 x 0.203Leaf valve O16 x 0.203
-
32c414888333 Leaf valve O16 x 0.152Leaf valve O16 x 0.152
-
32d415038900 Leaf valve O16 x 0.114Leaf valve O16 x 0.114
-
33a414888334 Leaf valve O15 x 0.254Leaf valve O15 x 0.254
-
33b414888335 Leaf valve O15 x 0.203Leaf valve O15 x 0.203
-
33c414888336 Leaf valve O15 x 0.152Leaf valve O15 x 0.152
-
33d414888337 Leaf valve O15 x 0.114Leaf valve O15 x 0.114
-
35a503189538 Leaf valve O12 x 0.254Leaf valve O12 x 0.254
-
35b414888339 Leaf valve O12 x 0.203Leaf valve O12 x 0.203
-
35c414888338 Leaf valve O12 x 0.152Leaf valve O12 x 0.152
-
35d415038800 Leaf valve O12 x 0.114Leaf valve O12 x 0.114
-
36517184300 Spring guide. RENEGADE / ADRENALINESpring guide. RENEGADE / ADRENALINE
-
503187500 Spring guide. TRAIL MX Z 500. MX Z 600.Spring guide. TRAIL MX Z 500. MX Z 600.
-
37505070398 Air valve ringAir valve ring
-
38293600035 Shock oil (not shown)Shock oil (not shown)
-
39503189325 Spring. TRAIL MX Z 500. MX Z 600.Spring. TRAIL MX Z 500. MX Z 600.
-
503189812 Spring. RENEGADE / ADRENALINESpring. RENEGADE / ADRENALINE
-
40505070400 O-ringO-ring
-
41505070399 ScrewScrew
