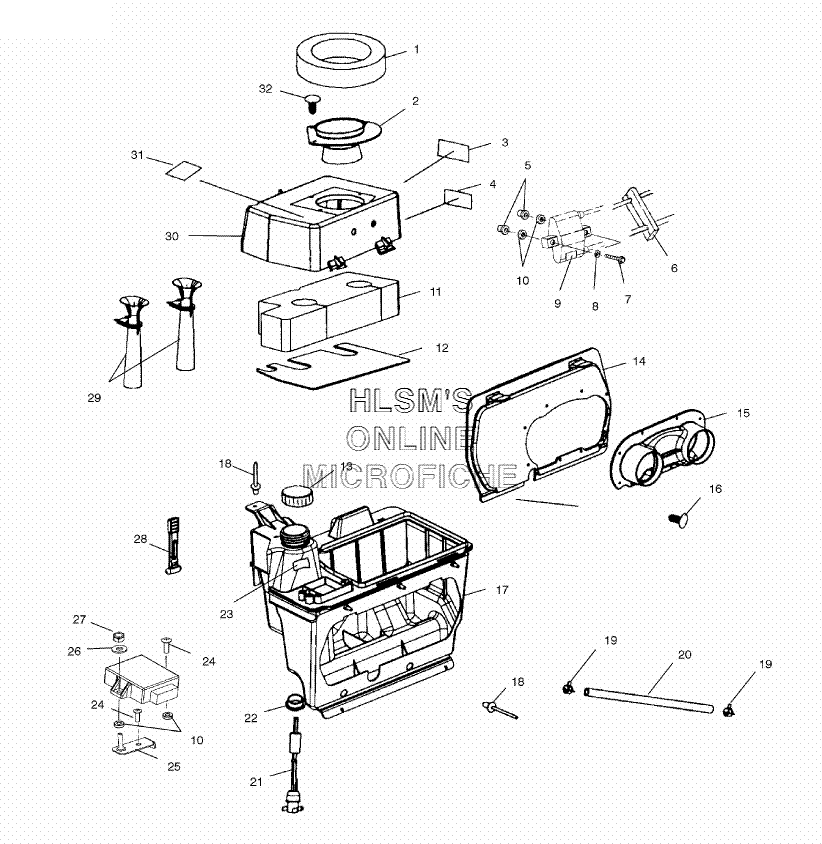

AIR BOX для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIR BOX CHIMNEY EDGEFOAM, AIR BOX CHIMNEY EDGE
-
25433664 DUCT, AIR INLETDUCT, AIR INLET
-
37073820 DECAL, ADJ. DRIVEN CLUTCHDECAL, ADJ. DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
57547103 NUTNUT
-
67080471 T, CLIPT, CLIP
-
77517610 SCREWSCREW
-
87552604 WASHERWASHER
-
97077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
107555932 WASHER, NYLONWASHER, NYLON
-
115811979 FOAM, AIR BOX PLATEFOAM, AIR BOX PLATE
-
125433665 PLATE, INTAKE EDGEPLATE, INTAKE EDGE
-
131240094 CAP, OIL VENTED/CUSTOM COLORCAP, OIL VENTED/CUSTOM COLOR
-
145433514 PLATE, CARB ADAPTERPLATE, CARB ADAPTER
-
155411770 BOOT, CARB. (63MM, MIKTM EDGE)BOOT, CARB. (63MM, MIKTM EDGE)
-
167080431 FASTENER, DARTFASTENER, DART
-
171253336 AIR SILENCER, ASSY. [INCL. 21, 22]AIR SILENCER, ASSY. [INCL. 21, 22]
-
187621472 RIVETRIVET
-
197080307 CLAMPCLAMP
-
208450003-1525 FUEL LINE, 1/4 ID (1525 CM.)FUEL LINE, 1/4 ID (1525 CM.)
-
214010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
227052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
237079003 DECAL, OIL VESCOSITYDECAL, OIL VESCOSITY
-
247512098 SCREWSCREW
-
251013201 WELD, BRACKET (KOKUSAN, CDI, TPS)WELD, BRACKET (KOKUSAN, CDI, TPS)
-
267555904 BURR, RIVETBURR, RIVET
-
277541925 NUTNUT
-
285433150 STRAP, RUBBERSTRAP, RUBBER
-
295433662 TUBE, INTAKE, OUTERTUBE, INTAKE, OUTER
-
301253302 AIR SILENCER COVER ASSY., [INCL. 2, 3, 4, 31, 32]AIR SILENCER COVER ASSY., [INCL. 2, 3, 4, 31, 32]
-
317075351 DECAL, CAUTION AIR BOXDECAL, CAUTION AIR BOX
-
327670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
