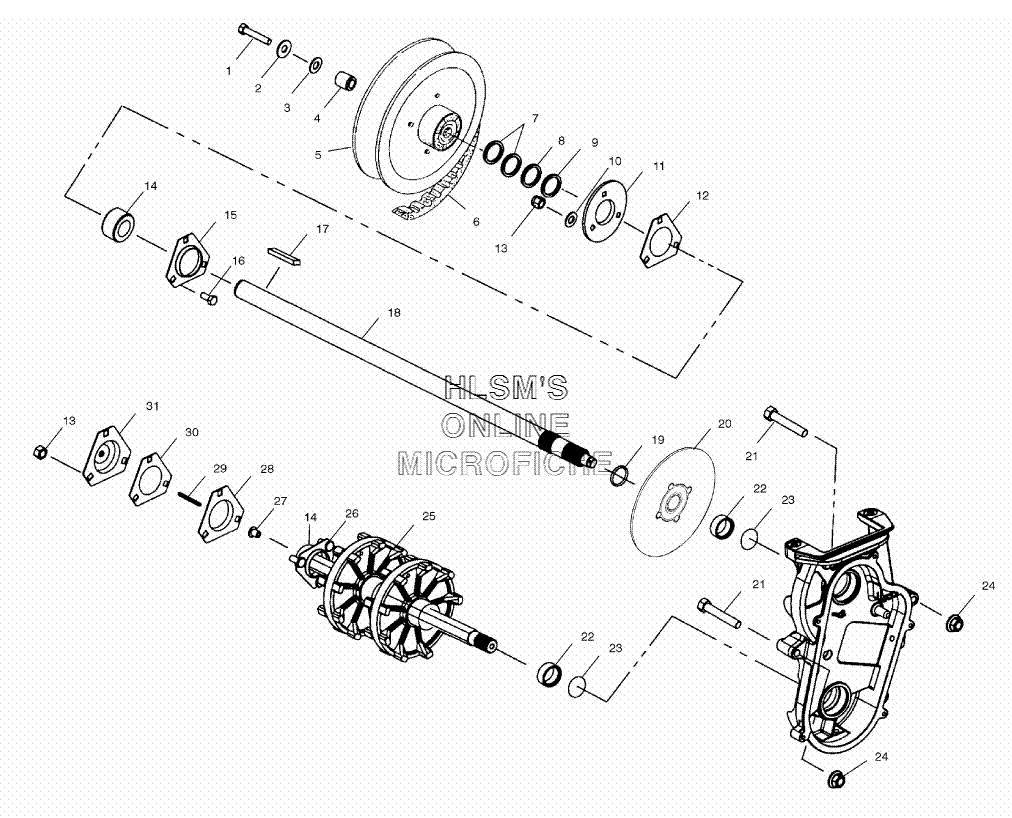

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517820 BOLT (5/16, 18X1 3/4 HX/LK, GR5, Z) [MANUAL START]BOLT (5/16, 18X1 3/4 HX/LK, GR5, Z) [MANUAL START]
-
17515369 BOLT [ELECTRIC START]BOLT [ELECTRIC START]
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACER [MANUAL START]SPACER [MANUAL START]
-
45020913 SPACER [ELECTRIC START]SPACER [ELECTRIC START]
-
51321927 DRIVEN CLUTCH ASSY., [SEE DRIVEN CLUTCH REF. 9]DRIVEN CLUTCH ASSY., [SEE DRIVEN CLUTCH REF. 9]
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHER [MANUAL START]WASHER [MANUAL START]
-
75020837 SPACER [ELECTRIC START]SPACER [ELECTRIC START]
-
87555864 BUSHINGBUSHING
-
97556509 WASHER SPECIALWASHER SPECIAL
-
107558402 WASHER STEELWASHER STEEL
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
137542324 NUTNUT
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLTBOLT
-
177721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
181332220 JACKSHAFT ASSY., (15 SPL W/M15 BRG) [INCL. 14, 19]JACKSHAFT ASSY., (15 SPL W/M15 BRG) [INCL. 14, 19]
-
197710422 RING, RETAININGRING, RETAINING
-
201910403 BRAKE DISC ASSY. (SNOW, 6385 CR)BRAKE DISC ASSY. (SNOW, 6385 CR)
-
217515428 BOLTBOLT
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247542423 NUTNUT
-
251590313 DRIVESHAFT, EDG ASSY., (1.06, 2 DR W) [INCL. 26, 27]DRIVESHAFT, EDG ASSY., (1.06, 2 DR W) [INCL. 26, 27]
-
261012945 FLANGETTE ASSY., (W/SCREWS)FLANGETTE ASSY., (W/SCREWS)
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
