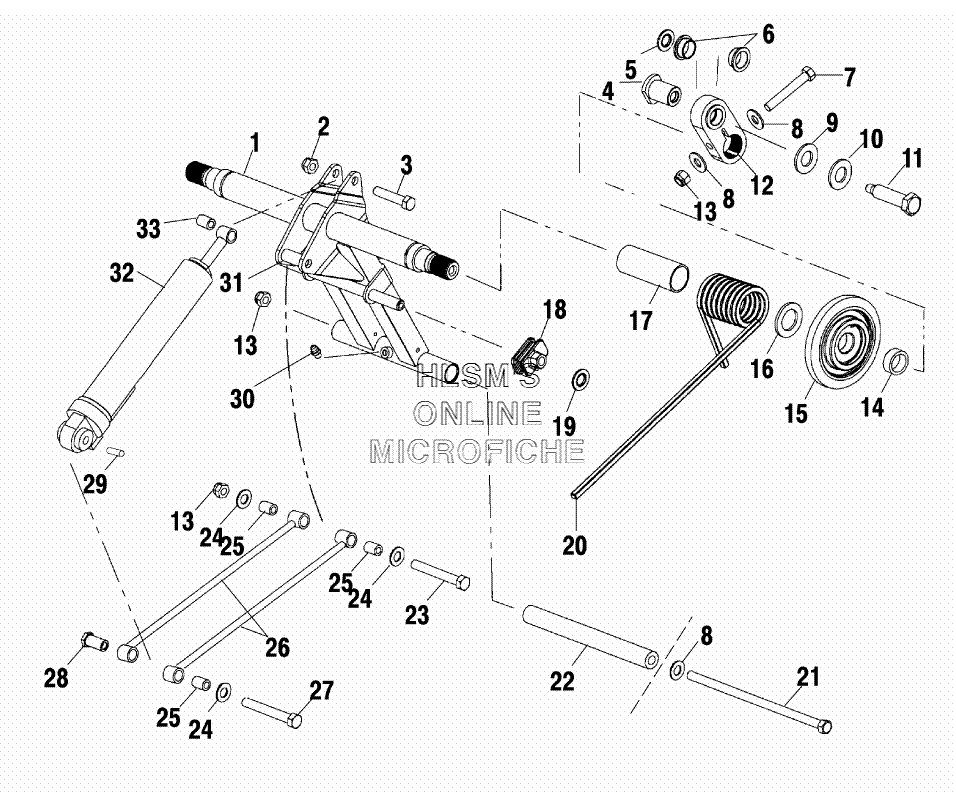

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
11541561-293 WELD, REAR TORQUE ARM (RED)WELD, REAR TORQUE ARM (RED)
-
11541561-216 WELD, REAR TORQUE ARM (YELLOW)WELD, REAR TORQUE ARM (YELLOW)
-
27542411 NUT LOCKNUT LOCK
-
37515540 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
57555945 WASHERWASHER
-
63514331 BUSHING, ARMBUSHING, ARM
-
77515415 BOLTBOLT
-
87555806 WASHERWASHER
-
97555893 WASHERWASHER
-
107552603 WASHERWASHER
-
117517435 BOLTBOLT
-
121541461 ARM, ASSY. RTA [INCL. 6]ARM, ASSY. RTA [INCL. 6]
-
137542439 NUT, NYLOKNUT, NYLOK
-
145132388 SPACER, WHEELSPACER, WHEEL
-
151590278 WHEEL ASSY. (PLAIN, BLACK)WHEEL ASSY. (PLAIN, BLACK)
-
167555871 WASHER, REVERSEWASHER, REVERSE
-
175431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
185432983 ROLLER, SPRING, ADJ, (SQUARE, X10)ROLLER, SPRING, ADJ, (SQUARE, X10)
-
197080394 CLIPCLIP
-
207041942-067 SPRING, TORS, (LEFT STD .375/77]SPRING, TORS, (LEFT STD .375/77]
-
207041943-067 SPRING, TORS, (RIGHT STD .375/77]SPRING, TORS, (RIGHT STD .375/77]
-
207041629-067 SPRING (LEFT, TORSION, BLACK OPT] [.359/77]SPRING (LEFT, TORSION, BLACK OPT] [.359/77]
-
207041630-067 SPRING (RIGHT, TORSION, BLACK OPT] [.359/77]SPRING (RIGHT, TORSION, BLACK OPT] [.359/77]
-
207041940-067 SPRING, TORSION (LEFT, BLACK OPT] [.405/77]SPRING, TORSION (LEFT, BLACK OPT] [.405/77]
-
207041941-067 SPRING, TORSION (RIGHT, BLACK OPT] [.405/77]SPRING, TORSION (RIGHT, BLACK OPT] [.405/77]
-
217517232 SCREWSCREW
-
225333873 SHAFT (.740X.390X7.055, 6066)SHAFT (.740X.390X7.055, 6066)
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
261541479-067 SHOCK ROD (12.850, BLACK)SHOCK ROD (12.850, BLACK)
-
277517851 SCREW (3/8, 24X3.75, HX/P, 80, GR8Y)SCREW (3/8, 24X3.75, HX/P, 80, GR8Y)
-
285132390 BUSHING, NUT (.616X1.12X.875)BUSHING, NUT (.616X1.12X.875)
-
295333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
307080424 FITTING, LUBE.FITTING, LUBE.
-
315333904 SPACER (.397X.562X1.250)SPACER (.397X.562X1.250)
-
327041846 SHOCK (R/T, FOX, PPS)SHOCK (R/T, FOX, PPS)
-
327042196 SHOCK, REAR TRACK (REMOTERES, FOX)SHOCK, REAR TRACK (REMOTERES, FOX)
-
335010422 BUSHINGBUSHING
