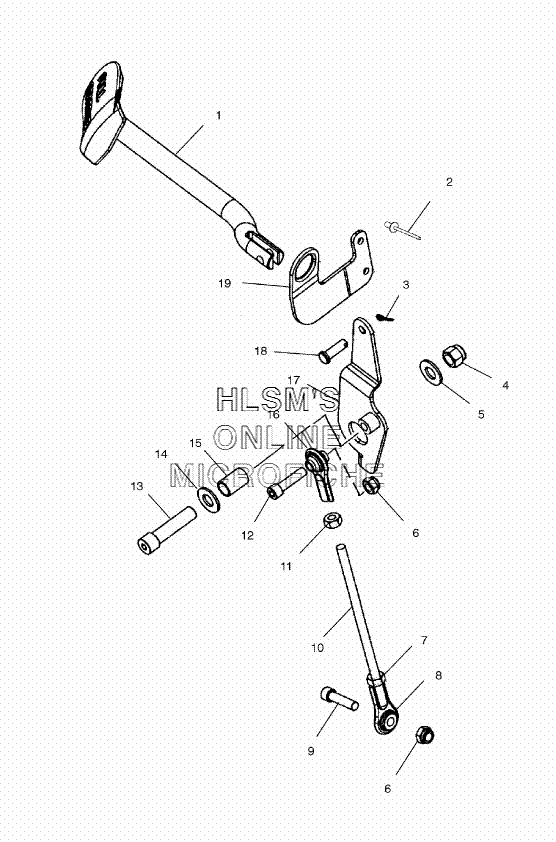

REVERSE LINKAGE для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
15434351 LEVER, SHIFT EDGELEVER, SHIFT EDGE
-
27661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
37661010 PIN, COTTERPIN, COTTER
-
47542459 NUT, FLANGEDNUT, FLANGED
-
57556060 WASHER, WAVEWASHER, WAVE
-
67542122 NUT, LOCKNUT, LOCK
-
77542129 NUTNUT
-
87060170 ROD ENDROD END
-
97517864 SCREW (1/4, 20X1 SOC CP, SS)SCREW (1/4, 20X1 SOC CP, SS)
-
105132361 ROD, THREADEDROD, THREADED
-
117547088 NUT, JAM (LEFT, 1/4''X28 .10)NUT, JAM (LEFT, 1/4''X28 .10)
-
127517869 SCREW (1/4, 20X1.5, HX/CP/SDC, SS)SCREW (1/4, 20X1.5, HX/CP/SDC, SS)
-
137515415 BOLTBOLT
-
147555806 WASHERWASHER
-
155334052 BUSHING (.395X.494X1.135)BUSHING (.395X.494X1.135)
-
167061030 ROD END (1/4, 28X.59)ROD END (1/4, 28X.59)
-
171341418 WELD, SHIFT ACTUATOR LONG TUBEWELD, SHIFT ACTUATOR LONG TUBE
-
187661843 CLEVISCLEVIS
-
195244636 BRACKET, SHIFT LEVER GUIDEBRACKET, SHIFT LEVER GUIDE
