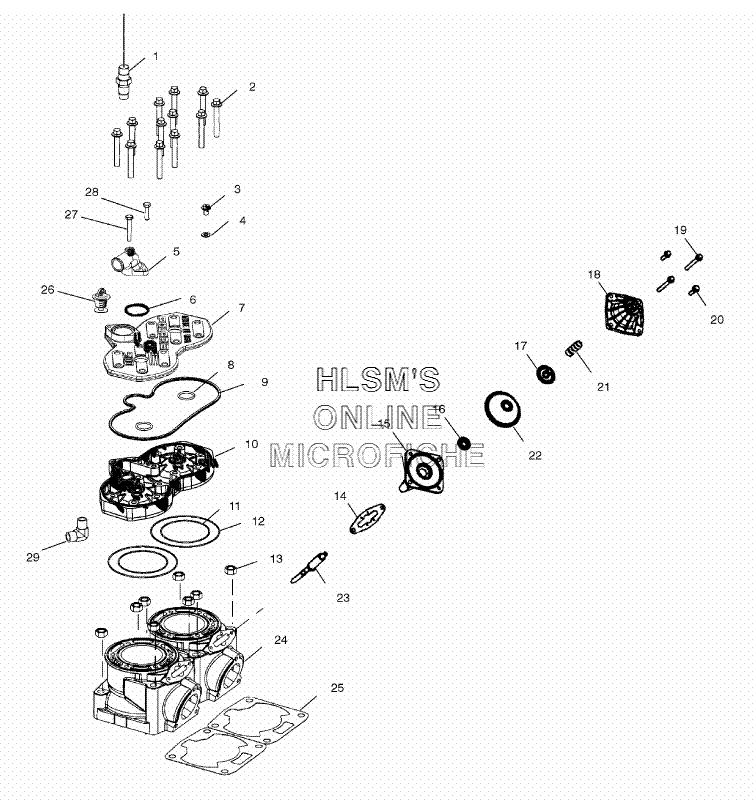

CYLINDER ASSEMBLY для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
14010614 SENSOR, THERMISTOR (W/SILCN PAD)SENSOR, THERMISTOR (W/SILCN PAD)
-
27517533 SCREW (M8X1.25X55)SCREW (M8X1.25X55)
-
37517679 SCREW (M6X1.0 X 13, SL/HX/FL, Z)SCREW (M6X1.0 X 13, SL/HX/FL, Z)
-
47555998 WASHER, FLATWASHER, FLAT
-
55630992 COVER, THERMOSTAT (M6 BLEED LG)COVER, THERMOSTAT (M6 BLEED LG)
-
65411521 O-RING, LIPSEALO-RING, LIPSEAL
-
75631198-329 COVER, HEAD (70.5 500 BLACK E, COAT)COVER, HEAD (70.5 500 BLACK E, COAT)
-
85411411 O-RINGO-RING
-
95411465 SEAL (MLDD.HEAD, TWIN)SEAL (MLDD.HEAD, TWIN)
-
103021276 HEAD, CYL. (70.5MM, W/BYPASS 3/8)HEAD, CYL. (70.5MM, W/BYPASS 3/8)
-
115411199 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUTNUT
-
145812350 GASKET, (BASE TO CYL. EXH. VALVE 1)GASKET, (BASE TO CYL. EXH. VALVE 1)
-
151202216 BASE ASSY., EXH. VALVE DOMBASE ASSY., EXH. VALVE DOM
-
165132950 WASHER, BELLOWS, EXH. VALVE, DOMWASHER, BELLOWS, EXH. VALVE, DOM
-
175631381 CAP/NUT, BELLOWS, EXH. VALVE DOMCAP/NUT, BELLOWS, EXH. VALVE DOM
-
185434599 HOUSING, BELLOWS EXH. VALVE BUSHHOUSING, BELLOWS EXH. VALVE BUSH
-
197516820 SCREWSCREW
-
207517932 SCREW (M6X1.0X50.0 HX/FL, YD)SCREW (M6X1.0X50.0 HX/FL, YD)
-
217041786-07 SPRING, COMP (GEN3.5EV PRPL/WHT)SPRING, COMP (GEN3.5EV PRPL/WHT)
-
225412147 BELLOWS (FABRIC POLYESTER)BELLOWS (FABRIC POLYESTER)
-
231201959 VALVE GUILLOTINE ASSY. (3.5, 500EV)VALVE GUILLOTINE ASSY. (3.5, 500EV)
-
243021256 CYLINDER (70.5 SNO EV)CYLINDER (70.5 SNO EV)
-
255811916 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
267052267 THERMOSTAT (50C TBYS SS STEM)THERMOSTAT (50C TBYS SS STEM)
-
277516818 SCREWSCREW
-
287516822 SCREWSCREW
-
297052312 FITTING (90Ш,3/8 NPT,5/8ID HOSE)FITTING (90Ш,3/8 NPT,5/8ID HOSE)
