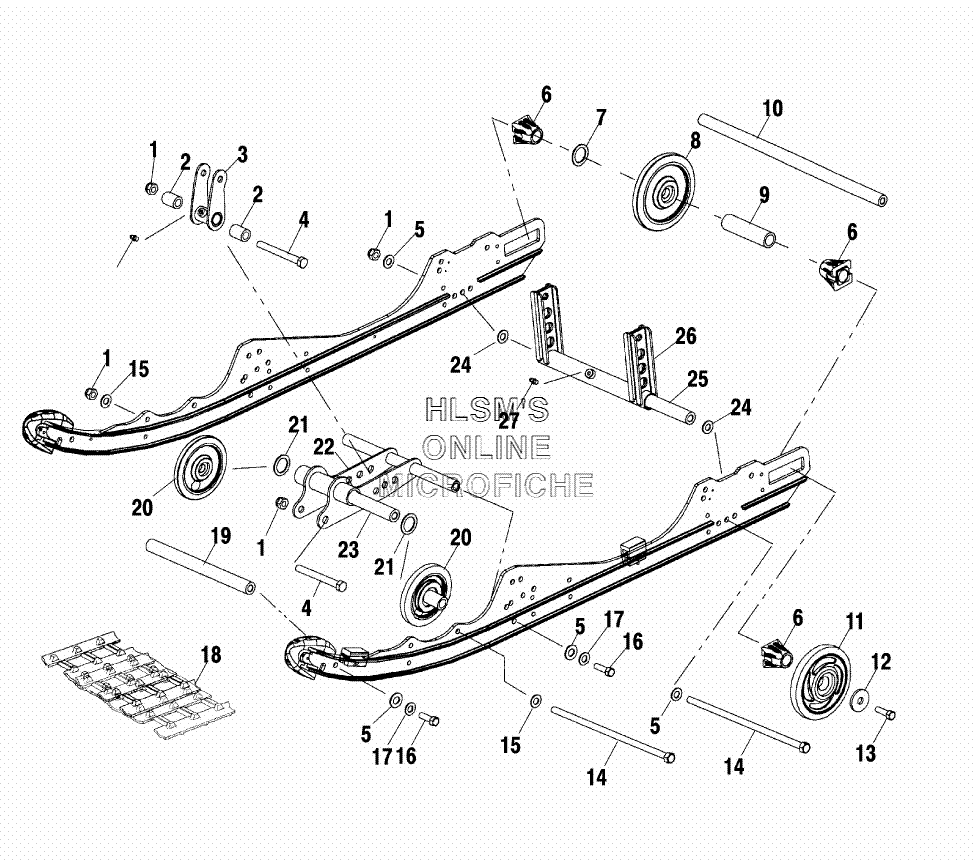

SUSPENSION - REAR для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25131940 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM (2.5, BLACK)SHOCK PIVOT ARM (2.5, BLACK)
-
47515417 BOLTBOLT
-
57555806 WASHERWASHER
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER (LONG)SPACER, IDLER (LONG)
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-293 WHEEL, IDLER (HP, RED)WHEEL, IDLER (HP, RED)
-
111590303-312 WHEEL IDLER ASSY. (HP, INDY BLUE)WHEEL IDLER ASSY. (HP, INDY BLUE)
-
117710444 RING, RETAININGRING, RETAINING
-
113514012 BEARINGBEARING
-
127556130 WASHER (.406X1.25X.125)WASHER (.406X1.25X.125)
-
137517731 BOLT (3/8, 16X1.25)BOLT (3/8, 16X1.25)
-
147517921 SCREW (3/8, 24X9.875, HX/LP, GR8, Y)SCREW (3/8, 24X9.875, HX/LP, GR8, Y)
-
157555797 WASHERWASHER
-
167517247 SCREWSCREW
-
177552603 WASHERWASHER
-
185411369 TRACK (121''X15 .91 LUG) [.91 INCH]TRACK (121''X15 .91 LUG) [.91 INCH]
-
185222839 CLIP, TRACK (CAMOPLAST)CLIP, TRACK (CAMOPLAST)
-
185222840 CLIP, GUIDE (CAMOPLAST)CLIP, GUIDE (CAMOPLAST)
-
185411963 TRACK (121X1.25 SHOCKWAVE) [1.25 INCH]TRACK (121X1.25 SHOCKWAVE) [1.25 INCH]
-
185222839 CLIP, TRACK (CAMOPLAST)CLIP, TRACK (CAMOPLAST)
-
195020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
201541485 WHEEL (5.35, .984 ID, W/ HOLE)WHEEL (5.35, .984 ID, W/ HOLE)
-
217556301 MACHINERY BUSHINGMACHINERY BUSHING
-
221541463-067 SHOCK MNT (BLACK)SHOCK MNT (BLACK)
-
235132490 SHAFT (.390X.750X.8665)SHAFT (.390X.750X.8665)
-
247555893 WASHERWASHER
-
255333404 SHAFTSHAFT
-
261541478-067 REAR PIVOT ARM (3.75, BLACK)REAR PIVOT ARM (3.75, BLACK)
-
277080424 FITTING, LUBE.FITTING, LUBE.
