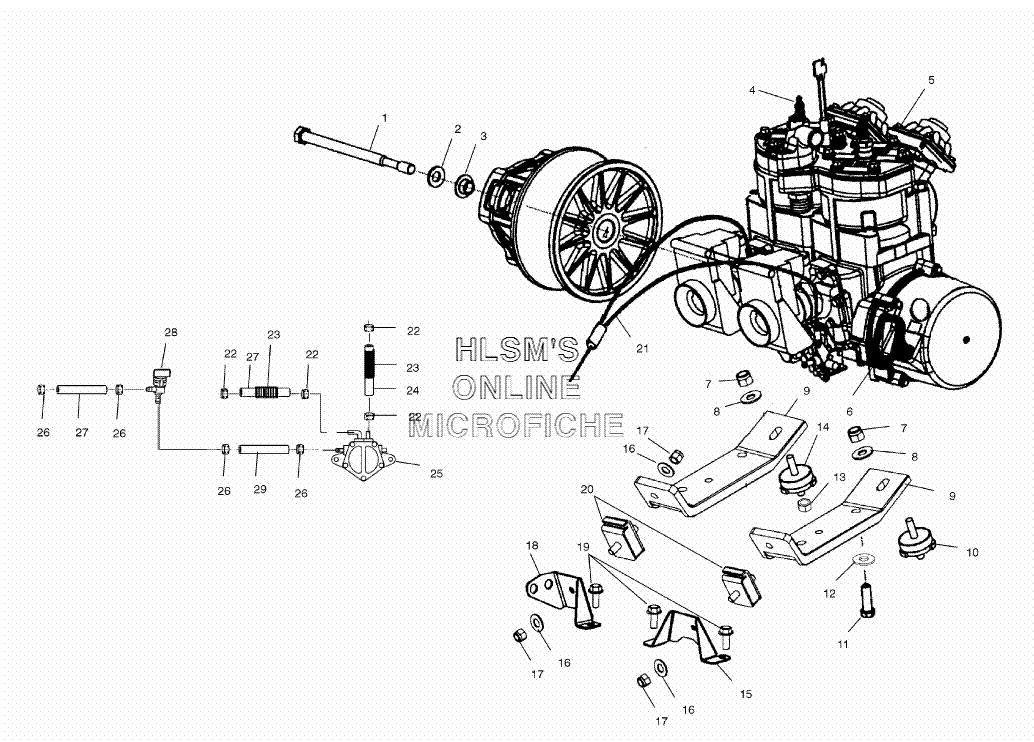

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517501 SCREW, (M14X1.5X215)SCREW, (M14X1.5X215)
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RET.WASHER, CLUTCH RET.
-
43070190 SPARK PLUG, CHAMPION (RN57Y CC)SPARK PLUG, CHAMPION (RN57Y CC)
-
52201936 SHORT BLOCK KIT (BLACK) (S50, 44, 02 XCSP NOTE: THE SHORT BLOCK ASSY. CONTAINSSHORT BLOCK KIT (BLACK) (S50, 44, 02 XCSP NOTE: THE SHORT BLOCK ASSY. CONTAINS
-
65431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
77542451 NUT, NYLOCNUT, NYLOC
-
87555893 WASHERWASHER
-
95245465 STRAP, ENGINE MOUNT (S44, LEFT)STRAP, ENGINE MOUNT (S44, LEFT)
-
95245474 STRAP, ENGINE MOUNT (S44, RIGHT)STRAP, ENGINE MOUNT (S44, RIGHT)
-
103021290 MOUNT, ENGINE (3/8, 16 50 DUR)MOUNT, ENGINE (3/8, 16 50 DUR)
-
117512539 BOLTBOLT
-
127553101 WASHER LOCKWASHER LOCK
-
137547180 NUT, FLANGED (3/8, 16 NYLON, Z)NUT, FLANGED (3/8, 16 NYLON, Z)
-
143021220 MOUNT, ENGINE (3/8, 16)MOUNT, ENGINE (3/8, 16)
-
155245044 BRACKET, ENGINE MOUNT (RIGHT, FORMED)BRACKET, ENGINE MOUNT (RIGHT, FORMED)
-
167555806 WASHERWASHER
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
181013397 WELD, ENG MOUNT BRACKET (LEFT)WELD, ENG MOUNT BRACKET (LEFT)
-
197517854 SCREW, (3/8, 16X1, P30, SPEC, Y)SCREW, (3/8, 16X1, P30, SPEC, Y)
-
203021206 MOUNT, ENGINE, (3/8, 16, RECT)MOUNT, ENGINE, (3/8, 16, RECT)
-
217080867 CABLE, THROTTLE (TWIN)CABLE, THROTTLE (TWIN)
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238360052-15 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
248450040-600 FUEL LINE, 1/4 ID (600 CM.)FUEL LINE, 1/4 ID (600 CM.)
-
252520259 PUMP, FUEL (MIK 62 1/4'' XC S/BLACK)PUMP, FUEL (MIK 62 1/4'' XC S/BLACK)
-
267080307 CLAMPCLAMP
-
278350018-160 TUBING, (ETHER ERETHNE,160CM, SVC)TUBING, (ETHER ERETHNE,160CM, SVC)
-
287052249 VALVE, FUEL, PLASTIC (90Ш, 1/4 HOSE)VALVE, FUEL, PLASTIC (90Ш, 1/4 HOSE)
-
298350017-160 FUEL, LINE (ETHER, RED, 5/16'')FUEL, LINE (ETHER, RED, 5/16'')
