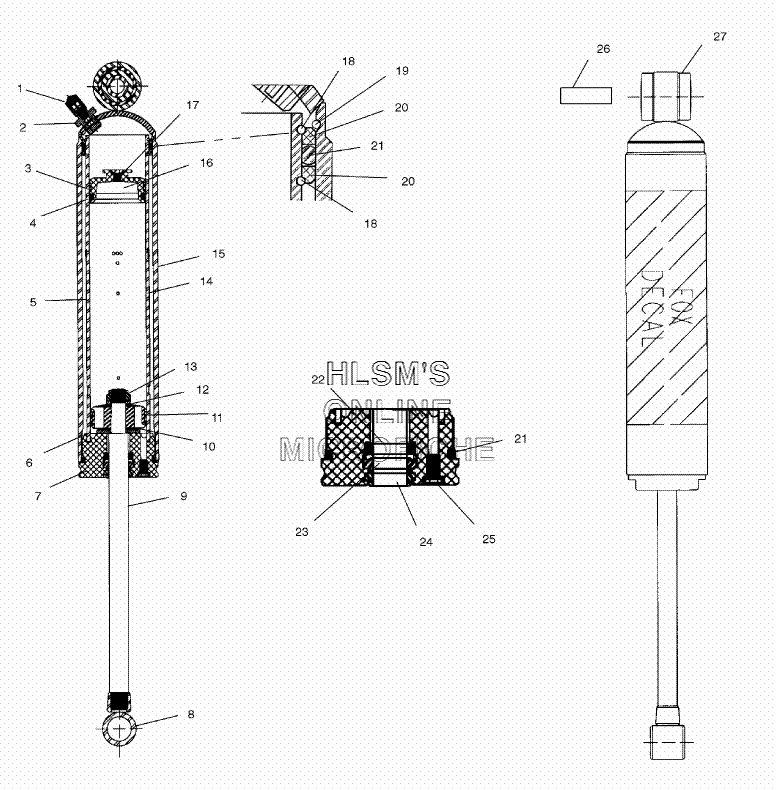

SUSPENSION - REAR TRACK для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
1A7041846 SHOCK (R/T, FOX, PPS)SHOCK (R/T, FOX, PPS)
-
11500210 CAP, SHRADER VALVECAP, SHRADER VALVE
-
21500206 AIR VALVE COMPLETEAIR VALVE COMPLETE
-
31500006 RING, PISTON, FLOATING, FOXRING, PISTON, FLOATING, FOX
-
41500003 O-RING, ENDCAP FOXO-RING, ENDCAP FOX
-
51500306 VALVE, CHECK (NBR DURO A 90)VALVE, CHECK (NBR DURO A 90)
-
61500459 O-RING (.070CSX1.489ID)O-RING (.070CSX1.489ID)
-
71500334 BEARING (W/P.S. GROOVE)BEARING (W/P.S. GROOVE)
-
81500302 EYELET (.88W 1.38TLG 808, 05, 002)EYELET (.88W 1.38TLG 808, 05, 002)
-
91500333 SHAFT (.5X8.35 TLG)SHAFT (.5X8.35 TLG)
-
101500017 PLATE (TOP OUT)PLATE (TOP OUT)
-
111500002 DAMPER, PISTON RING FOXDAMPER, PISTON RING FOX
-
121500015 BUSHING, BACKUPBUSHING, BACKUP
-
131500016 NUT, LOCKNUT, LOCK
-
141500331 BODY, ASSY. (INNER P.S.)BODY, ASSY. (INNER P.S.)
-
151500332 BODY, ASSY. (OUTER P.S.)BODY, ASSY. (OUTER P.S.)
-
161500187 PISTON, FLOATINGPISTON, FLOATING
-
171500161 SCREW/O, RING ASSY.SCREW/O, RING ASSY.
-
181500097 RING, RETAIN.(FOX), ATVRING, RETAIN.(FOX), ATV
-
191500236 RING, RETAININGRING, RETAINING
-
201500336 COLLAR, ALUMCOLLAR, ALUM
-
211500228 SEAL, O-RINGSEAL, O-RING
-
221500297 SEAL, Q, RING (.139CS 035, 00, 206)SEAL, Q, RING (.139CS 035, 00, 206)
-
231500266 U-CUP (4300 URETH, 036-01-006)U-CUP (4300 URETH, 036-01-006)
-
241500024 WIPER, CLR, OUTERWIPER, CLR, OUTER
-
251500295 SCREW (#10, 24X.375 800, 10, 000)SCREW (#10, 24X.375 800, 10, 000)
-
251500022 O, RING, DRUM OUTERO, RING, DRUM OUTER
-
261500311 SLEEVE (.56X.81X1.28)SLEEVE (.56X.81X1.28)
-
271500307 BUSHING (.35ILG, .63TLG)BUSHING (.35ILG, .63TLG)
