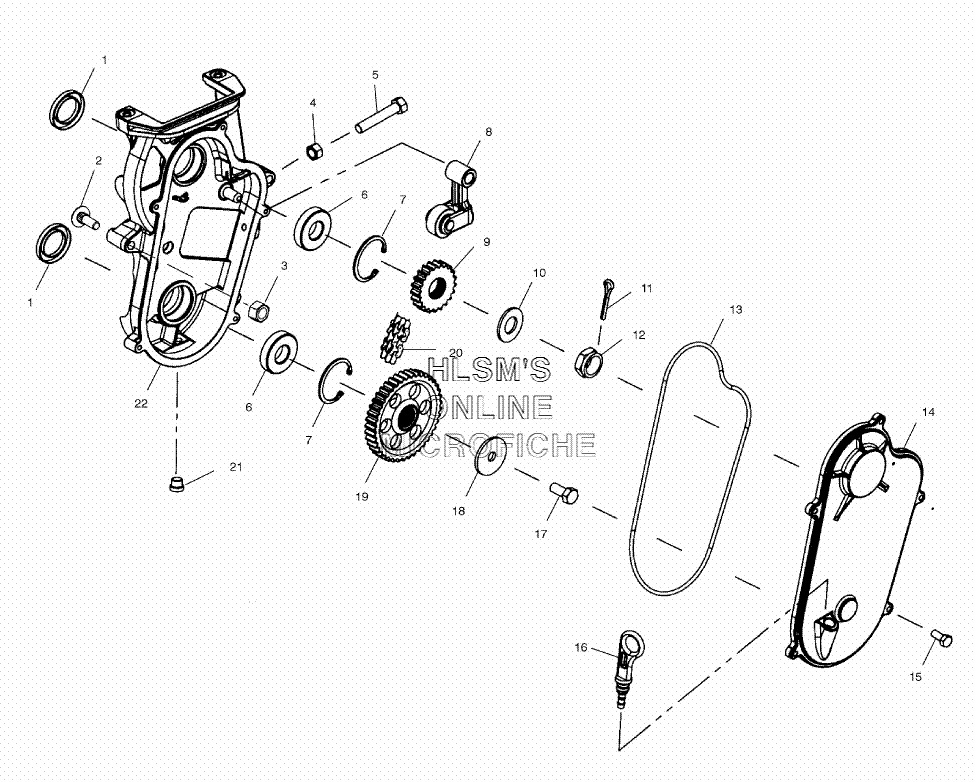

CHAINCASE ASSEMBLY для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515477 BOLTBOLT
-
37542451 NUT, NYLOCNUT, NYLOC
-
45132237 NUT, CHAIN ADJUSTER (3/8, 16)NUT, CHAIN ADJUSTER (3/8, 16)
-
57512470 SCREWSCREW
-
63514309 BEARING, BALLBEARING, BALL
-
77718406 RING, RETAININGRING, RETAINING
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
93221098 SPROCKET SPLINE (22 TEETH, 3/4W, HV, PM)SPROCKET SPLINE (22 TEETH, 3/4W, HV, PM)
-
107571620 WASHER, SLOTTEDWASHER, SLOTTED
-
117661401 COTTER PINCOTTER PIN
-
127542811 NUTNUT
-
135411497 GASKET, O-RING CHAINCASEGASKET, O-RING CHAINCASE
-
145132368 COVER, CHAINCASE (7.92 CD, ALUM)COVER, CHAINCASE (7.92 CD, ALUM)
-
157512242 SCREWSCREW
-
161332250 DIPSTICK ASSY. (W/MAGNET, EDGE)DIPSTICK ASSY. (W/MAGNET, EDGE)
-
177517979 SCREW (5/16, 18 3/4 HXHD/NYL, GR8, P)SCREW (5/16, 18 3/4 HXHD/NYL, GR8, P)
-
187571618 WASHERWASHER
-
193222099 SPROCKET SPLINE (40 TEETH, HYVO, PM)SPROCKET SPLINE (40 TEETH, HYVO, PM)
-
203221109 CHAIN (HYVO.74P, 3/4W)CHAIN (HYVO.74P, 3/4W)
-
217052115 PLUGPLUG
-
225132773 CHAINCASE (7.92 CD, ALUM)CHAINCASE (7.92 CD, ALUM)
