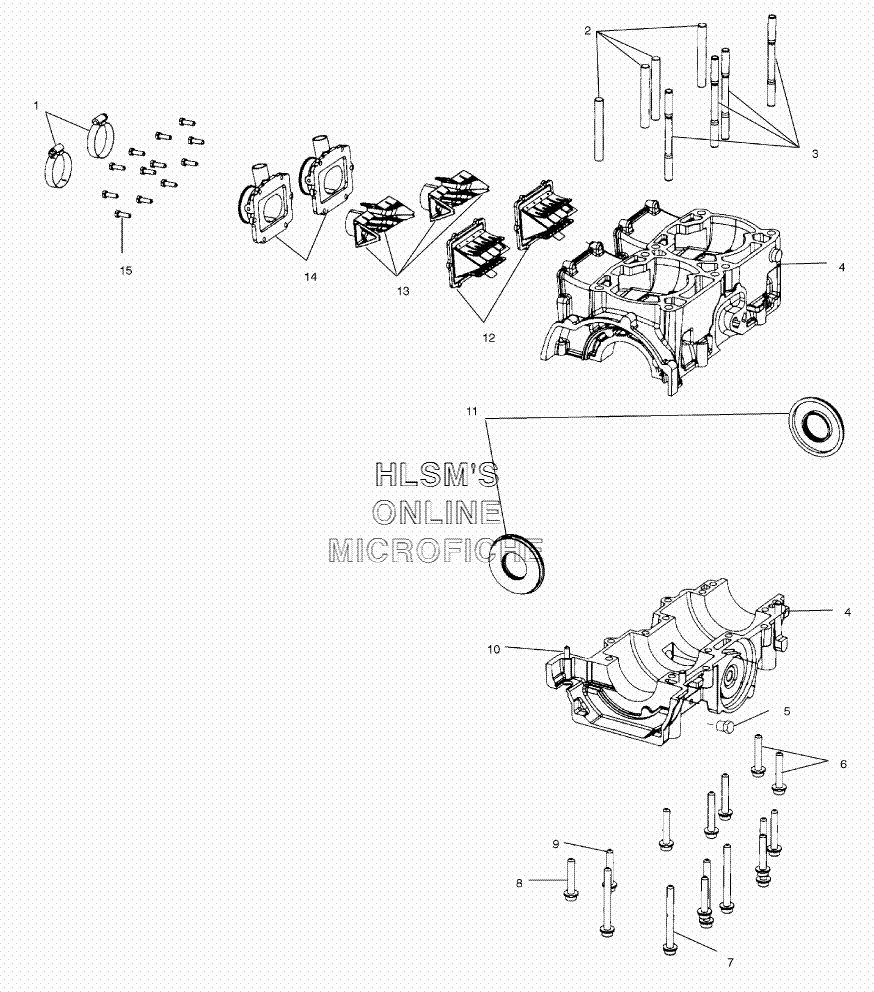

CRANKCASE ASSEMBLY для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
25132196 STUD, CYL. (81MM)STUD, CYL. (81MM)
-
35132197 STUD, CYL. (118MM)STUD, CYL. (118MM)
-
42201931 CRANKCASE KIT (1202176) [INCL. 2, 3, 5, 10]CRANKCASE KIT (1202176) [INCL. 2, 3, 5, 10]
-
57051529 PLUGPLUG
-
67517785 BOLT (M8X1.25X55)BOLT (M8X1.25X55)
-
77517784 BOLT (M8X1.25X80)BOLT (M8X1.25X80)
-
87516825 SCREWSCREW
-
97517786 BOLT (M8X1.25X45)BOLT (M8X1.25X45)
-
107663001 PIN, DOWELPIN, DOWEL
-
115411394 SEAL, FLANGEDSEAL, FLANGED
-
121201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
135432852 STUFFER, REED (75.5MM 38MM.CARB)STUFFER, REED (75.5MM 38MM.CARB)
-
141253217 ADAPTER, CARB (TM/RACK, 440 BASE)ADAPTER, CARB (TM/RACK, 440 BASE)
-
157516822 SCREWSCREW
