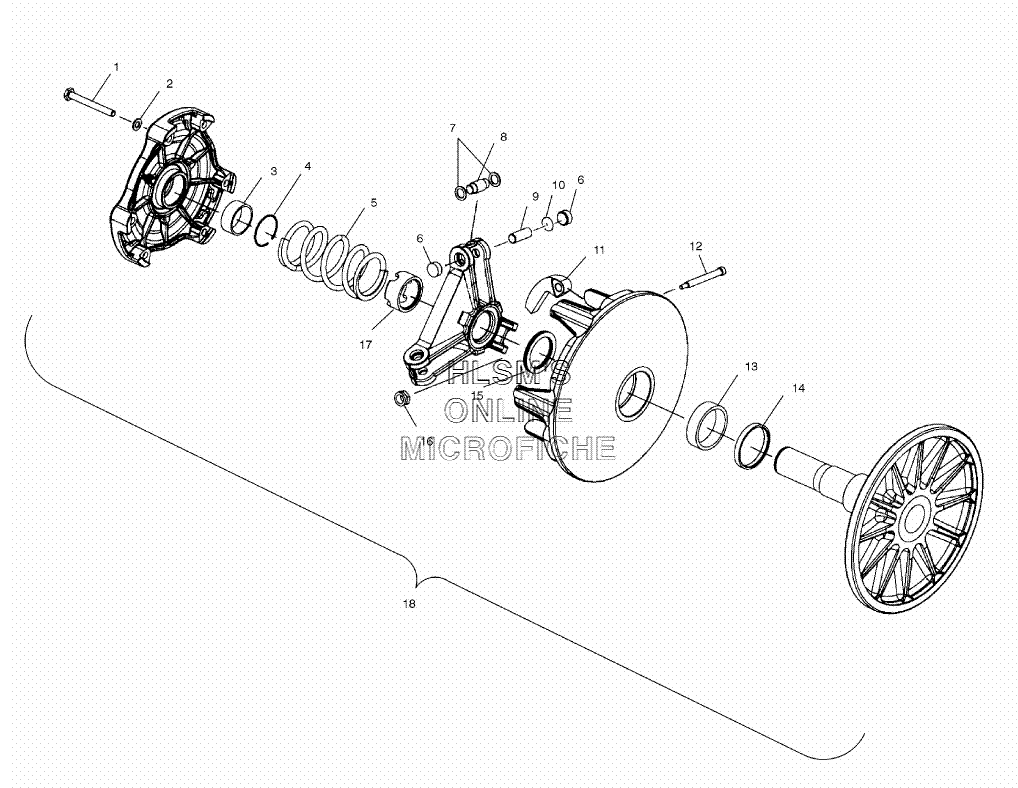

CLUTCH DRIVE (MANUAL START MODELS) для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING GARMAXCOVER, BEARING GARMAX
-
47710417 RING, RETAINING BOLTRING, RETAINING BOLT
-
57041781 SPRING, CLUTCH (DARK BLUE/WHT)SPRING, CLUTCH (DARK BLUE/WHT)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95133079 PIN, ROLLER (1'', SBN)PIN, ROLLER (1'', SBN)
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321685 WT/BUSH.ASSY., (10, 54)WT/BUSH.ASSY., (10, 54)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155210754 SPACER [.050MM]SPACER [.050MM]
-
155210753 SPACER [.032MM]SPACER [.032MM]
-
155242981 SPACER [.025MM]SPACER [.025MM]
-
155210752 SPACER [.020MM]SPACER [.020MM]
-
167541906 NUT FLEX LOCNUT FLEX LOC
-
175020425 NUT, JAMNUT, JAM
-
181321928 DRIVE CLUTCH ASSY., (BASIC, 114 W/B) [LESS 5, 11]DRIVE CLUTCH ASSY., (BASIC, 114 W/B) [LESS 5, 11]
