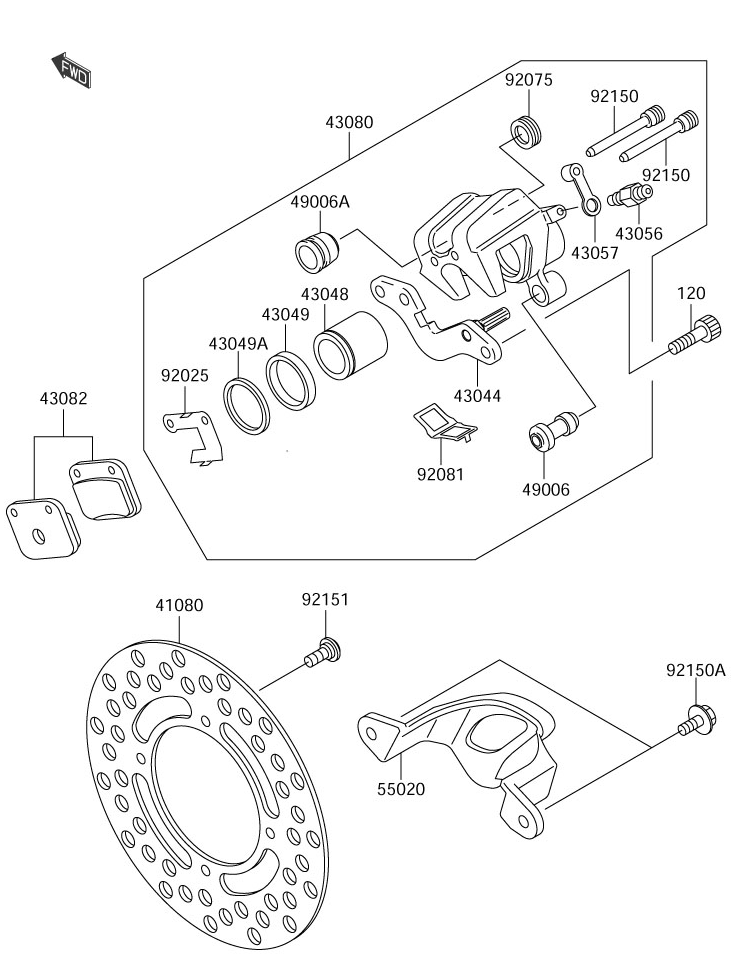

BRAKE - REAR CALIPER ASSY. для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
41080K4108-01470 DISCDISC
-
43044K4304-41076 HOLDER-COMP-CALIPER (REAR)HOLDER-COMP-CALIPER (REAR)
-
43048K4304-81090 PISTON CALIPERPISTON CALIPER
-
43049K4304-91060 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43049K4304-91061 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43056K4305-61056 BREATHER-BRAKEBREATHER-BRAKE
-
43057K4305-71001 CAP-BREATHERCAP-BREATHER
-
43080K4304-11711 CALIPER M SUBASSY. (REAR) (<-K4304-11711)CALIPER M SUBASSY. (REAR) (<-K4304-11711)
-
43082K4308-21241 PAD-ASSY. BRAKEPAD-ASSY. BRAKE
-
49006K4900-61088 BOOT, CALIPERBOOT, CALIPER
-
49006K4900-61089 BOOT, CALIPERBOOT, CALIPER
-
55020KK550-20170-7RZ GUARD, CALIPER (REAR/WHITE)GUARD, CALIPER (REAR/WHITE)
-
92025K9202-51817 SHIM, PADSHIM, PAD
-
92075K9207-51414 DAMPERDAMPER
-
92081K9208-11502 SPRING, PADSPRING, PAD
-
92150K9215-01144 BOLTBOLT
-
92150K9215-01505 BOLT, FLANGED (6X14)BOLT, FLANGED (6X14)
-
92151K9215-11799 BOLT, DISC PLATE, (6MM)BOLT, DISC PLATE, (6MM)
-
120KK120-P0816 BOLT-SOCKETBOLT-SOCKET
