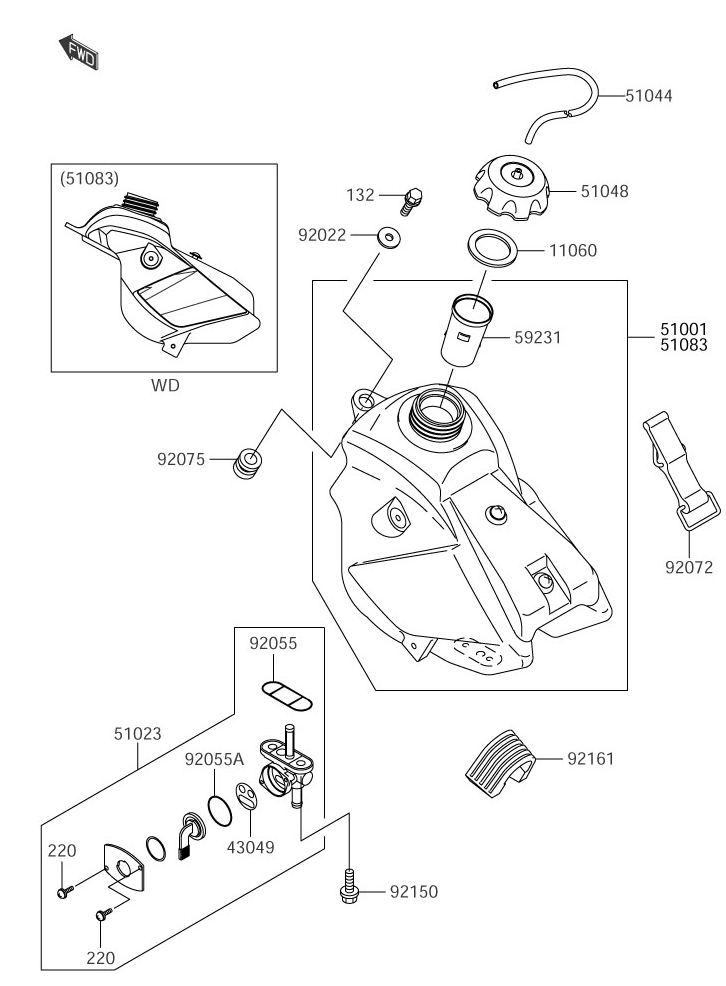

FUEL TANK для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
11060K1106-01340 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
43049K4304-91091 PACKING, TAP VALVEPACKING, TAP VALVE
-
51001KK510-01167-66Z TANK-COMP-FUEL (BLACK)TANK-COMP-FUEL (BLACK)
-
51023K5102-31339 TAP-ASSY., FUELTAP-ASSY., FUEL
-
51044K5104-41185 TUBE-ASSY.TUBE-ASSY.
-
51048K5104-81124 CAP-ASSY.-TANK, FUELCAP-ASSY.-TANK, FUEL
-
51083K5108-35100-267 TANK-COMP-FUEL (YELLOW)TANK-COMP-FUEL (YELLOW)
-
59231K5923-11096 FILLERFILLER
-
92022K9202-21690 WASHER (6.5X24X2)WASHER (6.5X24X2)
-
92055K9205-51348 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92055K9205-51419 RING-O, TAP LEVERRING-O, TAP LEVER
-
92072K9207-21229 BAND, FUEL TANKBAND, FUEL TANK
-
92075K9207-51787 DAMPERDAMPER
-
92150K9215-01599 BOLT (6X12)BOLT (6X12)
-
92161K9216-11077 DAMPER, FUEL TANK (REAR)DAMPER, FUEL TANK (REAR)
-
132KK132-G0614 BOLT-FLANGED (SMALL)BOLT-FLANGED (SMALL)
-
220KK220-B0308 SCREW-PAN-CROSSCREW-PAN-CROS
