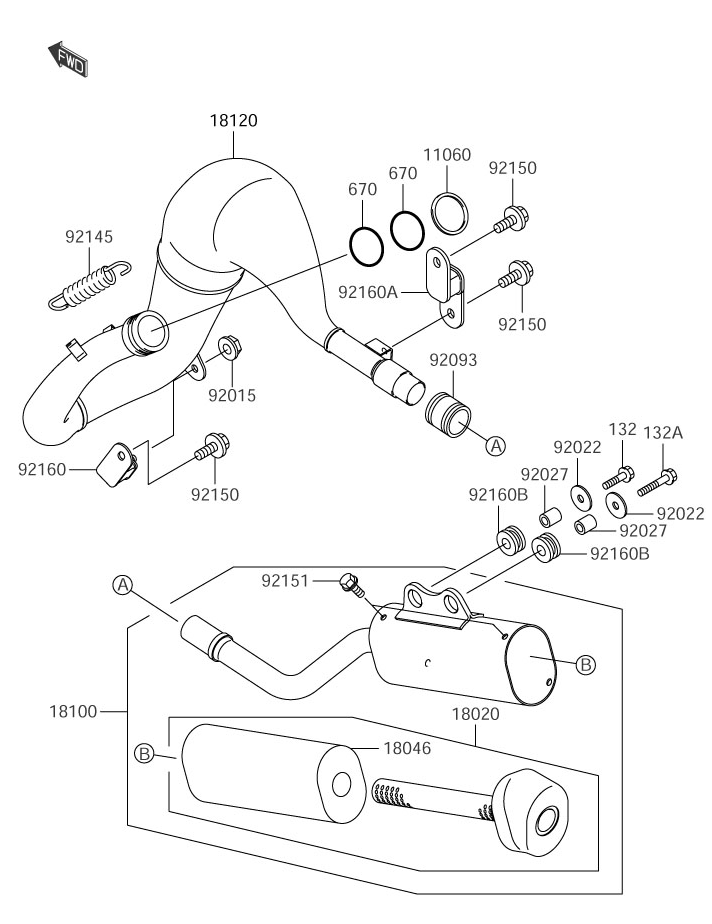

MUFFLER для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
11060K1106-01922 GASKET, EXHAUSTGASKET, EXHAUST
-
18020K1802-01284 BAFFLEBAFFLE
-
18046K1804-61587 WOOL, BAFFLEWOOL, BAFFLE
-
18100K1810-01092 BODY ASSY.-MUFFLERBODY ASSY.-MUFFLER
-
18120K1812-01116 CHAMBER, EXHAUSTCHAMBER, EXHAUST
-
92015K9201-51078 NUT, FLANGED, (6MM)NUT, FLANGED, (6MM)
-
92022KK920-22237 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
92027K9202-71210 COLLAR (6.8X10X11.5)COLLAR (6.8X10X11.5)
-
92093K9209-31511 SEALSEAL
-
92145K9214-51340 SPRING, EXHAUST CONNECTINGSPRING, EXHAUST CONNECTING
-
92150K9215-01435 BOLT, 6X12BOLT, 6X12
-
92151K9215-11822 BOLT, 6X10BOLT, 6X10
-
92160K9216-01176 DAMPER, MUFFLER (FRONT)DAMPER, MUFFLER (FRONT)
-
92160K9216-01201 DAMPER, MUFFLER (REAR)DAMPER, MUFFLER (REAR)
-
92160K9216-01913 DAMPER, MUFFLER FITTINGDAMPER, MUFFLER FITTING
-
132KK132-G0625 BOLT-FLANGED (SMALL)BOLT-FLANGED (SMALL)
-
132KK132-V0635 BOLT-FLANGED (SMALL)BOLT-FLANGED (SMALL)
-
670KK670-E3032 O-RING (32MM)O-RING (32MM)
