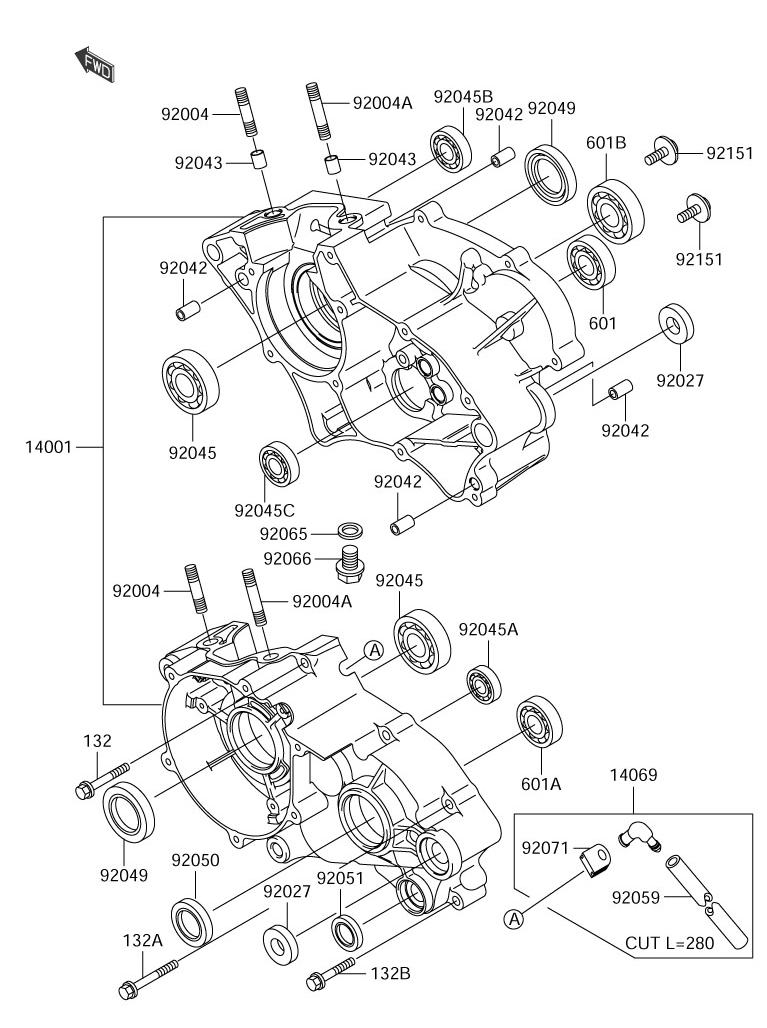

CRANKCASE для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
14001K1400-11318 SET-CRANKCASESET-CRANKCASE
-
14069K1406-91001 BREATHERBREATHER
-
92004K9200-41245 STUD, 8X28.5STUD, 8X28.5
-
92004K9200-41246 STUD, 8X37STUD, 8X37
-
92027K9202-71744 COLLAR, 12.1X26X6COLLAR, 12.1X26X6
-
92042KK920-42007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
92043K9204-31264 PIN, 8.2X10X14PIN, 8.2X10X14
-
92045K9204-51059 BEARING-BALL, R-6304C3BEARING-BALL, R-6304C3
-
92045K9204-51235 BEARING-BALL, 6001C3ML01BEARING-BALL, 6001C3ML01
-
92045K9204-51304 BEARING-BALL, 626MC3BEARING-BALL, 626MC3
-
92045K9204-51432 BEARING-BALL, 6805JRZBEARING-BALL, 6805JRZ
-
92049K9204-91188 SEAL-OIL, SD20407GSSEAL-OIL, SD20407GS
-
92050KK920-50013 SEAL-OIL, SC25376SEAL-OIL, SC25376
-
92051KK920-51005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
92059K9205-91939 TUBE, 6X9X1050TUBE, 6X9X1050
-
92065KK920-65058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
92066K9206-61437 PLUG, DRAINPLUG, DRAIN
-
92071KK920-71042 GROMMET, BREATHERGROMMET, BREATHER
-
92151K9215-11762 BOLT, 6X16BOLT, 6X16
-
132KK132-G0640 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132KK132-G0655 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132KK132-V0635 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
601KK601-A6002 BEARING-BALL, #6002BEARING-BALL, #6002
-
601KK601-A6004 BEARING-BALL, #6004BEARING-BALL, #6004
-
601KK601-A6203 BEARING-BALL, #6203BEARING-BALL, #6203
