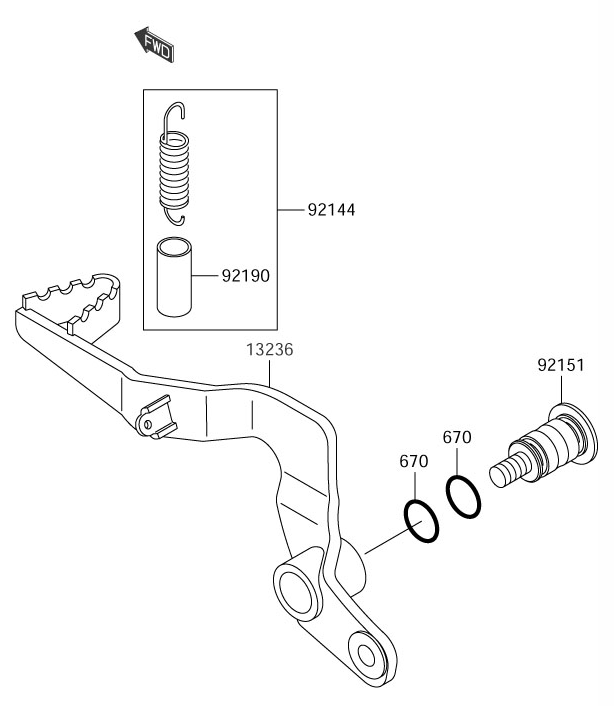

BRAKE - REAR PEDAL для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
13236K1323-61369 LEVER-COMP, BRAKE PEDAL, STEELLEVER-COMP, BRAKE PEDAL, STEEL
-
92144K9214-41752 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92151K9215-11572 BOLTBOLT
-
92190K9219-01488 TUBE, 13X16X25TUBE, 13X16X25
-
670KK670-B2012 O-RING, 12MMO-RING, 12MM
