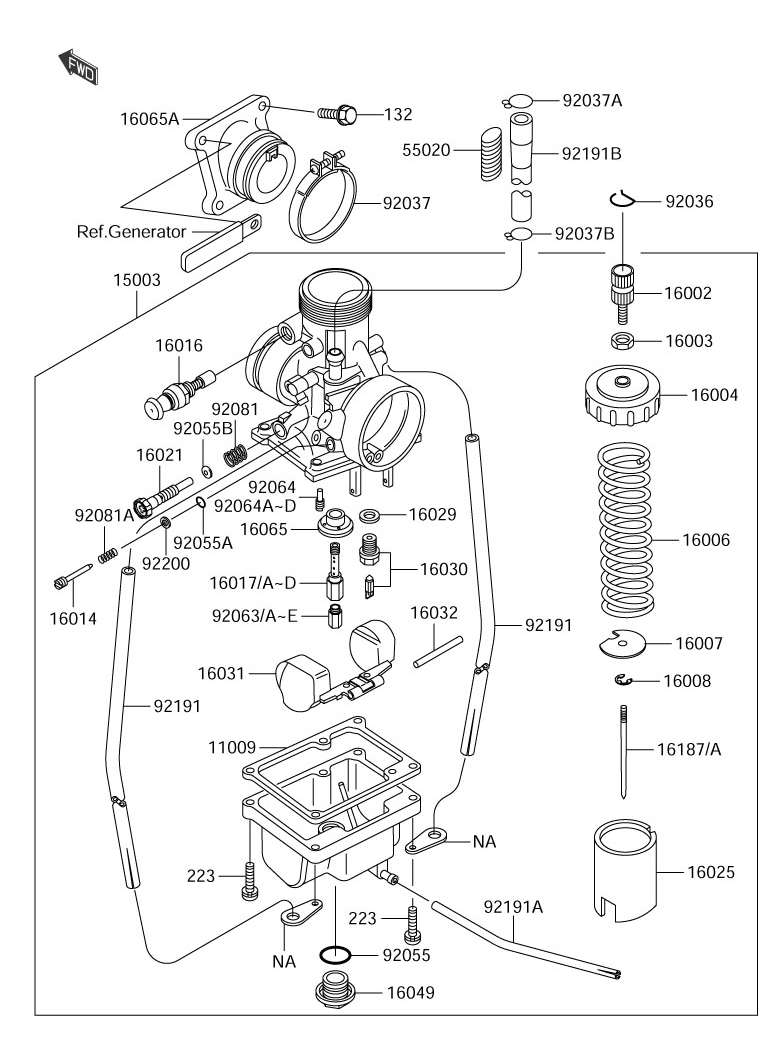

CARBURETOR для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91147 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
15003K1500-31669 CARBURETOR-ASSY.CARBURETOR-ASSY.
-
16002KK160-02011 ADJUSTER-CABLEADJUSTER-CABLE
-
16003KK160-03006 NUT, ADJUST LOCKNUT, ADJUST LOCK
-
16004KK160-04025 CAP-CHAMBERCAP-CHAMBER
-
16006KK160-06023 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
16007KK160-07023 SEAT-SPRING, THROTTLE VALVESEAT-SPRING, THROTTLE VALVE
-
16008K1600-81010 CLAMPCLAMP
-
16014K1601-41116 SCREW-PILOT AIRSCREW-PILOT AIR
-
16016K1601-61052 PLUNGER, STARTERPLUNGER, STARTER
-
16017K1601-71412 JET-NEEDLE, N-8 (OPT)JET-NEEDLE, N-8 (OPT)
-
16017K1601-71413 JET-NEEDLE, O-0 (STD)JET-NEEDLE, O-0 (STD)
-
16017K1601-71414 JET-NEEDLE, O-2 (OPT)JET-NEEDLE, O-2 (OPT)
-
16017K1601-71415 JET-NEEDLE, O-4 (OPT)JET-NEEDLE, O-4 (OPT)
-
16017K1601-71418 JET-NEEDLE, N-6 (OPT)JET-NEEDLE, N-6 (OPT)
-
16021K1602-11224 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
16025K1602-51040 VALVE-THROTTLE, CA1.5VALVE-THROTTLE, CA1.5
-
16029KK160-29004 GASKET, FLOAT VALVE SEATGASKET, FLOAT VALVE SEAT
-
16030K1603-01095 VALVE-FLOAT, #2.5VALVE-FLOAT, #2.5
-
16031K1603-11005 FLOATFLOAT
-
16032KK160-32008 PIN, FLOATPIN, FLOAT
-
16049K1604-91001 COVER-MAIN JETCOVER-MAIN JET
-
16065K1606-51020 HOLDER, JET NEEDLEHOLDER, JET NEEDLE
-
16065K1606-51366 HOLDER-CARBURETORHOLDER-CARBURETOR
-
16187K1618-71226 NEEDLE-JET, 5GSP68 (STD)NEEDLE-JET, 5GSP68 (STD)
-
16187K1618-71227 NEEDLE-JET, 5GSP69 (OPT)NEEDLE-JET, 5GSP69 (OPT)
-
55020K5502-01787 GUARD, FUEL TUBEGUARD, FUEL TUBE
-
92036KK920-36018 RING-SNAPRING-SNAP
-
92037K9203-71305 CLAMPCLAMP
-
92037KK920-37147 CLAMP, TUBECLAMP, TUBE
-
92037K9203-71712 CLAMPCLAMP
-
92055K9205-51061 RING-O, MAIN JET COVERRING-O, MAIN JET COVER
-
92055K9205-51658 RING-O, AIR SCREWRING-O, AIR SCREW
-
92055K9205-52068 RING-ORING-O
-
92063KK920-63019 JET-MAIN, #170 (OPT)JET-MAIN, #170 (OPT)
-
92063KK920-63020 JET-MAIN, #180 (OPT)JET-MAIN, #180 (OPT)
-
92063KK920-63021 JET-MAIN, #190 (STD)JET-MAIN, #190 (STD)
-
92063KK920-63022 JET-MAIN, #200 (OPT)JET-MAIN, #200 (OPT)
-
92063KK920-63023 JET-MAIN, #210 (OPT)JET-MAIN, #210 (OPT)
-
92063KK920-63025 JET-MAIN, #230 (OPT)JET-MAIN, #230 (OPT)
-
92064KK920-64022 JET-PILOT, #30 (OPT)JET-PILOT, #30 (OPT)
-
92064KK920-64040 JET-PILOT, #22.5 (OPT)JET-PILOT, #22.5 (OPT)
-
92064K9206-41020 JET-PILOT, #A25 (STD)JET-PILOT, #A25 (STD)
-
92064K9206-41033 JET-PILOT, #27.5 (OPT)JET-PILOT, #27.5 (OPT)
-
92064K9206-41043 JET-PILOT, #20 (OPT)JET-PILOT, #20 (OPT)
-
92081K9208-11152 SPRING, THROTTLE ADJUSTSPRING, THROTTLE ADJUST
-
92081K9208-11153 SPRING, STOP SCREWSPRING, STOP SCREW
-
92191K9219-11495 TUBE (3X5X280)TUBE (3X5X280)
-
92191K9219-11496 TUBE (3X5X220)TUBE (3X5X220)
-
92191K9219-11611 TUBETUBE
-
92200K9220-01564 WASHER, PILOT AIR SCREWWASHER, PILOT AIR SCREW
-
132KK132-G0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
223KK223-B0416 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
