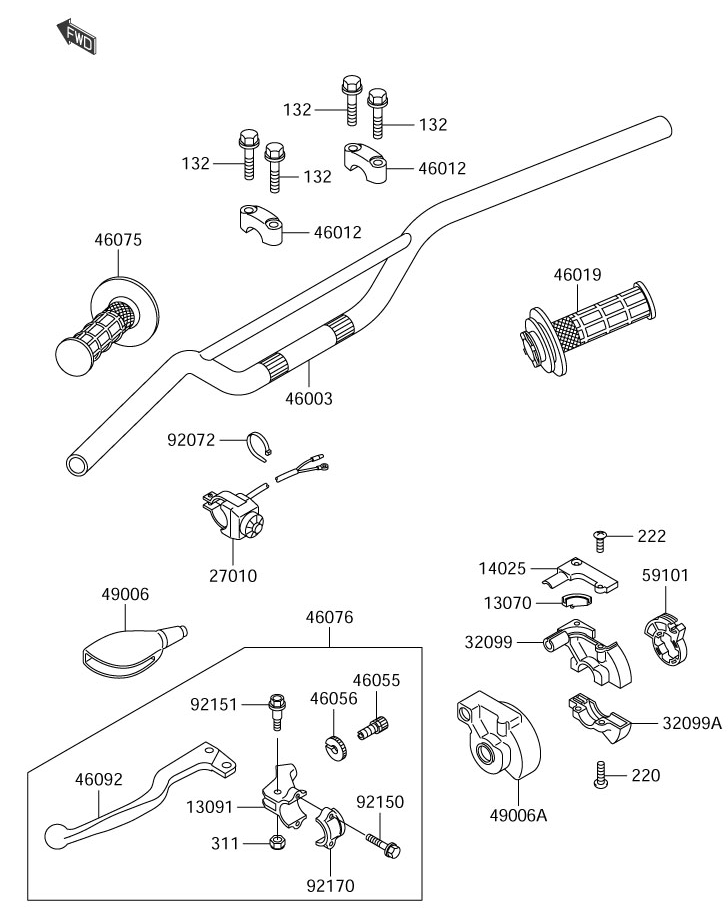

HANDLEBAR W/ SWITCHES - LEVERS для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
13070K1307-01074 GUIDE, THROTTLEGUIDE, THROTTLE
-
13091K1309-11728 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
14025K1402-51646 COVER, THROTTLE CASE UPPCOVER, THROTTLE CASE UPP
-
27010K2701-01415 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
32099K3209-91036 CASE, THROTTLE UPPCASE, THROTTLE UPP
-
32099K3209-91044 CASE, THROTTLE LWRCASE, THROTTLE LWR
-
46003KK460-03157-7CE HANDLE, (SILVER)HANDLE, (SILVER)
-
46012K4601-21191 HOLDER-HANDLE, UPPHOLDER-HANDLE, UPP
-
46019K4601-91054 GRIP-ASSY., THROTTLEGRIP-ASSY., THROTTLE
-
46055KK460-55003 SCREW, CABLE ADJUST (8MM)SCREW, CABLE ADJUST (8MM)
-
46056KK460-56005 NUT, CABLE ADJUST LOCK (8MM)NUT, CABLE ADJUST LOCK (8MM)
-
46075K4607-51024 GRIP, (LEFT)GRIP, (LEFT)
-
46076K4607-61241 LEVER-ASSY.-GRIP, CLUTCH (<-K4607-61202)LEVER-ASSY.-GRIP, CLUTCH (<-K4607-61202)
-
46092K4609-21165 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
49006K4900-61017 BOOT, LEVER HOLDERBOOT, LEVER HOLDER
-
49006K4900-61097 BOOT, THROTTLE CASEBOOT, THROTTLE CASE
-
59101K5910-11110 REEL, THROTTLEREEL, THROTTLE
-
92072KK920-72030 BAND, L=123BAND, L=123
-
92150K9215-01474 BOLTBOLT
-
92151K9215-11103 BOLT, LEVER SET (5MM)BOLT, LEVER SET (5MM)
-
92170K9217-01226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
132KK132-G0830 BOLT-FLANGED (SMALL)BOLT-FLANGED (SMALL)
-
220KK220-C0518 SCREW-PAN-CROS (5X18)SCREW-PAN-CROS (5X18)
-
222KK222-E0412 SCREW-CSK-RD-CROSSCREW-CSK-RD-CROS
-
311KK311-B0500 NUT-HEXNUT-HEX
