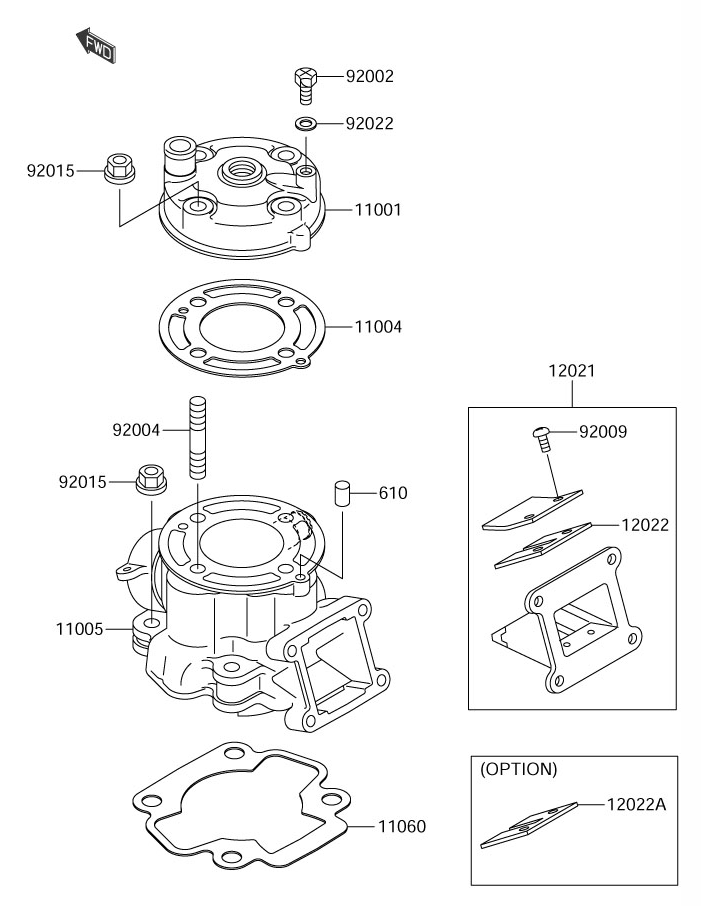

CYLINDER HEAD W/ CYLINDER для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
11001K1100-11516 HEAD, CYLINDERHEAD, CYLINDER
-
11004K1100-41346 GASKET, HEADGASKET, HEAD
-
11005K1100-51973 CYLINDER, ENGINECYLINDER, ENGINE
-
11060K1106-01921 GASKET, CYLINDER BASE (T=0.37)GASKET, CYLINDER BASE (T=0.37)
-
12021K1202-11015 VALVE-ASSY.-REEDVALVE-ASSY.-REED
-
12022K1202-21013 VALVE-REED, T=0.42VALVE-REED, T=0.42
-
12022K1202-21087 VALVE-REED, T=0.37, CARBON (OPT)VALVE-REED, T=0.37, CARBON (OPT)
-
92002K9200-21222 BOLT, 6X10BOLT, 6X10
-
92004K9200-41069 STUD, 8X30STUD, 8X30
-
92009K9200-91014 SCREW, REED VALVESCREW, REED VALVE
-
92015K9201-51143 NUT (8MM)NUT (8MM)
-
92022KK920-22304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
610KK610-A0408 ROLLER, 4X8ROLLER, 4X8
