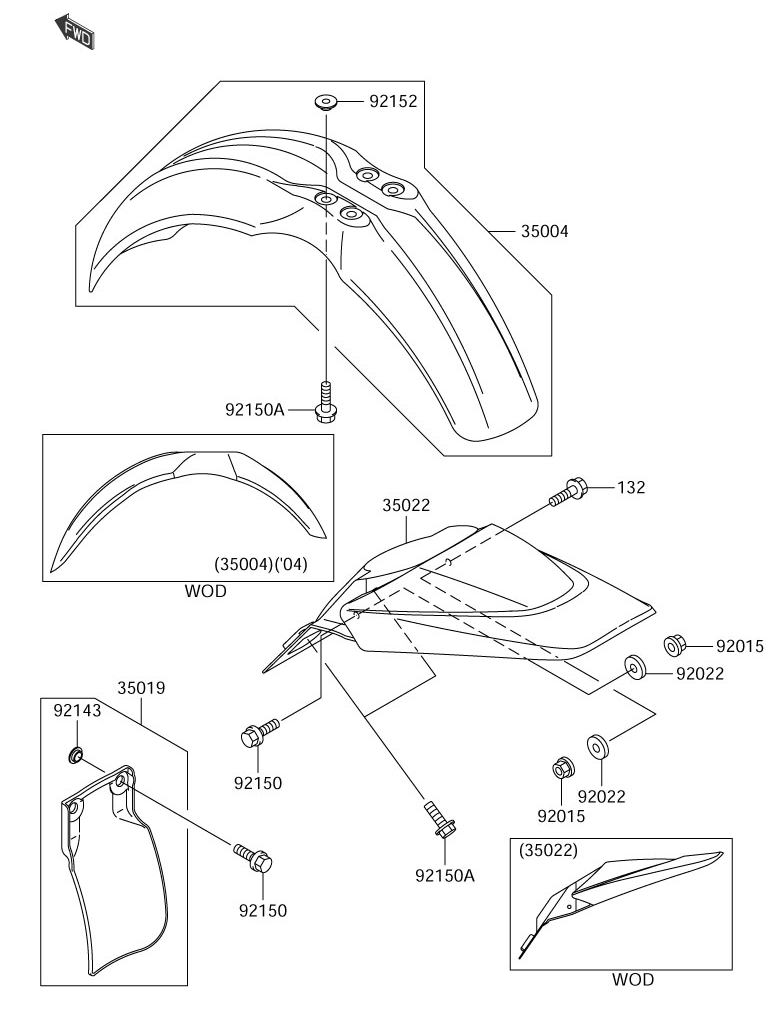

FENDER - FRONT / REAR для Suzuki RM65K3 - 2003 года выпуска
-
№АртикулНазвание
-
35004K3500-41416-267 FENDER-(FRONT/YELLOW)FENDER-(FRONT/YELLOW)
-
35019KK350-19139-5RZ FLAP, (REAR) FENDER (WHITE)FLAP, (REAR) FENDER (WHITE)
-
35022K3502-21342-267 FENDER-COMP-(REAR/YELLOW)FENDER-COMP-(REAR/YELLOW)
-
92015K9201-51078 NUT, FLANGED, (6MM)NUT, FLANGED, (6MM)
-
92022KK920-22125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92143K9214-31196 COLLARCOLLAR
-
92150K9215-01506 BOLT, FLANGED (6X16)BOLT, FLANGED (6X16)
-
92150K9215-01892 BOLT, 6X20BOLT, 6X20
-
92152K9215-21255 COLLARCOLLAR
-
132KK132-G0625 BOLT-FLANGED (SMALL)BOLT-FLANGED (SMALL)
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER ASSY.
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER ASSY.
- BRAKE - REAR MASTER CYLINDER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- DECALS
- ELECTRICAL - GENERATOR
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING
- • FENDER - FRONT / REAR
- FOOTREST ASSY.
- FRAME
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK
- GEAR SHIFTER
- HANDLEBAR - CABLE
- HANDLEBAR W/ SWITCHES - LEVERS
- HUB - FRONT
- HUB - REAR
- MUFFLER
- NUMBER PLATE
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND
- STARTER - KICK
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TOOLS
- TRANSMISSION
