2ND AIR для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-

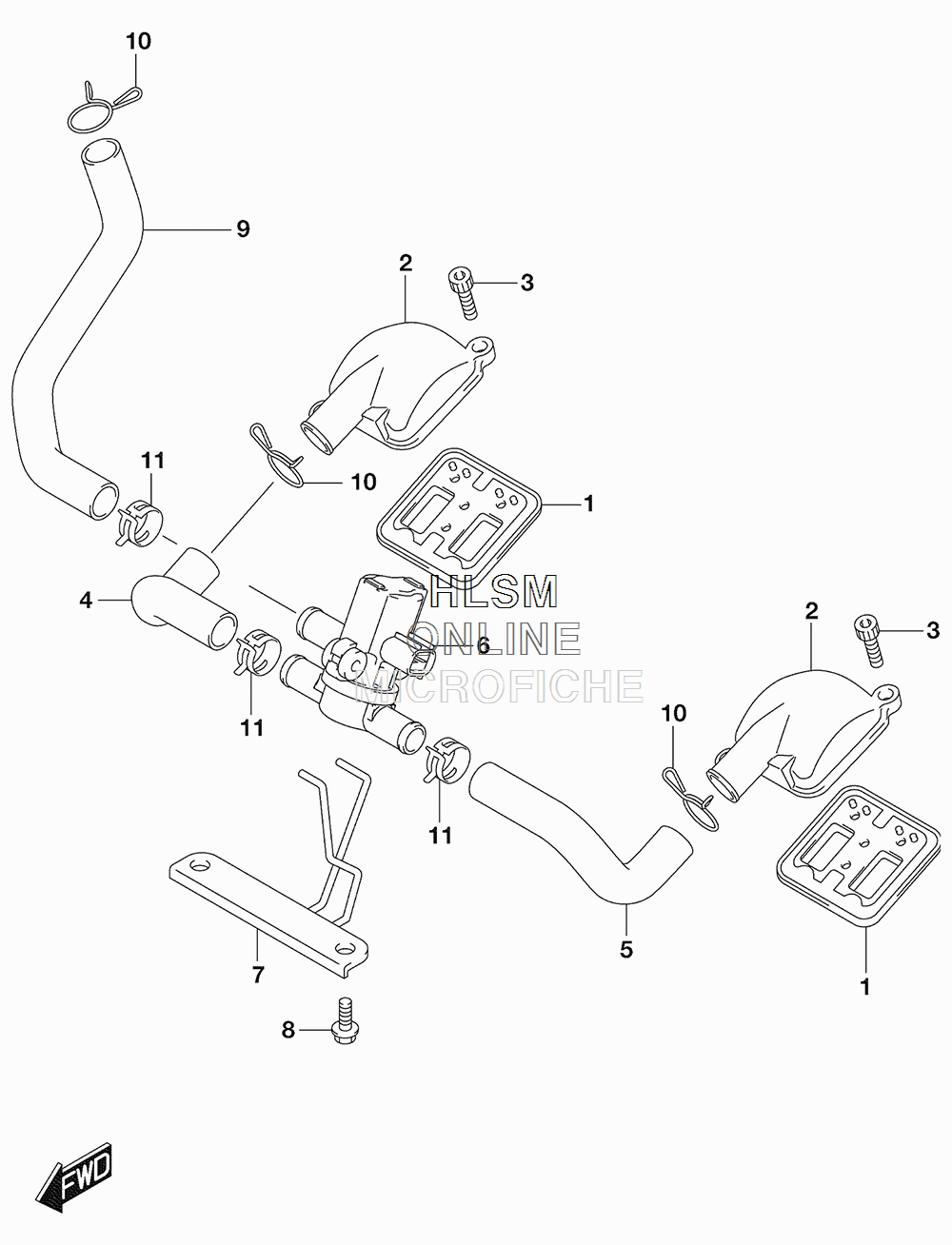

№АртикулНазвание
-
118450-35F30 VALVE ASSY, 2ND AIR REEDVALVE ASSY, 2ND AIR REED
-
218531-15H00 COVERCOVER
-
309106-06073 BOLT (6X16)BOLT (6X16)
-
418461-15H00 HOSE, 2ND AIR VALVE RIGHT HANDHOSE, 2ND AIR VALVE RIGHT HAND
-
518471-15H00 HOSE, 2ND AIR VALVE LEFT HANDHOSE, 2ND AIR VALVE LEFT HAND
-
618510-29G31 VALVE ASSY, AIR CUTVALVE ASSY, AIR CUT
-
718610-15H00 BRACKETBRACKET
-
809103-06283 BOLT (6X16)BOLT (6X16)
-
918711-15H00 HOSE, 2ND AIR CLEANERHOSE, 2ND AIR CLEANER
-
1009401-17201 CLIPCLIP
-
1109401-17401 CLIPCLIP
