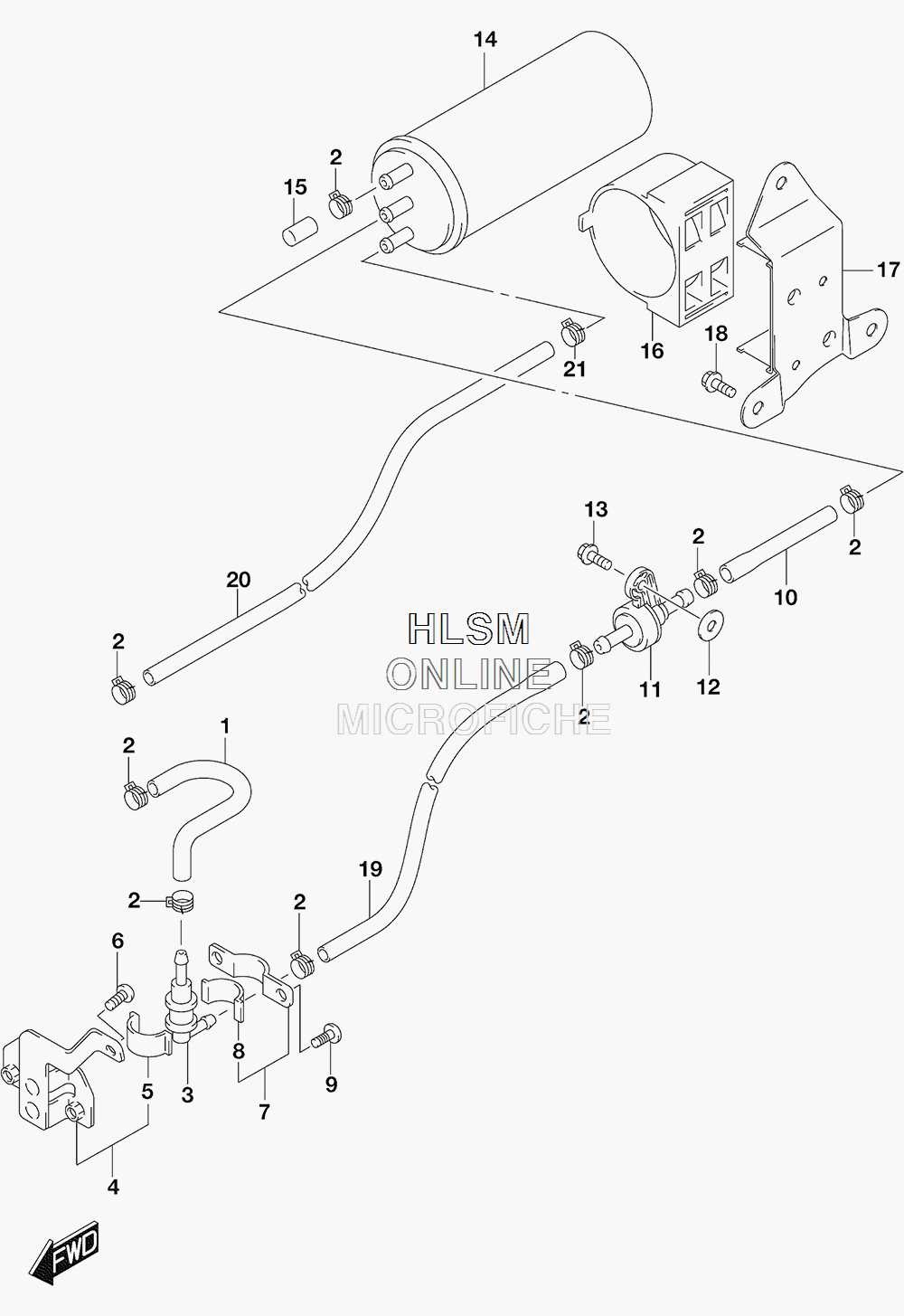

EVAP SYSTEM (CALIFORNIA ONLY) для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
144434-15H00 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
444890-24F00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
544894-24A00 CUSHIONCUSHION
-
602142-0610B SCREWSCREW
-
744892-24A00 PLATE, VALVE NO.2PLATE, VALVE NO.2
-
844894-24A00 CUSHIONCUSHION
-
902142-0408B SCREWSCREW
-
1044435-15H10 HOSE, BREATHER VALVE AND 2 WAYHOSE, BREATHER VALVE AND 2 WAY
-
1144240-24F00 VALVE, 2 WAY BRTHR AND CANISTERVALVE, 2 WAY BRTHR AND CANISTER
-
1209160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1301550-0616B BOLTBOLT
-
1417210-15H00 CANISTERCANISTER
-
1509251-07005 CAPCAP
-
1644883-06G00 CUSHION, CANISTERCUSHION, CANISTER
-
1744880-15H00 BRACKET, CANISTERBRACKET, CANISTER
-
1801550-0612B BOLTBOLT
-
1944437-15H10 HOSE, CANISTER AND 2 WAY VALVEHOSE, CANISTER AND 2 WAY VALVE
-
2009359-54113-700 HOSEHOSE
-
2109401-12404 CLIPCLIP
