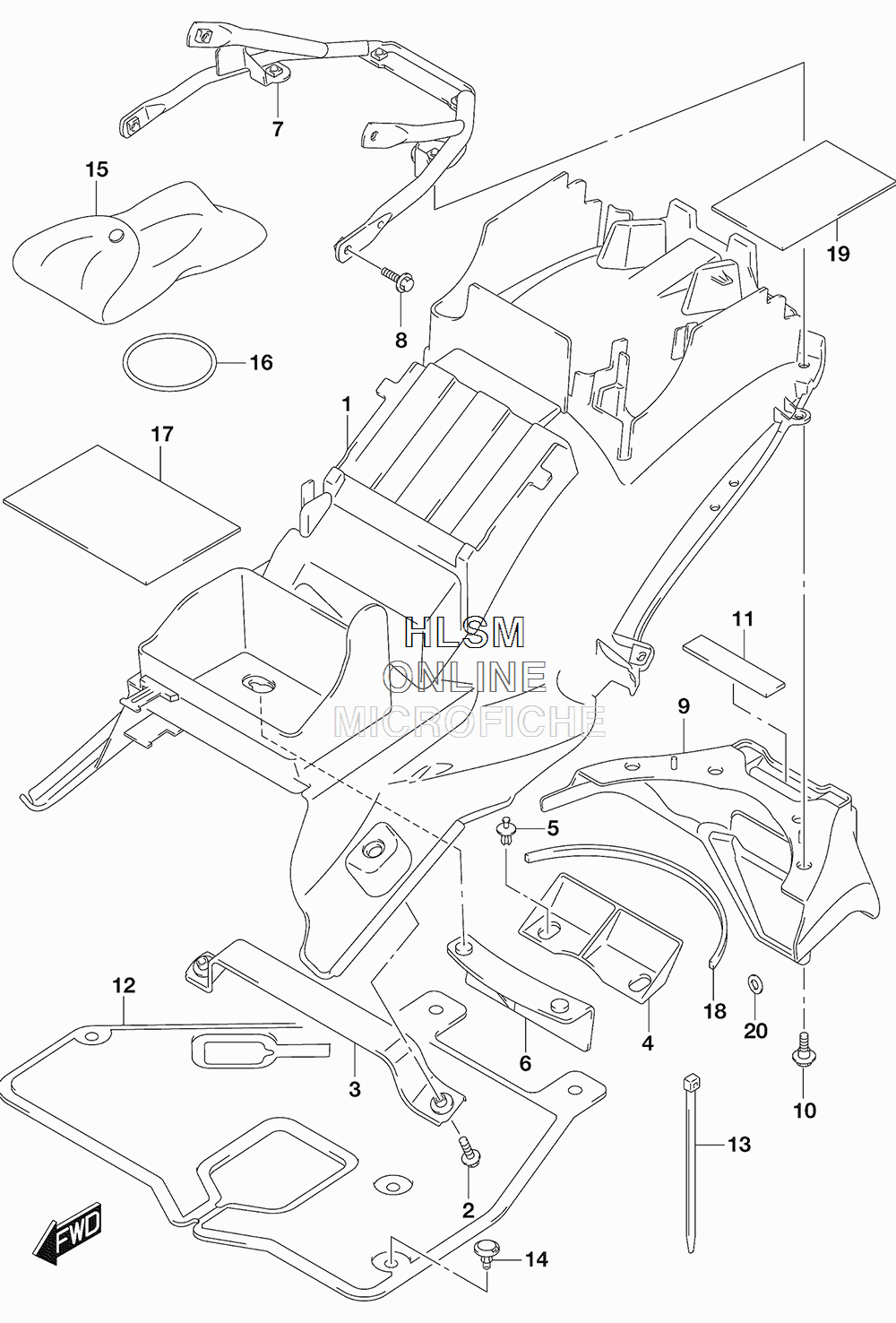

FENDER - REAR для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
163111-15H00-291 FENDER, REAR FRONT (BLACK)FENDER, REAR FRONT (BLACK)
-
201550-0616A BOLTBOLT
-
363130-15H00 BRACKET, FRONTBRACKET, FRONT
-
463411-24F00 MUDGUARD, REARMUDGUARD, REAR
-
509409-07333 CLIPCLIP
-
663421-24F00 MUDGUARD, REAR UPPERMUDGUARD, REAR UPPER
-
763120-15H00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
801550-0616A BOLTBOLT
-
963112-15H00-291 FENDER, REAR REAR (BLACK)FENDER, REAR REAR (BLACK)
-
1009111-06099 BOLT (6X16)BOLT (6X16)
-
1133652-49000 CUSHIONCUSHION
-
1247851-15H00 SHIELD, INNERSHIELD, INNER
-
1309407-10403 CLAMP (L:95)CLAMP (L:95)
-
1494479-35F00 CLIPCLIP
-
1509800-21056 TOOL ASSYTOOL ASSY
-
1609280-57003 O RING (D:3.5,ID:56.5)O RING (D:3.5,ID:56.5)
-
1763113-15H00 CUSHION, FENDERCUSHION, FENDER
-
1863192-16GA0 CUSHION, REAR FENDER REAR NO.2CUSHION, REAR FENDER REAR NO.2
-
1963114-15H00 CUSHION, TOOL BAGCUSHION, TOOL BAG
-
2008322-0106B WASHERWASHER
