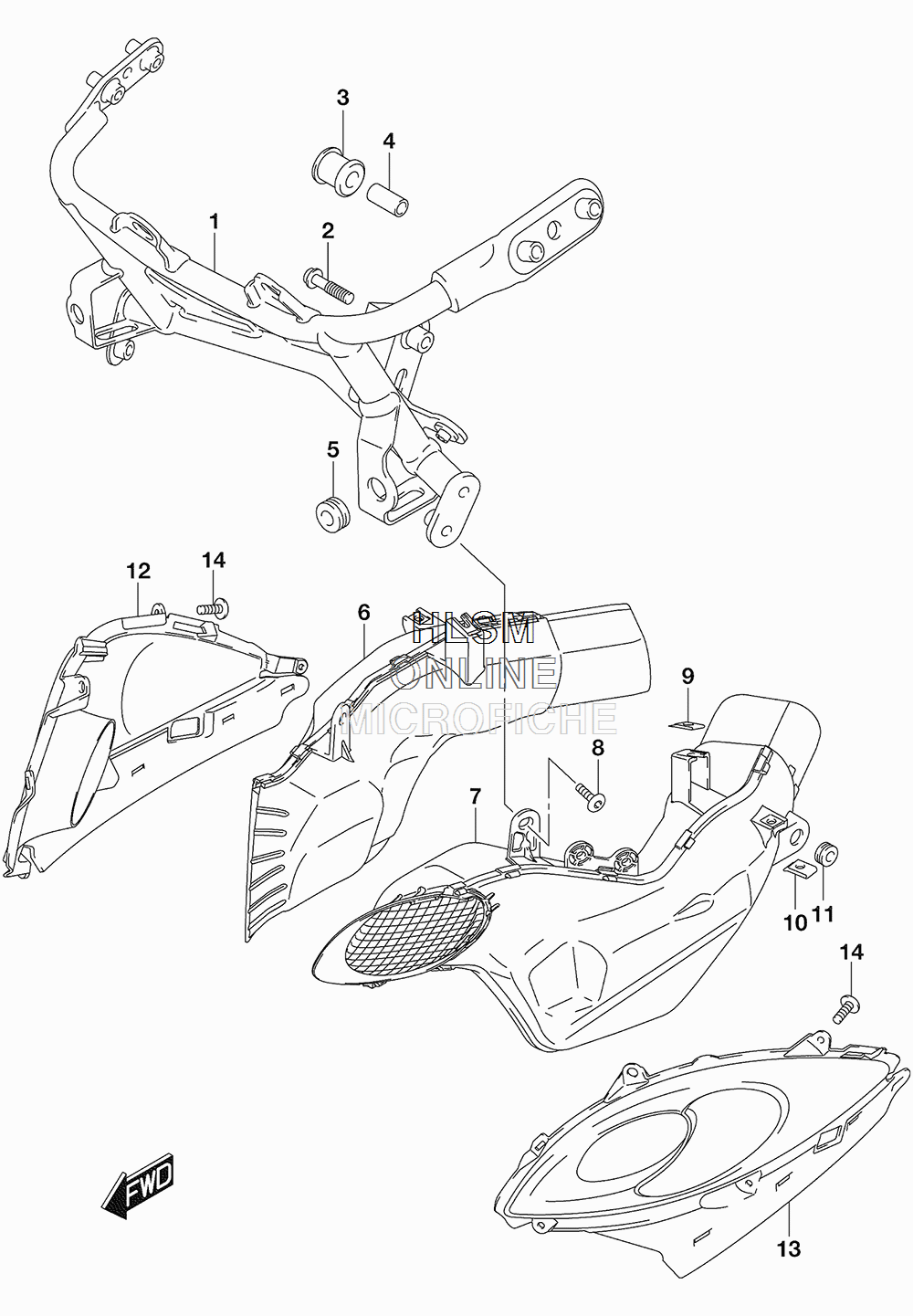

AIR INTAKE для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
194510-15H00 BRACE, COWLINGBRACE, COWLING
-
209103-08367 BOLT (8X40)BOLT (8X40)
-
394541-41C00 CUSHION, UPPERCUSHION, UPPER
-
409180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
-
509320-08028 CUSHIONCUSHION
-
694420-15H01 PIPE, INTAKE RIGHT HANDPIPE, INTAKE RIGHT HAND
-
794430-15H01 PIPE, INTAKE LEFT HANDPIPE, INTAKE LEFT HAND
-
894423-15H00 SCREWSCREW
-
994484-24F00 NUT, METER PANELNUT, METER PANEL
-
1009148-05038 NUTNUT
-
1109320-08028 CUSHIONCUSHION
-
1294671-15H00-RB5 COVER, INTAKE RIGHT HAND (WHITE) (FOR AA3)COVER, INTAKE RIGHT HAND (WHITE) (FOR AA3)
-
1294671-15H00-YKY COVER, INTAKE RIGHT HAND (BLUE) (FOR ARA)COVER, INTAKE RIGHT HAND (BLUE) (FOR ARA)
-
1294671-15H00-YVB COVER, INTAKE RIGHT HAND (BLACK) (FOR ASU)COVER, INTAKE RIGHT HAND (BLACK) (FOR ASU)
-
1394681-15H00-RB5 COVER, INTAKE LEFT HAND (WHITE) (FOR AA3)COVER, INTAKE LEFT HAND (WHITE) (FOR AA3)
-
1394681-15H00-YKY COVER, INTAKE LEFT HAND (BLUE) (FOR ARA)COVER, INTAKE LEFT HAND (BLUE) (FOR ARA)
-
1394681-15H00-YVB COVER, INTAKE LEFT HAND (BLACK) (FOR ASU)COVER, INTAKE LEFT HAND (BLACK) (FOR ASU)
-
1409132-05053 SCREW (5X16)SCREW (5X16)
